Parker AC10 series User Manual

13-9 The Default Applications
AC10 Inverter
This Application mimics the operation of a motorised potentiometer. Digital inputs allow the
set-point to be increased and decreased between limits. The Application is sometimes referred
to as motorised Potentiometer.
Parameters Setting:
F228 = 4
F106 = 2
F112 = 0.00
F113 = 0.00
F224 = 1
F203 = 0
F208 = 1
F316 = 15
F317 = 13
F318 = 14
F319 = 54

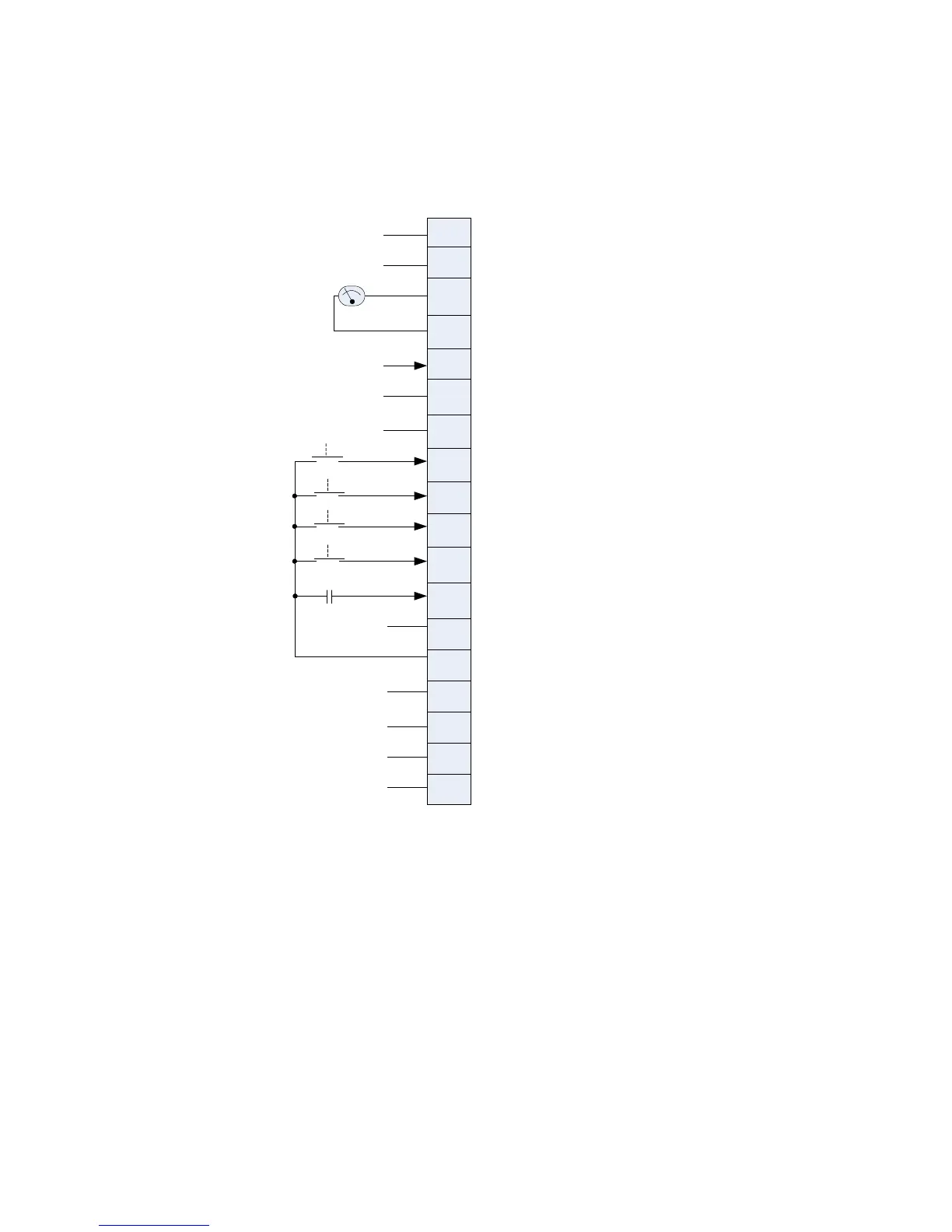

Coast stop
1
2
3
5
6
4
7
8
9
10
11
12
13
14
15
16
17
18
TA
TB
TC
1DO
24V
CM
DI1
DI2
DI3
DI4
DI5
10V
1AI
2AI
GND
1AO
A +
B -
Run forward
not used
not used
Analog output
F431=0 ,
running frequency is output
.
GND
10V
Coast stop
Reset
Run forward
CM
24V
not used
Relay output
F300=1 , inverter outputs fault signal.
Lower input
Raise input
Reset
Lower input
Raise input
not used
not used
TC-Hydraulik - Rsdorfer Str. 8 - 25746 Heide - Lars Lornsen - T: +49 481 909 - 34 - l.lornsen@tc-hydraulik.de - www.tc-hydraulik.de

Parker AC10 series Specifications

General

Overload Capacity	150% for 60 seconds
Analog Inputs	2
Analog Outputs	1
Communication Options	Modbus RTU
Protection Rating	IP20
Input Voltage	200-240VAC, 380-480VAC, 500-575VAC, 600VAC, 690VAC
Digital Outputs	2
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Braking	Built-in dynamic braking
