Parker AC10 series User Manual

9-14 Function Parameters
AC10 Inverter
F208
Terminal two-line/three-line
operation control
Setting range:
0: No function
1: Two-line operation mode 1;
2: Two-line operation mode 2;
3: three-line operation mode 1;
4: three-line operation mode 2;
5: start/stop controlled by direction pulse
Mfr’s value: 0
When selecting two-line type or three-line type), F200, F201 and F202 are invalid.
Five modes are available for terminal operation control.
Note:
In case of stage speed control, set F208 to 0. If F208 ≠0 (when selecting two-line type or
three-line type), F200, F201 and F202 are invalid.
“FWD”, “REV” and “X” are three terminals designated in programming DI1～DI5.

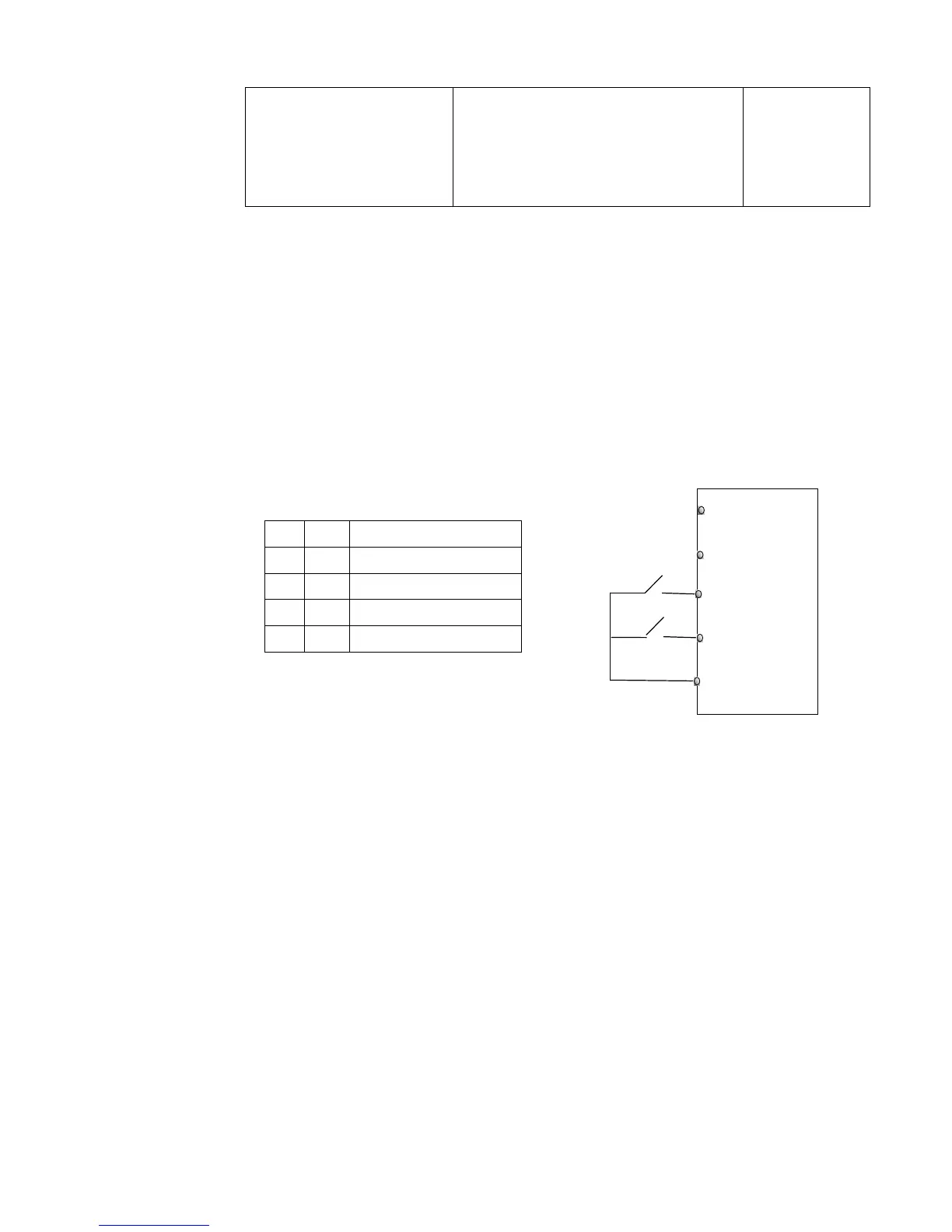

1: Two-line operation mode 1: this mode is the most popularly used two-line mode. The running
direction of mode is controlled by FWD, REV terminals.
For example: “FWD” terminal -----“open”: stop, “closed”: forward running;
“REV” terminal -----“open”: stop, “closed”: reverse running;
“CM” terminal -----common port
K1 K2 Running command
0 0 Stop
1 0 Forward running
0 1 Reverse running
1 1 Stop
K1
FWD
REV
CM
K2
TC-Hydraulik - Rsdorfer Str. 8 - 25746 Heide - Lars Lornsen - T: +49 481 909 - 34 - l.lornsen@tc-hydraulik.de - www.tc-hydraulik.de

Parker AC10 series Specifications

General

Overload Capacity	150% for 60 seconds
Analog Inputs	2
Analog Outputs	1
Communication Options	Modbus RTU
Protection Rating	IP20
Input Voltage	200-240VAC, 380-480VAC, 500-575VAC, 600VAC, 690VAC
Digital Outputs	2
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Braking	Built-in dynamic braking
