Parker AC10 series User Manual

9-32 Function Parameters
AC10 Inverter
cycles is finished continuously (set by F502), inverter will finish auto-circulation running
conditionally. When inverter keeps running and the preset cycles is not finished, if inverter
receives “stop command”, inverter will stop. If inverter receives “run command” again, inverter will
automatically circulate by the setting time of F502.
If F503=0, then inverter will stop after auto circulation is finished. If F503=1, then inverter will
run at the speed of the last-stage after auto-circulation is finished as follows:
e.g., F501=3, then inverter will run at auto circulation of 3-stage speed;
F502=100, then inverter will run 100 cycles of auto circulation;
F503=1, inverter will run at the speed of the last stage after the auto-circulation running is
finished.

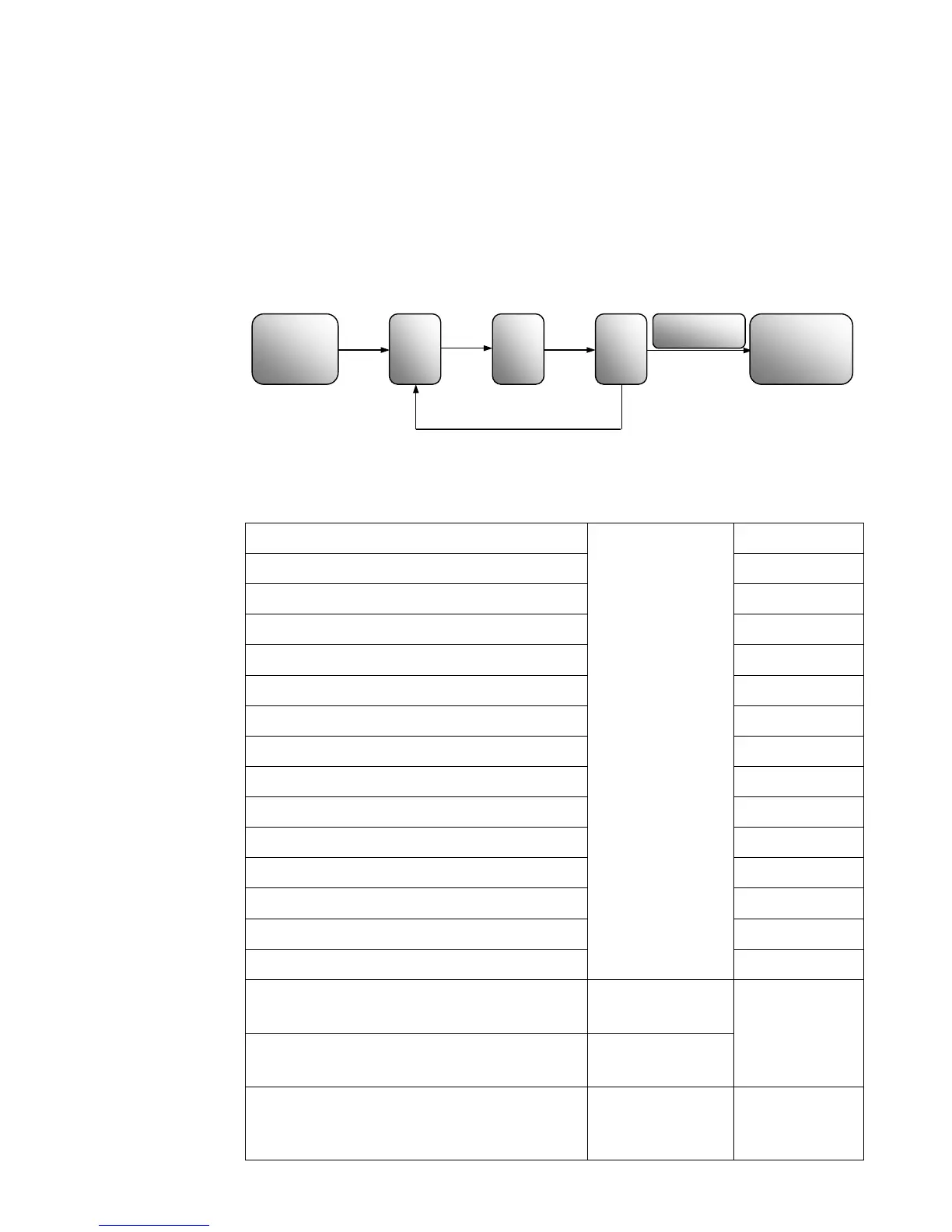

Figure 9-10 Auto-circulating Running
The inverter can be stopped by pressing “O” or sending “O” signal through terminal during
auto-circulation running.
F504 Frequency setting for stage 1 speed (Hz)
Setting range:
F112～F111
Mfr’s value: 5.00
F505 Frequency setting for stage 2 speed (Hz) Mfr’s value: 10.00
F506 Frequency setting for stage 3 speed (Hz) Mfr’s value: 15.00
F507 Frequency setting for stage 4 speed (Hz) Mfr’s value: 20.00
F508 Frequency setting for stage 5 speed (Hz) Mfr’s value: 25.00
F509 Frequency setting for stage 6 speed (Hz) Mfr’s value: 30.00
F510 Frequency setting for stage 7 speed (Hz) Mfr’s value: 35.00
F511 Frequency setting for stage 8 speed (Hz) Mfr’s value: 40.00
F512 Frequency setting for stage 9 speed (Hz) Mfr’s value: 5.00
F513 Frequency setting for stage 10 speed (Hz) Mfr’s value: 10.00
F514 Frequency setting for stage 11 speed (Hz) Mfr’s value: 15.00
F515 Frequency setting for stage 12 speed (Hz) Mfr’s value: 20.00
F516 Frequency setting for stage 13 speed (Hz) Mfr’s value: 25.00
F517 Frequency setting for stage 14 speed (Hz) Mfr’s value: 30.00
F518 Frequency setting for stage 15 speed (Hz) Mfr’s value: 35.00
F519～F533 Acceleration time setting for the
speeds from Stage 1 to Stage 15 (S)
Setting range:
0.1～3000
Subject to inverter
model
F534～F548 Deceleration time setting for the
speeds from Stage 1 to Stage 15 (S)
Setting range:
0.1～3000
F549～F556
Running directions of stage speeds from Stage 1 to
Stage 8
Setting range:
0: forward running;
1: reverse running
Mfr’s value: 0
Start auto
circulating
running
Stage-
1
speed
Stage-
2
speed
Stage-
3
speed
After circulating
100 times
Keep running at
Stage-3 speed
TC-Hydraulik - Rsdorfer Str. 8 - 25746 Heide - Lars Lornsen - T: +49 481 909 - 34 - l.lornsen@tc-hydraulik.de - www.tc-hydraulik.de

Parker AC10 series Specifications

General

Overload Capacity	150% for 60 seconds
Analog Inputs	2
Analog Outputs	1
Communication Options	Modbus RTU
Protection Rating	IP20
Input Voltage	200-240VAC, 380-480VAC, 500-575VAC, 600VAC, 690VAC
Digital Outputs	2
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Braking	Built-in dynamic braking
