Accessories
Hand-held terminal
203
Unit
hardware
Connector
assignment / cable
Technical dataConfigurationPositioning and
control functions
Optimization
functions
InterfacesAccessories /
options
StatusParameterError list
View
Program ?
Edit
Program?
NO
NO
YES
NO
Enter block no.
Ent
Select other blocks
using or .
YES
Enter block no.
Ent
Select other blocks
using or .
Edit block
Ent
YES
Are You sure
Program is deleted
NOYES
YES
Program Mode ?
Delete
Program?
Esc
NO
Command Mode?
Commands or numerical values are modified by overwriting them.
YES
Esc
NO
Command Mode ?
NO
Enter command
Ent
Command is transferred
by COMPAX
Once you have transmitted the command using "Ent", this command reappears in
the display and it can be modified and transmitted again.
When OUTPUT O.="X", the cursor is positioned under "X" after the command is
transmitted. The value can be modified and transmitted.

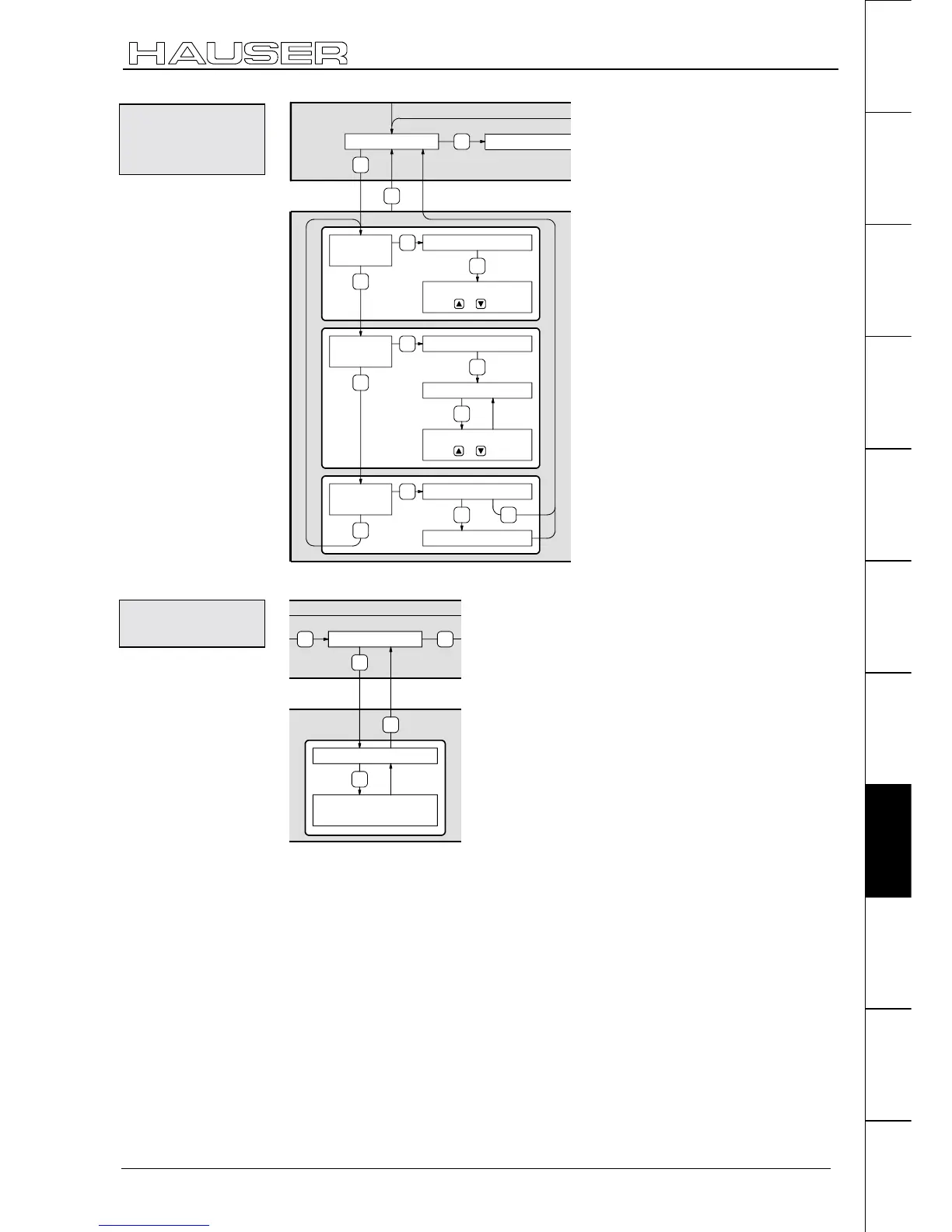

View,
edit, delete
program
Direct
command entry
Special control
function
