8.4.36 Output of variable voltage
The direct output of variable voltage is supported via the D/A monitor channels 0 to
3.
Addressable using parameters P76 (channel 2) and P77 (channel 3)
P76 Channel 2 X11/4
P77 Channel 3 X11/5
Resolution: 8 bit (incl. sign); corresponds to a resolution of 80 mV
Range: -10V...+10V

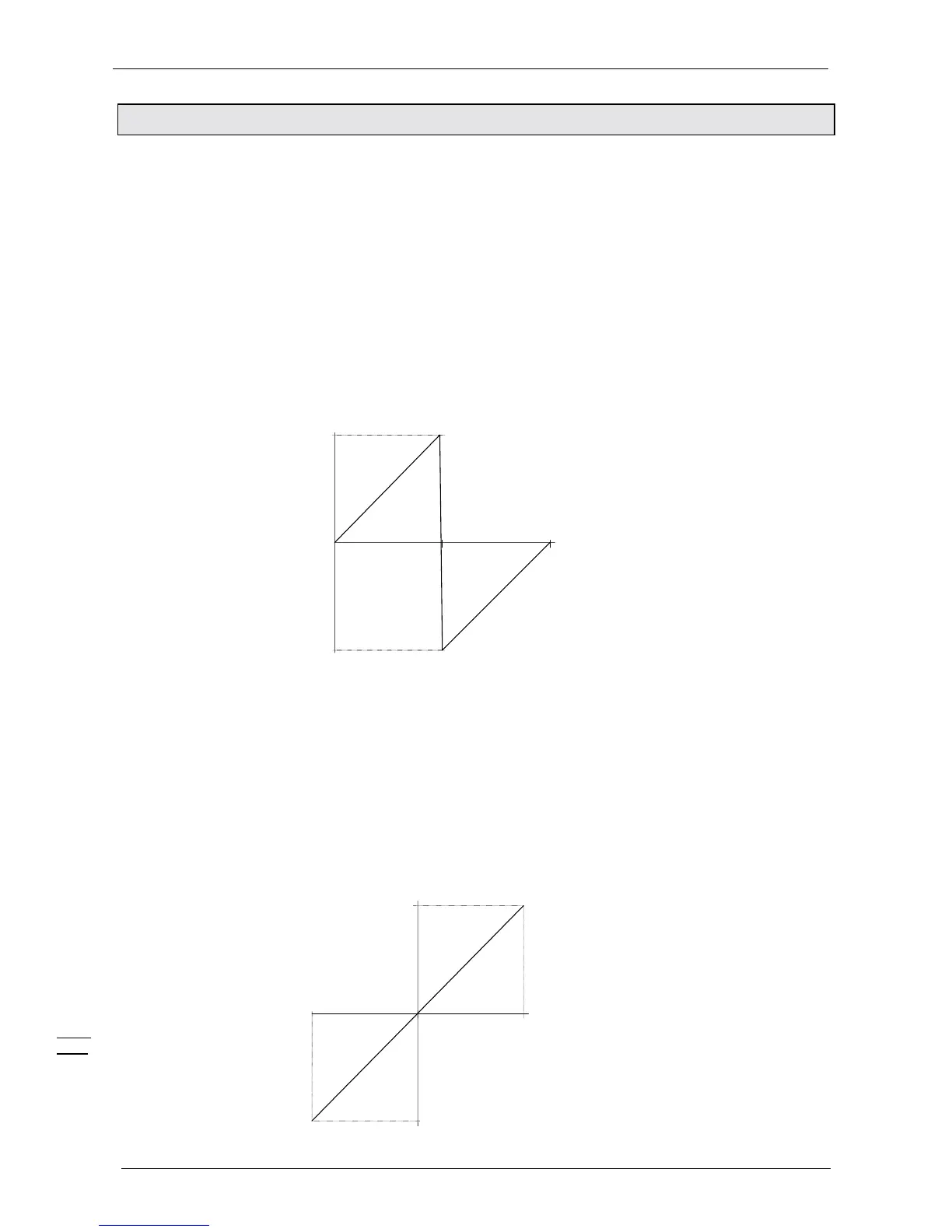

The calculation for output on the 8 bit channels 2 & 3 is as follows:
Parameter setting for required voltage U (-10V ... +10V)
P76 (P77) = 39 + Y (39,Y)
39: selection of voltage output
For positive voltage: Y = U * 0.0101067 / 10V
For negative voltage: Y = U * 0.0101067 / 10V + 0.0202134
(Note: set U negative in the 2nd formula)
-10.0V
+9.96V
0.0202134
0.0101067
Addressable using P71 (channel 0) and P72 (channel 1)
P71 Channel 0 X17/1
P72 Channel 1 X17/2
Resolution: 12 bit (incl. sign); corresponds to a resolution of 5 mV
Range: -10V...+10V
The calculation for the output on the 12-bit channels 0 and 1 is as follows:
Parameter setting for required voltage U (-10V ... +10V)
P71 (P72) = Y
P73 (P74) = 39: selection of voltage output
Y = U * 101067 / 10V
-10.0V
+10.0V
0.010106
-0.0101067
