102
Forward Gear Bearing
Check whether the bearing for rust and noise when rotating. Replace it if necessary.
Note:
Do not remove the bearing unless it is replaced.
When installing a new bearing, adjust the shim as required.
Check the Lower casing Unit Casing
Check whether the Lower casing device casing is cracked or damaged, and check whether the
cooling water inlet is blocked. Replace it if necessary.
Check the Water Pipe
Request params was error Replace it if necessary.
Assemble the Lower casing Device Casing

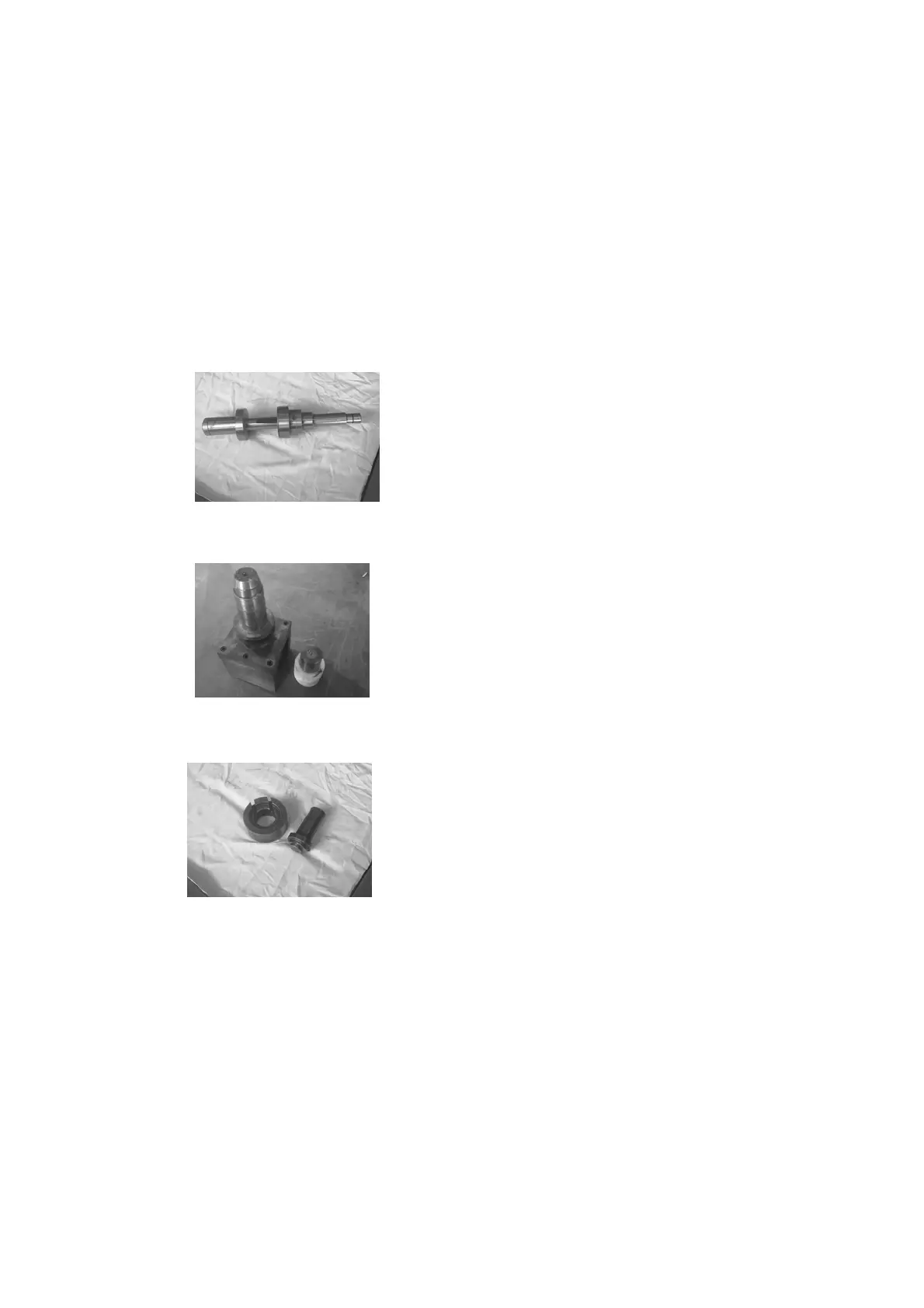

1. Install the needle roller bearing with special tools.
Needle roller bearing mounting tool kit
2. Install new forward gear bearing. (If replace it)
Forward gear bearing casing mounting kit
3. Install the drive shaft seat oil seal.
Drive shaft seat oil seal installation tool kit
4. Install the shift cam, gasket and oil pump casing A, and install forward gear, drive shaft,
shim and pinion.
Install the shift cam, gasket and water pump seat, and install forward gear, drive shaft,
shim and pinion.
Attention:
When installing a new drive shaft, adjust the shim as required.
5. Tighten the pinion nut.
Specified torque: 95 Nm
6. Install the propeller shaft assembly.
To Next Page
