88

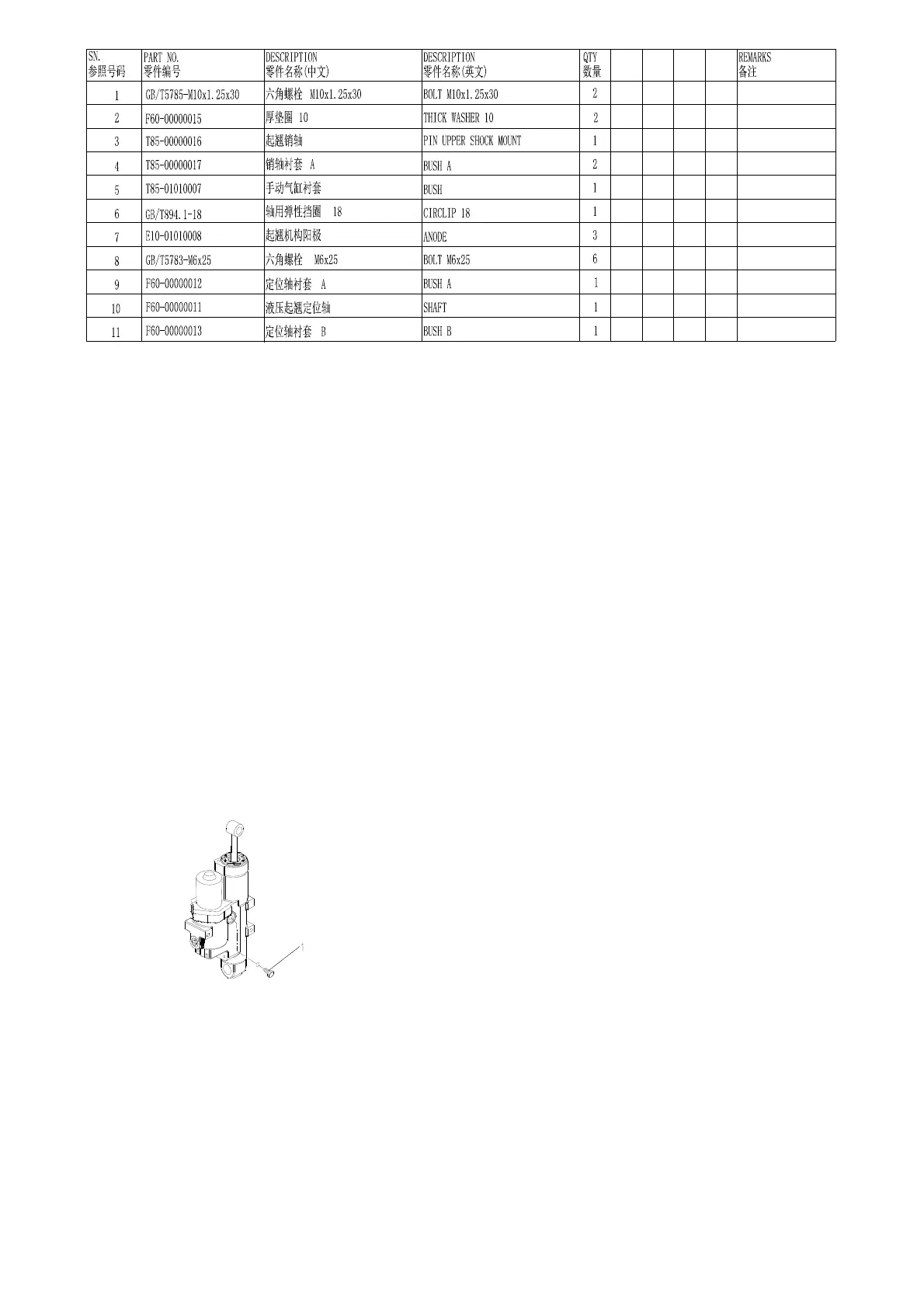

Disassembling
1. Fully tilt the outboard motor upwards and lower the support frame to support the
outboard motor.
2. Remove the steel wire retaining ring for the shaft and remove the tilting pin shaft.
3. Remove the bolt and remove the hydraulic tilting positioning shaft.
4. Remove the hydraulic tilting assembly.
Oil Level Check
1. Position and secure the hydraulic tilting device vertically.
2. Connect the tilting motor wire of the hydraulic tilting device to the battery.
3. Extend the push rod completely, remove the oil screw and observe the oil level.
Note:
The liquid level should be at the edge of the oil hole,
1. Oil drain screw
4. If necessary, add oil to the edge of the oil hole.
5. Install and tighten the oil drain screw.
Specified torque: 6.5 Nm
Discharge Air from Oil Circuit of the Hydraulic Tilting Device
After adding oil, discharge the excess air in the oil.
1. . Connect the tilting motor wire of the hydraulic tilting device to the battery.
To Next Page
