Parsun F60 User Manual

10
ase
2
nd
tightening 30 Nm
1
st
tightening
Bolt M6
6 Nm
2
nd
tightening 12 Nm
Connec
ting rod
1
st
tightening
Bolt M6
6 Nm
2
nd
tightening 17 Nm
Driven pulley Bolt M10 38 Nm
Lower
casing unit
Lower casing assembly Bolt M10 40Nm
Ring nut — — 105Nm
Water inlet Screw M5 5 Nm
Oil drain bolt Bolt — 7Nm
Oil check hole Bolt — 7 Nm
Pinion gear Nut M22 95 Nm
Propeller nut Nut M14 35 Nm
Upper
Casing
Steering handle Nut M10 10 Nm
Steering handle Self-locking nut M10 22 Nm
Exhaust manifold Bolt M6 10 Nm
Throttle grip Screw M5 3 Nm
Shift linkage bracket Bolt M6 10 Nm
Gear spring piece Bolt M6 10 Nm
Bottom cover flat Bolt M6 10 Nm
Clamp bracket Self-locking nut —
45 Nm
Oil drain bolt Bolt M14 27 Nm
Tilting
system
Inclined cylinder end Screw — 90 Nm
Tilting motor Screw M5 4 Nm
Fuel tank cap — — 6.5 Nm
Trim cylinder end Screw — 80 Nm
Tilt piston Bolt M12 61 Nm
Pressure relief valve bracket Bolt M5 5.3 Nm
Gear pump assembly Bolt M6 6.5 Nm
Gear pump bracket Bolt M5 5.3 Nm
Electrical
system
Trigger coil Screw — 4 Nm
Starter motor
Nut — 30 Nm
Bolt M8 30 Nm
Starter motor terminal Nut — 7 Nm
Magneto coil Bolt M6 7 Nm

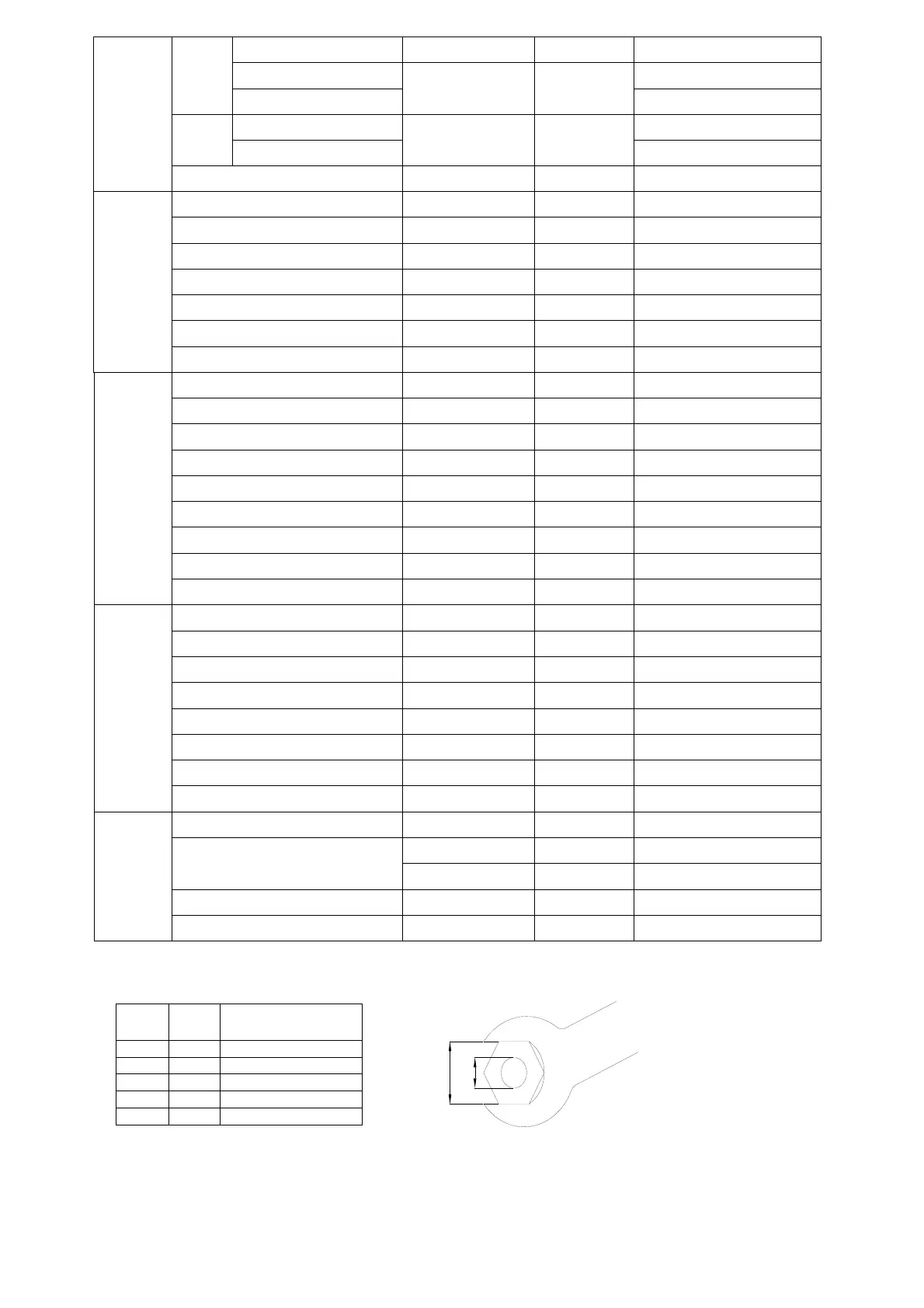

General Torque
Nut a Bolt b Torque
8mm M5 5Nm
10mm M6 8 Nm
12mm M8 18 Nm
14mm M10 36 Nm
17mm M12 43 Nm
b
a
