17
Control System
Throttle Cable
1. Place the throttle grip in the closed position; Put the shift lever to the neutral position
for the front operation model.

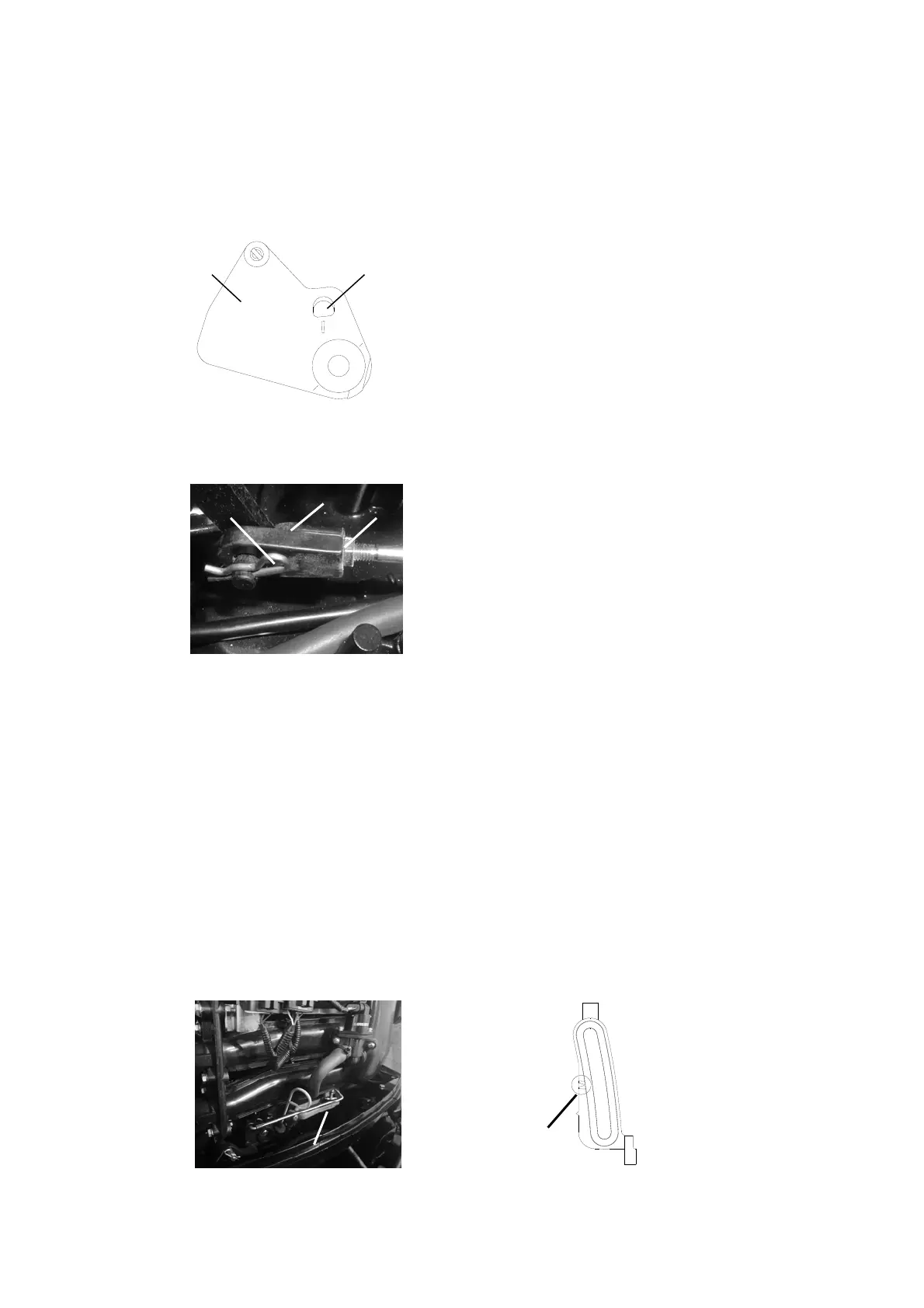

2. Check whether the roller on the driven pulley of the throttle actuator can be observed in
the observation window on the driving pulley of the throttle actuator; If the roller cannot be observed,
adjust the length of the cable joint.
1. Driving pulley of throttle actuator; 2. Observation window.
3. Remove the cotter pin, remove the cable connector and loosen the lock nut of the cable
joint.
1. Cotter pin 2. Cable joint 3. Lock nut
4.Adjust the screw-in depth of the joint so that the joint hole is aligned with the pin of the
throttle actuator driving pulley.
Attention:
Cable joints must be screwed in more than 8mm.
5.Fit the cotter pin and screw the lock nut.
Shift Operation
1. Check whether the gear shifting operation is smooth;
2. Place the shift lever in neutral position.
3. Observe that the pin on the swing rod is aligned with the mark on the swing rod seat of
throttle.
1. Swing rod seat of throttle; 2. Mark.
4. If the pin is not aligned with the mark, adjust the screw-in depth of the cable joint.
(Refer to the adjustment method of cable joint of throttle)
1
2
3
21
1
2
