Appendix
52
pco
.
ed
ge Use
r Manual V1.03 © PC
O AG
,
G
erma
ny
A2

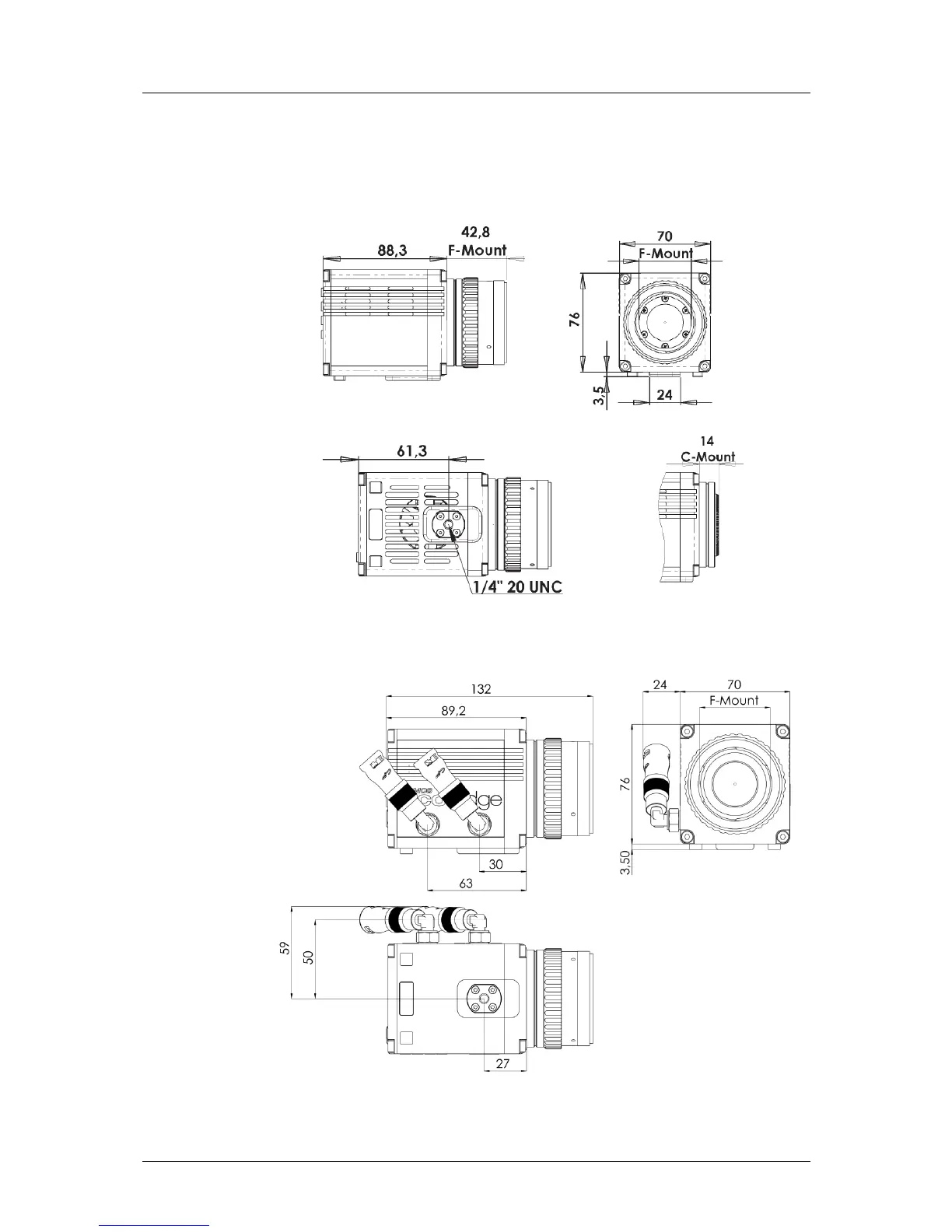

Mechanical Dimensions
All dimension
s
giv
en in mill
ime
ter
.
Standar
d Version (
pco.e
dge
4.2 / 5.5, Ca
mera Link or US
B 3.0)
Water Co
o
l
ed
Sta
ndard Versi
o
n
(pc
o
.e
d
ge
4.2 /
5.5, Camer
a Link)
51
53
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
5
2 Safety Instructions
7
3 System Components
8
4 Installation
9
5 Quick Start
10
6 Camera Control for the Pco.edge
11
The "Camera Control" Window
11
The Timing Tab
12
Rolling Shutter - Timing Details
14
Global Shutter - Timing Details
19
Global Reset - Timing Details
22
The Sensor (Size) Tab
24
Binning
24
Sensor Format
24
The Sensor (Misc.) Tab
25
Pixelclock
25
Conversion Factor
25
The Recording Tab
26
Acquire Mode (Disable Recording Externally)
26
Time Stamp
28
The In/Out Signals Tab
29
7 Camware Features
31
If no Camera Is Connected
31
Demo Mode Setup
31
Overview
32
The File Menu
33
Direct Record to File (RAID Operation)
36
The Camera Menu
37
Auto Exposure
37
The Acquisition Menu
38
Recorder Setting
38
The View Menu
39
Convert Control BW / Color
39
The Window Menu
42
The Help Menu
42
The Local Menu
43
Additional Features
45
Appendix
46
A1 Technical Data
47
A2 Mechanical Dimensions
52
A3 How to Change Optical Input F-Mount to C-Mount
54
A4 Image File Formats
55
A5 Service and Maintenance
57
A6 Customer Service and Trouble Shooting
58
A7 Water Cooling Option (Pco.aquamatic II)
59
A8 Image Data Flow (PC Recommendations)
63
A9 ME4 Grabber Instructions
65
A10 USB 3.0 Installation & Hardware Recommendations
68
A11 Binning in CMOS Sensors
71
About PCO
72
