6.2.3 Global Reset – Timing Details
All pixels are globally reset, and the exposure starts for all rows at the same
time. The exposure stop is carried out row by row, therefore the duration of
the exposure is not the same for all pixels. The rolling readout improves the
image quality, but due to the difference in exposure time, a flash illumination
is recommended. The readout (exposure stop) is done from the outside to
the center.

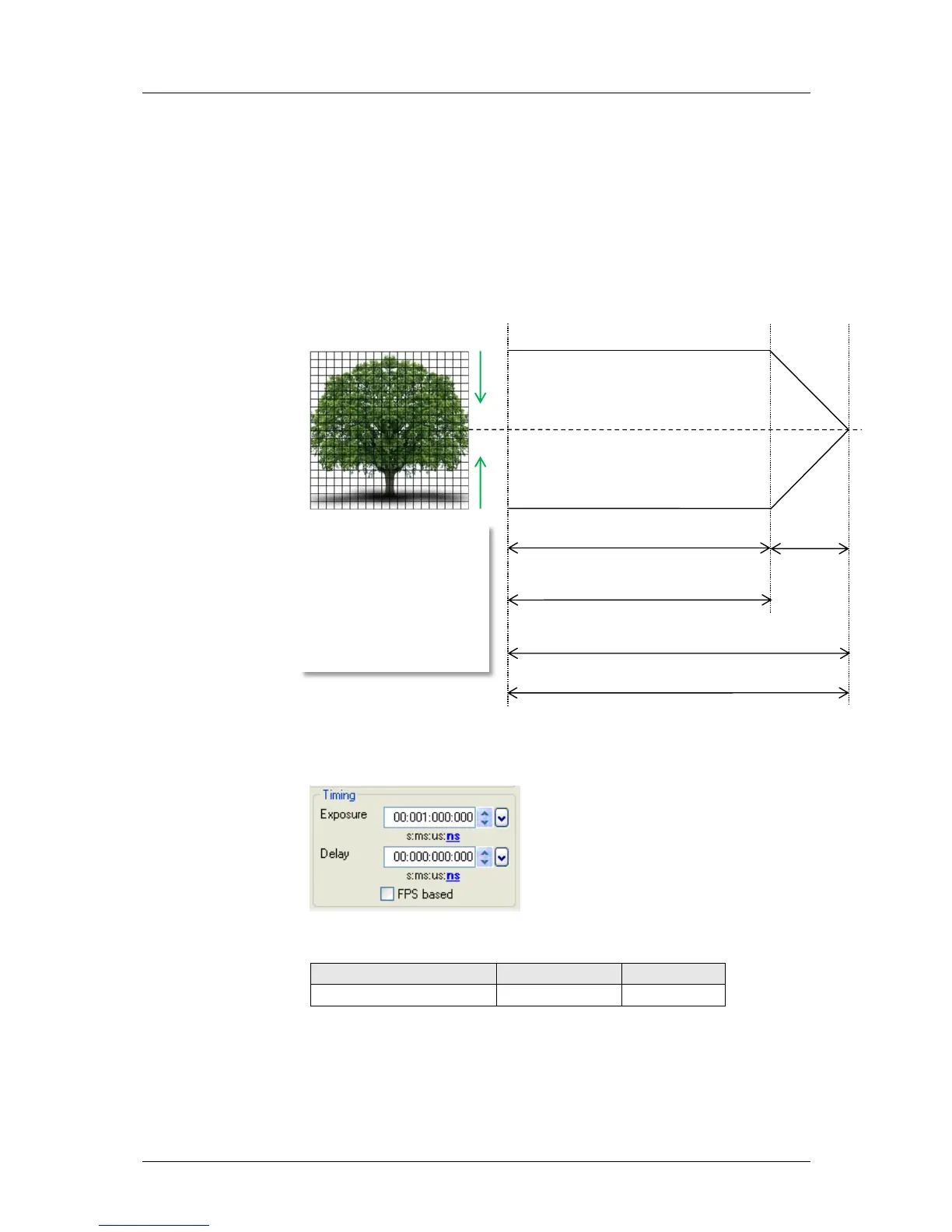

General Timing Diagram
Timing
The exposure and delay time can be adjusted in steps of 10µs.
The exposure time of all rows
starts simultaneously. The
exposure time of the first row
stops after the predefined time,
the following rows are read out
from the outside to the center
row by row. Please note that
this leads to a different duration
To Next Page
