Pegasus TFV2000D-E - Cover

- 60 -
7 Inspection
1
5
2
6
3
7
9
4
8
10

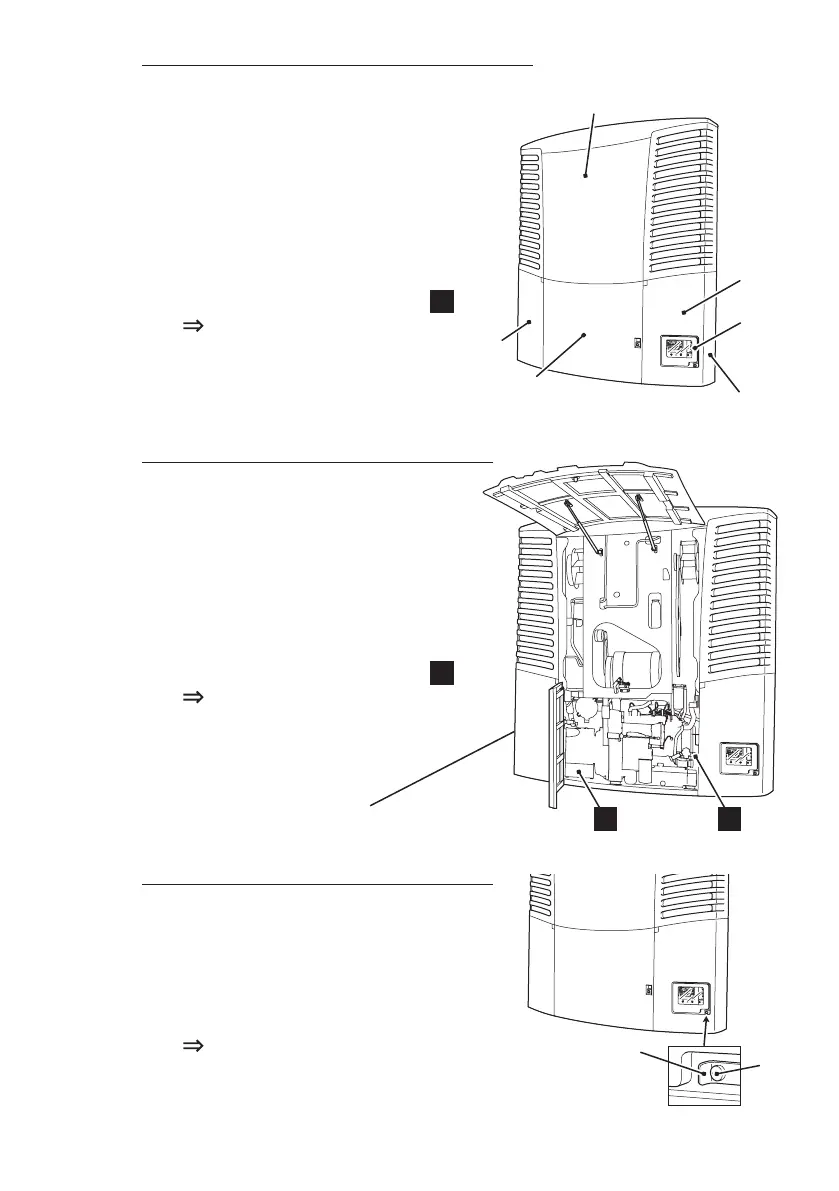

Cover 3
1
Raise the release lock lever, and
turn it by 90° to counterclockwise to
release the lock.
(Not provided on the units earlier than
2014.)
2
While the cover 1 is fully opened,
pull the wire-loop located at
A
.
The lock is released and the cover
3 opens a little.
3
Open the cover 3 by hand.
Cover 4
1
Raise the release lock lever, and turn
it by 90° to clockwise to release the
lock.
(Not provided on the units earlier than
2014.)
2
While the cover 1 is fully opened,
pull the wire-loop located at
B
.
The lock is released and the cover
4 opens a little.
3
Open cover 4 by hand.
Cover 5
1
Release the lock mounted on the
"Cover 5 opening lever".
2
Pull the "Cover 5 opening lever".
The lock is released and the cover
5 opens by the force of spring.
Release loc
k lever
(Not pro
vided on the units earlier than 2014.)
AB
Cover
3
Cover 4
Cover 1
Cover 2
Cover
5
Release lock leve
r
(Not provided on the units ear
lier than 2014.)
Lock
Cover 5
Opening le
ver
