Pegasus TFV2000D-E - Page 9

- 4 -

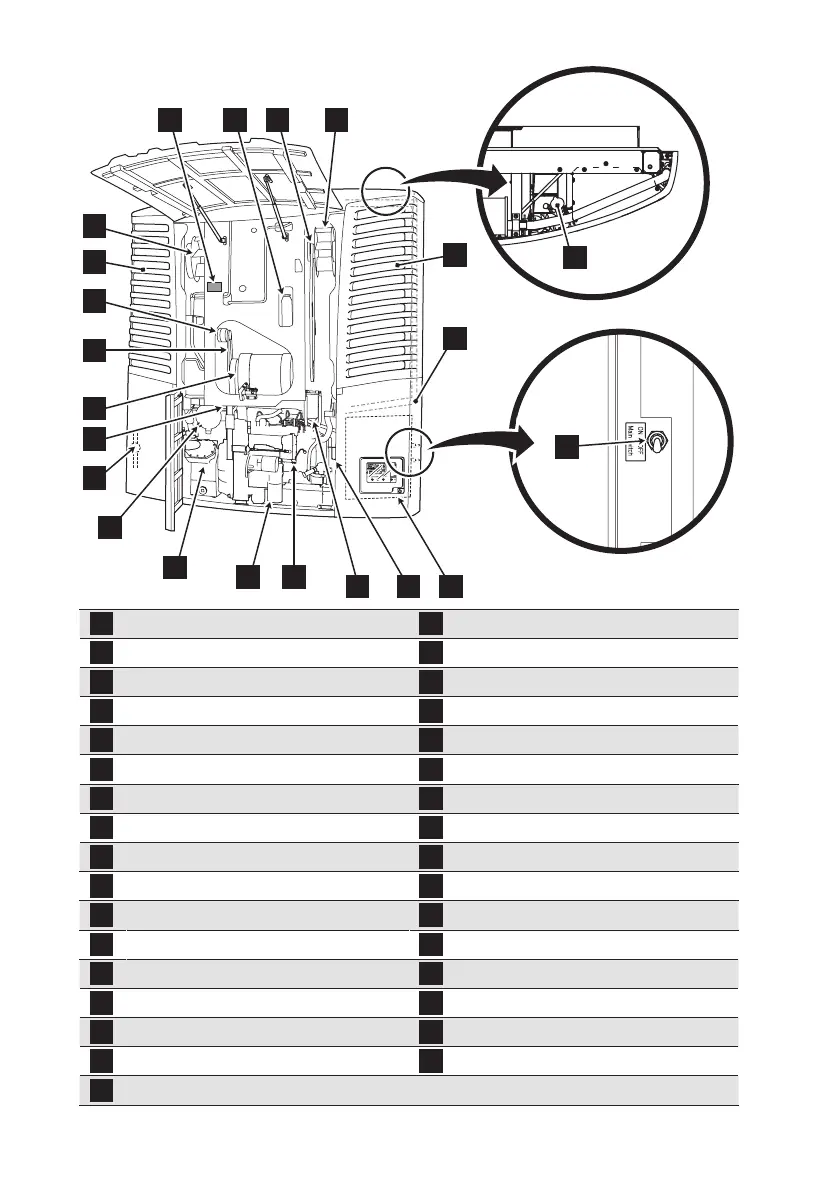

2 Name of each part
1
5
2
6
3
7
9
4
8
10
1
Refrigeration Unit
18
Alternator
2
Battery
19
Alternator belt (V belt)
3
Fuel lter (for water separation)
20
Standby motor
4
Fuel tank
21
Compressor belt (10-ribbed belt)
5
Opening and closing lever for the cover
22
Sight glass
6
Lock for front cover
23
Air cleaner
7
Commercial power socket (Bottom surface)
24
Compressor
8
Control panel
25
Oil lter
9
Mufer
26
Sub-engine
10
Supply air outlet for evaporator
27
Fuel lter
11
Drain pan
28
Water pump belt (V belt)
12
Reservoir tank
29
Control box
13
Fan belt (6-ribbed belt)
30
Right condenser
14
Right condenser fan
31
Exhaust pipe
15
Radiator cap
32
Main switch
16
Left condenser fan
33
Label (F-Gas)
17
Left condenser
Upper surface view
16
17
18
19
20
21
22
23
24
25 26
27 28 29
32
31
30
15
14131233
