Installing PenMount 6000 Control Boards
13
2. For other installation details, see
2.2.3 Connect A 6202B Control Board
(for both RS-232 & USB Interface)
on page 6.

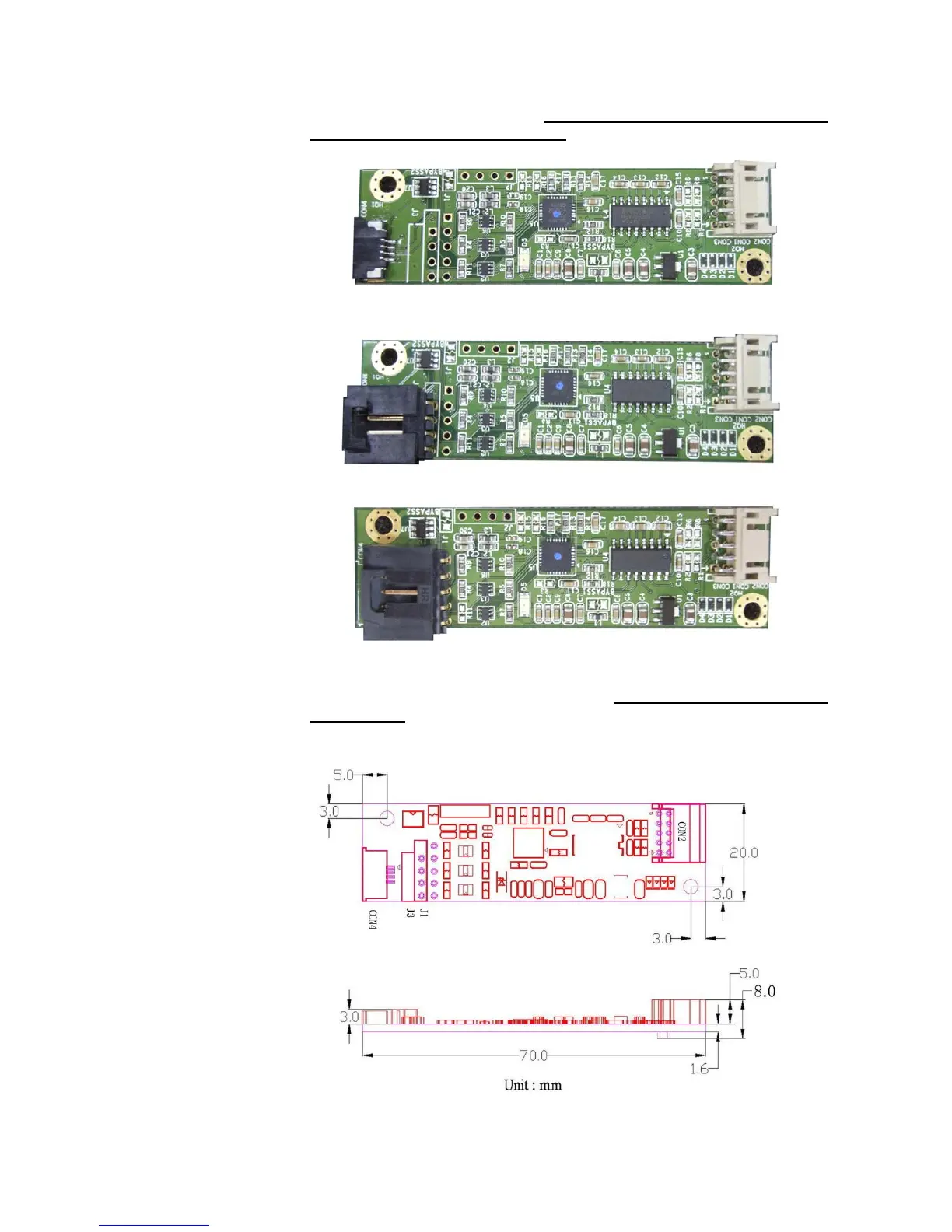

PenMount 6202B CZ4 Touchscreen Control Boards Upside
PenMount 6202B CW4 Touchscreen Control Boards Upside
PenMount 6202B CW5 Touchscreen Control Boards Upside
3. Power on the computer and the display. Install the software drivers and
utilities and calibrate the touchscreen. See
Chapter 3. Install Drivers for
6000 Boards
for details.
4. The mechanical diagrams of PenMount 6202B Control Boards
PenMount 6202B CZ4 Control Board Mechanical Diagram
