Chapter 4 Driver Software Functions

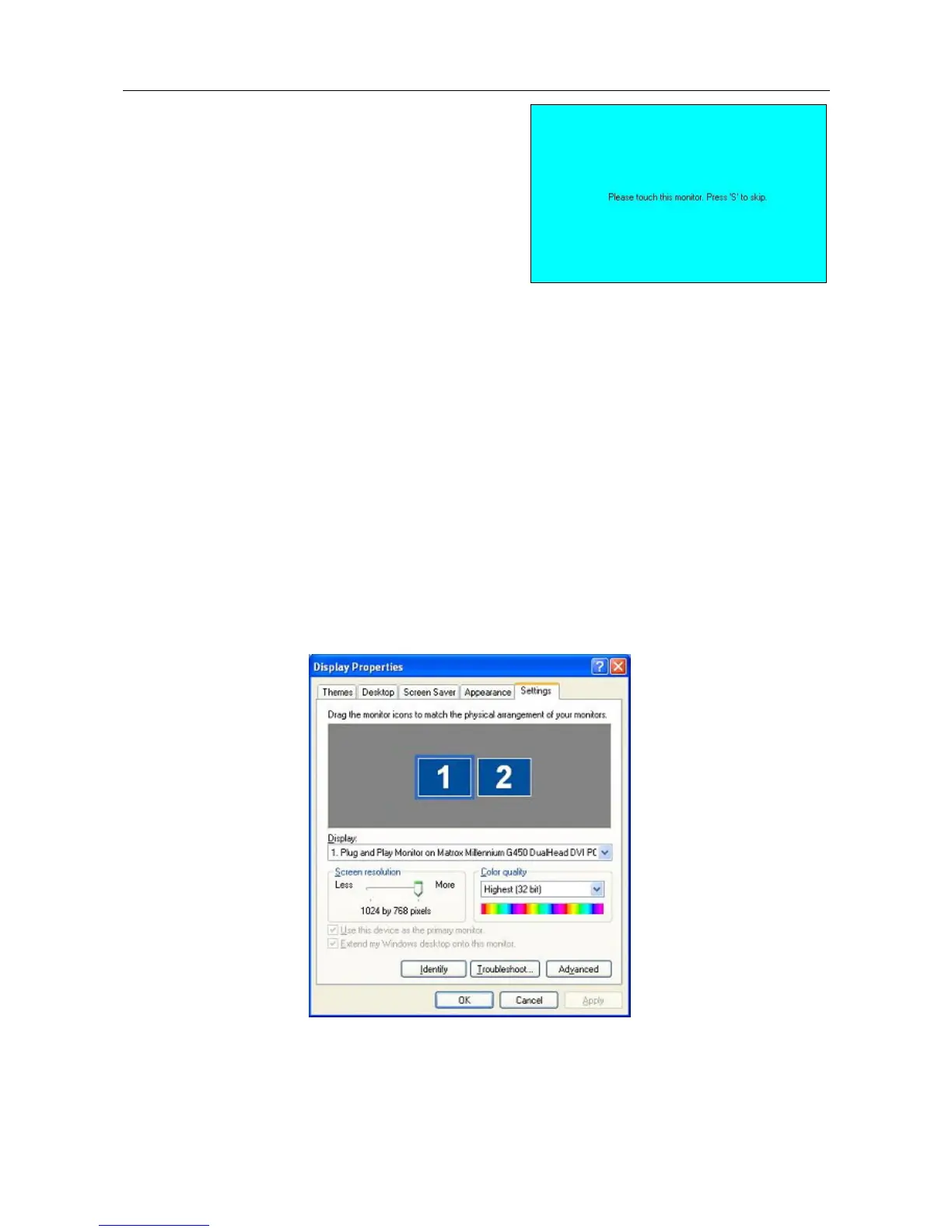

3. Touch each screen as it
displays “Please touch this
monitor. Press ‘
S
’ to skip”.
Follow this sequence and
touch each screen to map
the touchscreens.
4. After the setting procedure is finished, maybe you need to calibrate for
each panel and controller.
NOTES:
1. If you use a single VGA output for multiple monitors, please do not
use the
Multiple Monitors
function. Just follow the regular
procedure for calibration on each of your desktop monitors.
2. The
Rotating
function is disabled if you use the
Multiple Monitors
function.
3. If you change the resolution of display or screen address, you have
to redo
Map Touchscreens
so the system understands where the
displays are.
4. If you have multiple monitors but only one touchscreen, press ‘
S
’ to
skip mapping step.
4.3.2. An Example for 2 Units of Touch Monitor
1. Please make sure the touch monitor had plugged in and detected.
