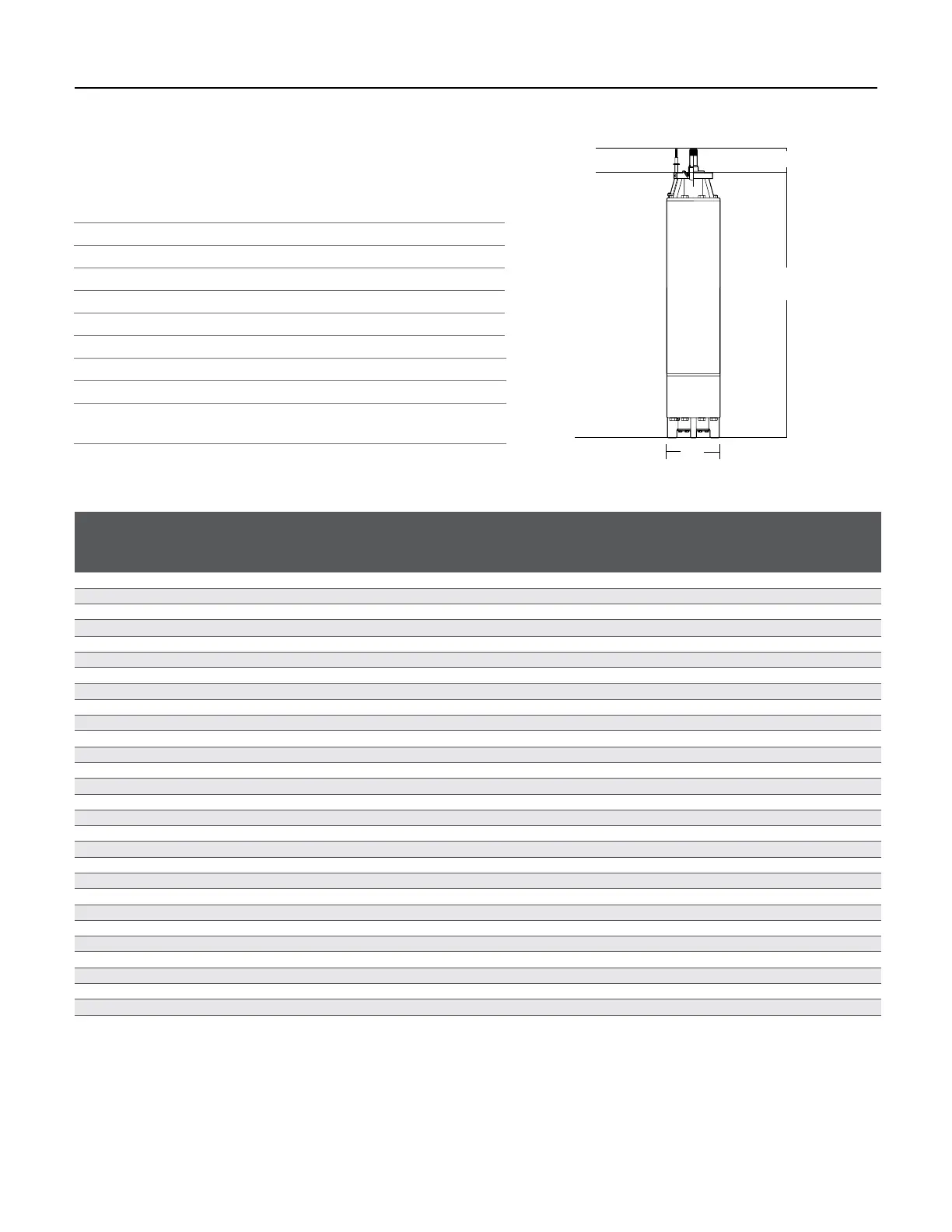

SECTION 7: Hitachi
®
6” and Larger Submersible Motors
7.4 Motor Specifications
PARTS MATERIALS
Housing Baked epoxy-coated gray iron
Fasteners Stainless steel
Shaft Splined or keyed stainless steel
Rotor Double epoxy-coated
Thrust Bearings Kingsbury-type 420 stainless steel
Mechanical Seal Nitrile rubber (NBR), grease packed
Diaphragm Nitrile rubber
Sand Slinger Baked epoxy-coated gray iron
Lead Wire (or Cable) Double-insulated, heat and water-resistant,
167°F/75°C, 600V
MOTOR
DIAMETER HP KW VOLTS PH HZ RPM
CATALOG
NUMBER
LENGTH
(L)
SHAFT
EXTENSION
(L1)
DIAMETER
(D)
THRUST
CAPACITY WEIGHT
8* 50 37 460 3 60 3600 86HIT2-50-4 45.28 2.875 5.5 10,000 **5,000 157
8* 60 45 460 3 60 3600 86HIT2-60-4 48.03 2.875 5.5 10,000 **5,000 182
8 7.5 5.5 460 3 60 1800 8HIT4-7-4 32.4 4 7.52 10,000 298
8 10 7.5 460 3 60 1800 8HIT4-10-4 32.4 4 7.52 10,000 298
8 15 11 460 3 60 1800 8HIT4-15-4 41.34 4 7.52 10,000 320
8 20 15 460 3 60 1800 8HIT4-20-4 41.34 4 7.52 10,000 320
8 25 18.5 460 3 60 1800 8HIT4-25-4 44.09 4 7.52 10,000 342
8 30 22 460 3 60 1800 8HIT4-30-4 44.09 4 7.52 10,000 342
8 40 30 460 3 60 3600 8HIT2-40-4 44.09 4 7.52 10,000 320
8 50 37 460 3 60 3600 8HIT2-50-4 46.44 4 7.52 10,000 353
8 60 45 460 3 60 3600 8HIT2-60-4 49.19 4 7.52 10,000 408
8 75 55 460 3 60 3600 8HIT2-75-4 53.15 4 7.52 10,000 463
8 100 75 460 3 60 3600 8HIT2-100-4 53.8 4 7.52 10,000 518
8 125 90 460 3 60 3600 8HIT2-125-4 66.14 4 7.52 10,000 595
8 150 110 460 3 60 3600 8HIT2-150-4 70.08 4 7.52 10,000 661
10 40 30 460 3 60 1800 10HIT4-40-4 49.21 4 8.52 10,000 507
10 50 37 460 3 60 1800 10HIT4-50-4 49.21 4 8.52 10,000 507
10 60 45 460 3 60 1800 10HIT4-60-4 59.84 4 8.52 10,000 639
10 75 55 460 3 60 1800 10HIT4-75-4 59.84 4 8.52 10,000 639
10 100 75 460 3 60 1800 10HIT4-100-4 69.68 5 8.52 10,000 794
10 125 90 460 3 60 1800 10HIT4-125-4 69.68 5 8.52 10,000 794
10 200 150 460 3 60 3600 10HIT2-200-4 69.68 5 8.52 10,000 816
10 250 185 460 3 60 3600 10HIT2-250-4 79.53 5 8.52 10,000 948
12 150 110 460 3 60 1800 12HIT4-150-4 56.3 5 10.53 10,000 959
12 200 150 460 3 60 1800 12HIT4-200-4 68.11 5 10.53 10,000 1235
12 300 225 460 3 60 3600 12HIT2-300-4 78.75 5 10.53 10,000 1455
14 250 185 460 3 60 1800 14HIT4-250-4 68.31 5 12.6 10,000 1698
14 300 225 460 3 60 1800 14HIT4-300-4 76.18 5 12.6 10,000 1940
*Motor is 8" diameter, but constructed to operate with a 6" liquid end.
** 8" motors with 6" flange when using stainless steel bolts have
a thrust rating of 5,000 lbs. A thrust value of 10,000 lbs. can be
obtained using grade-8 heat-treated stainless steel bolts.
L
D
L1
Materials of Construction
Hitachi
®
is a registered trademark of Hitachi Industrial Equipment Systems Co., Ltd.
