76570EM 13

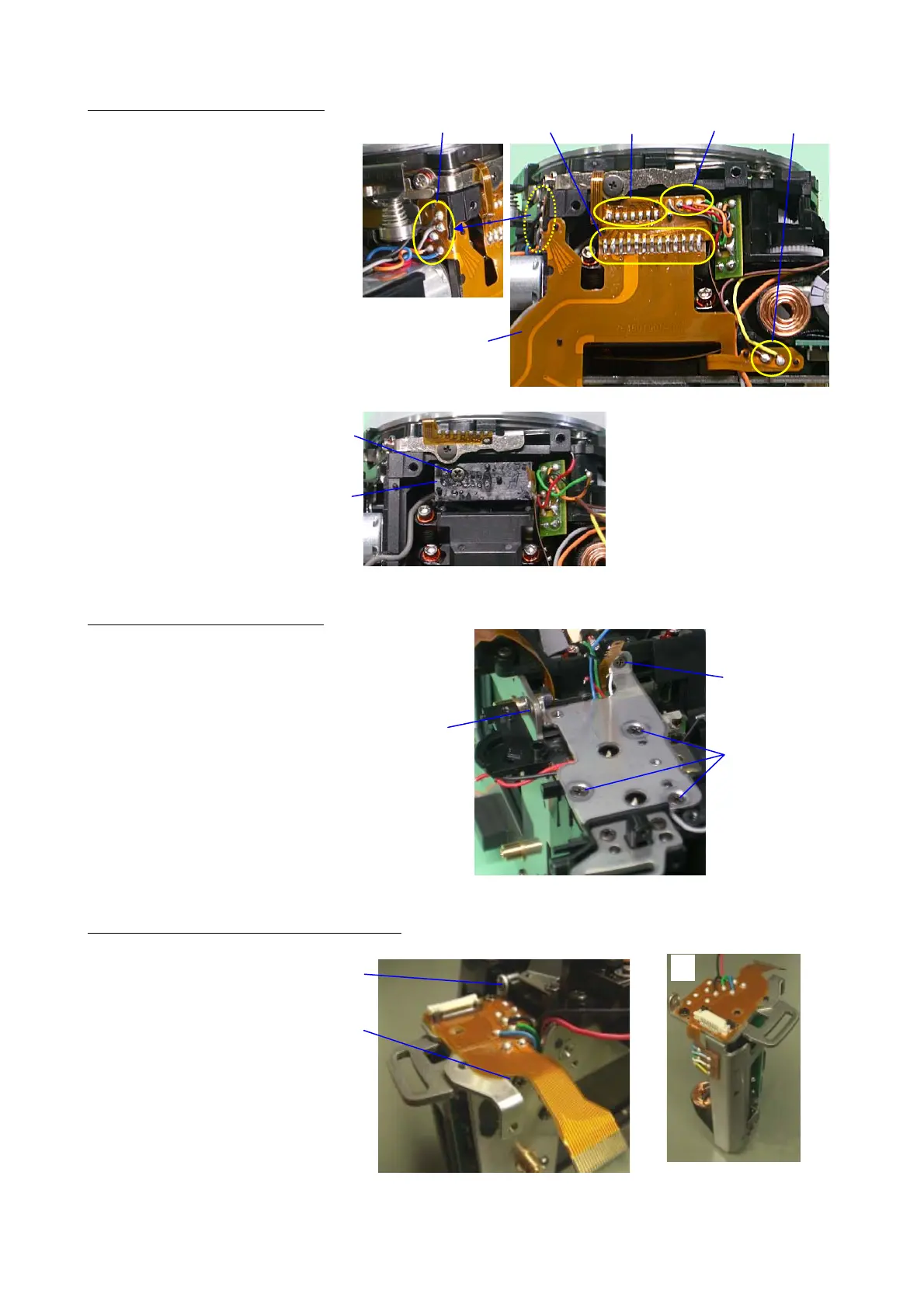

12. T901 (Lower flex board)
(1) Lead wire x5
(Black, Gray, Red, Orange, Blue)
(2) Lead wire x4
(Black, Red, Orange, Green)
(3) Lead wire x2 (Brawn, Yellow)
(4) Land x13 (M100)
(5) Land x7 (T301)
(6) T901
(7) TY-CNL-D1.7x3.5
(8) A141
13. A6 (Left shoulder plate)
(1) TY-CNL-D1.7x4.0
(2) TY-CSM1.7x4.0 x3
(3) CNL-D1.7x2.5
14. 0-Q200 (Flash PC board)/A5/A15
(1) TY-CNL-D1.7x4.0
(2) CNL-D1.7x2.5
(3) 0-Q200/T950 /A5/A15
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(3)
(1)
(2)
(3)
③
①
②
