76570EM 22
11. [ADJ] Viewfinder Indications
[Required equipment] SD card for confirmation x2 (For setting test mode ON and OFF),
resistor x1 (Approx.200）,Power Supply (8V/3A), ampere meter,
DC cord (Jig), 0-T100, connecting flex (connect cable side),
Video cables, TV monitor.

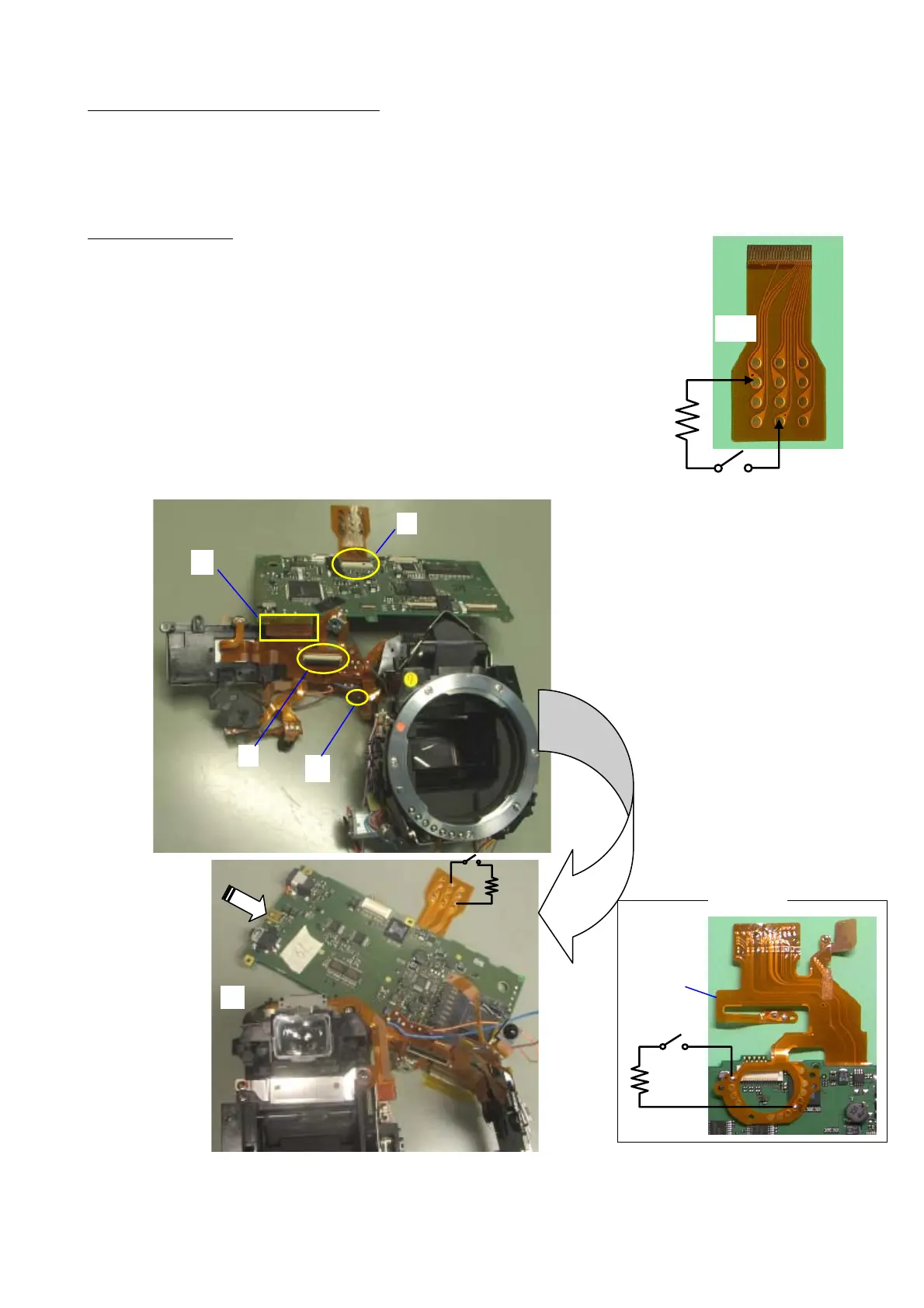

11-1.Preparation
(1) Connect the DC cord to the DC power supply and set voltage to DC6.5V (3A).
(2) Connect the video cable to the TV monitor.
(3) Solder the resistor and switch function to connecting flex as shown in figure.
*If you substitute T901 flex, refer to below figure (3)-*
(4) Temporary solder one lead wire (L=55mm) on T100. (For input power)
(5) Connect the connecting flex. (Flip lock connector)
(6) Put the white body mount cover to front housing block.
(7) Connect O100 flex to T100. (Slide lock connector)
(8) Set the camera for confirming viewfinder while avoiding stress to the flex.
(9) Connect the video cable to T100.
200
(3)
SW
T901
③-＊
④
VIDEO
⑧
⑨
⑦
To Next Page
