76570EM 15

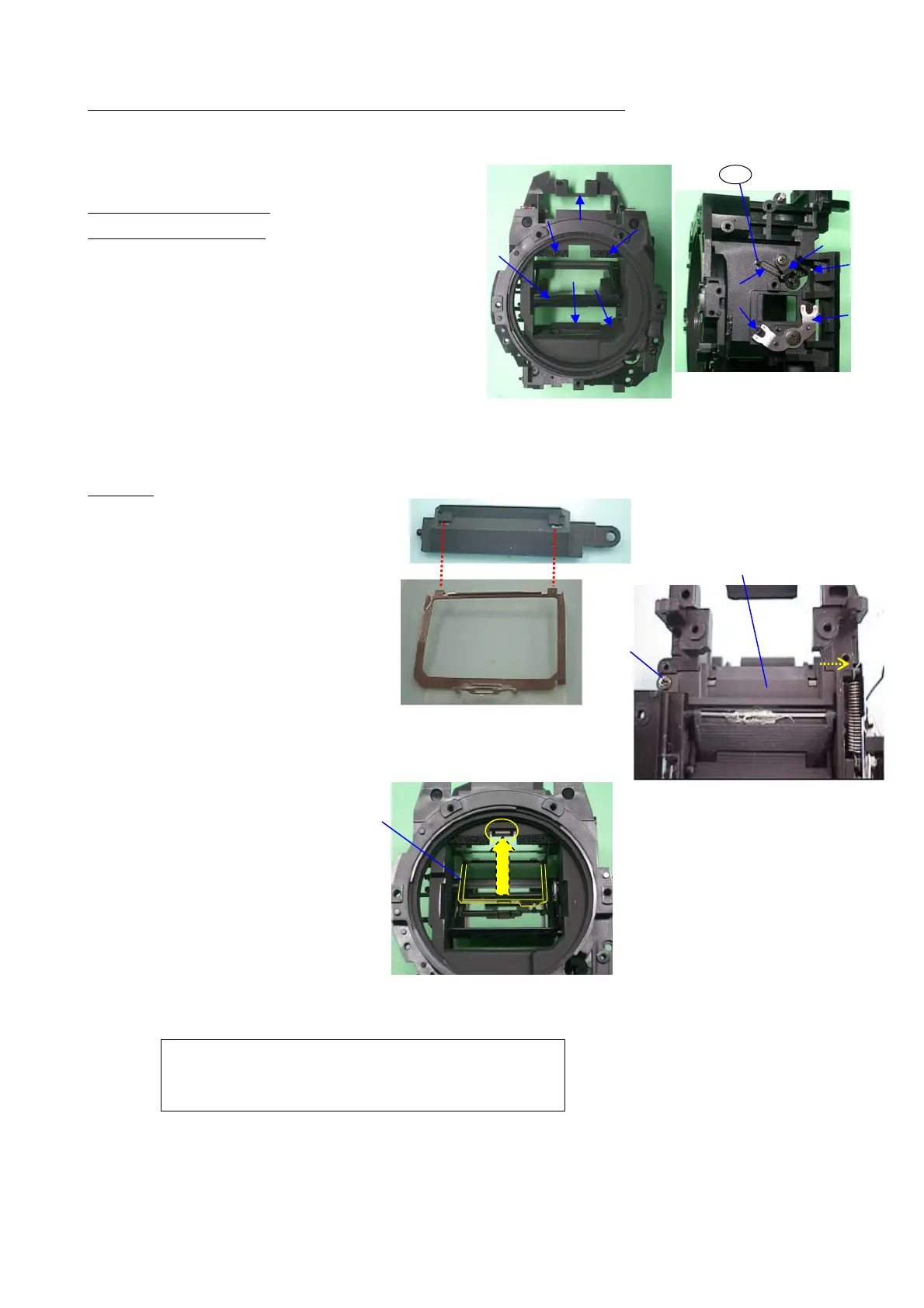

2. Assembly and Disassembly procedure of front housing block
Disassemble the front housing block in reverse order of assembly
procedures according to “Note of disassembly”.
Assembly procedures
1. Front Housing Block
B65 x2, B41, M120, M18, B68
B58 x2, B59, TY-CNL-G1.7x2.0
0-B52、B66 (shaft)
--- Apply Dia bond 1663 at center of shaft
about 1cm wide for fix B52.
B63, B57, B62 (spring) --- Apply screw lock at shaft side.
2. 0-M4
[Required equipment]
(1) Install 0-M4 to the M21
(2) Install M21 while
positioning the boss.
(3) TY-CNL-D 1.7x3.5
(4) Raise up the 0-M4
[Note of Disassembly]
Unhook 0-M4 (6) then remove 0-M22 (2)
②
③
④
①
To Next Page
