22-2. Setting of *istDL
(1) Attach the master lens and Diaphragm set ring F8 to the camera.
(2) Set mode dial to [M] and focus mode to [MF]
22-3. Item of adjustment
0: [Initialization]
1: [Product Data] Setting product information
2: [CCD Information] Setting CCD information
3: [Pre-Process Gain] Pre-process gain adjustment
4: [ISO Base Gain] ISO base Gain adjustment
5: [White Defection] Compensate dead pixels on
CCD (White), refer to the 22-5 )
22-4. Procedure of adjustment
(1) Connect the AC adaptor to the camera.
(2) Connect the camera to the computer by the USB cable
(3) Attach the Master lens to camera while confirming the aperture of Master lens is set to F8.
(4) Turn the main switch ON, and then confirm that the camera is recognized as a [Removable
Disk] under [My Computer]
(5) Set the camera and master lens toward center of light window of LB3300, and then cover the
whole camera by using a dark curtain and so on.
(6) Start the adjustment software (CSAdjust.exe). Input ID number of master lens and then click
OK button.
[CAUTION] The adjustment software ends compulsorily while indicating the following error
message if ID number which is not correct is input and OK button is clicked. In that case, restart
the adjustment software and then input correct ID.
Lens ID No. Input display Error display

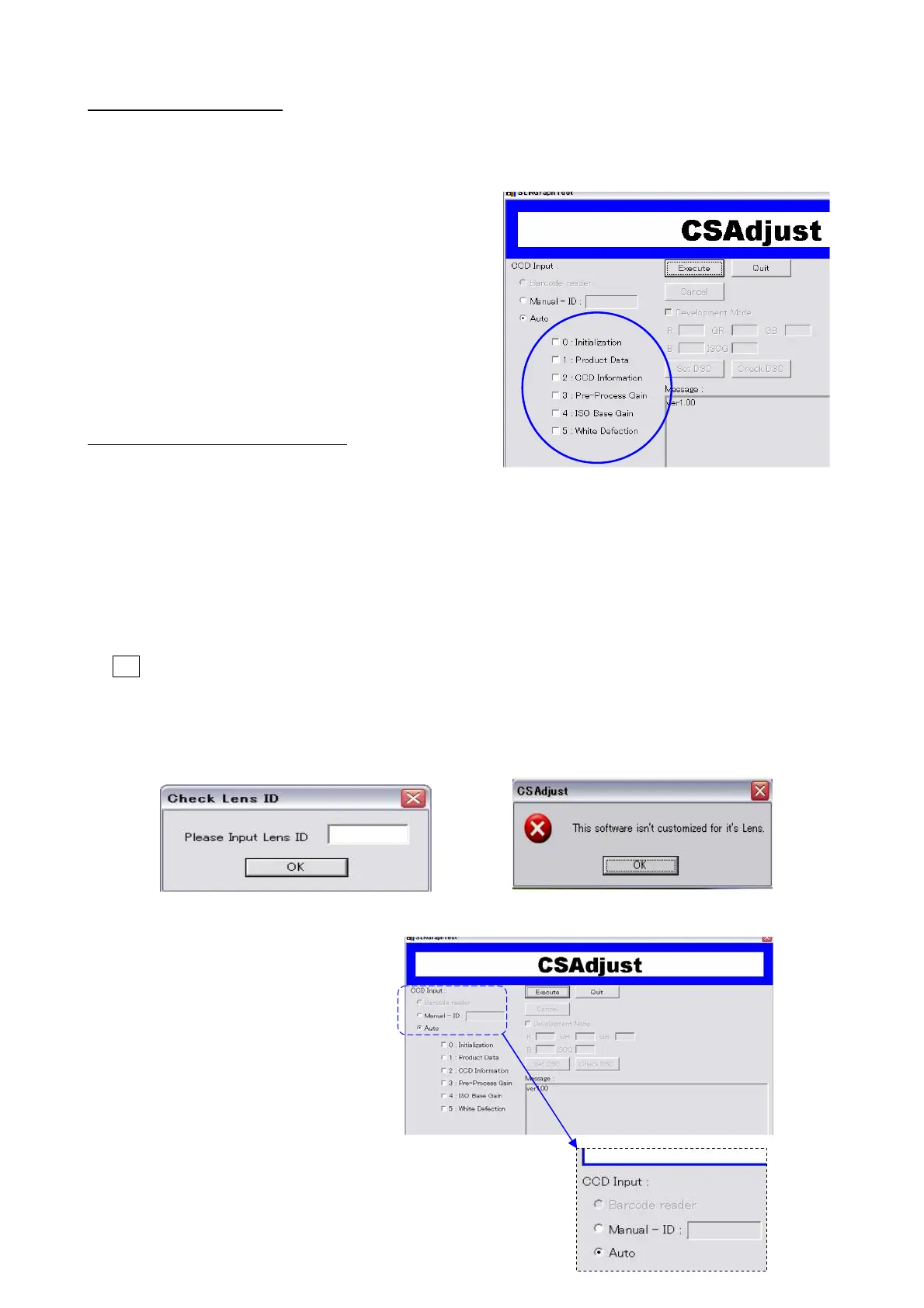

(7) The following window will be
displayed when the adjustment
software is started.
