76570EM 36
(2) Connect AC adaptor to the camera.
(3) Remove SD card from the camera.
(4) LCD display should not light up when press release button half way.
(5) Remove AC adaptor, Top cover, Bottom cover and battery cover from the camera.
(6) Unsolder the Main SW land on T200.

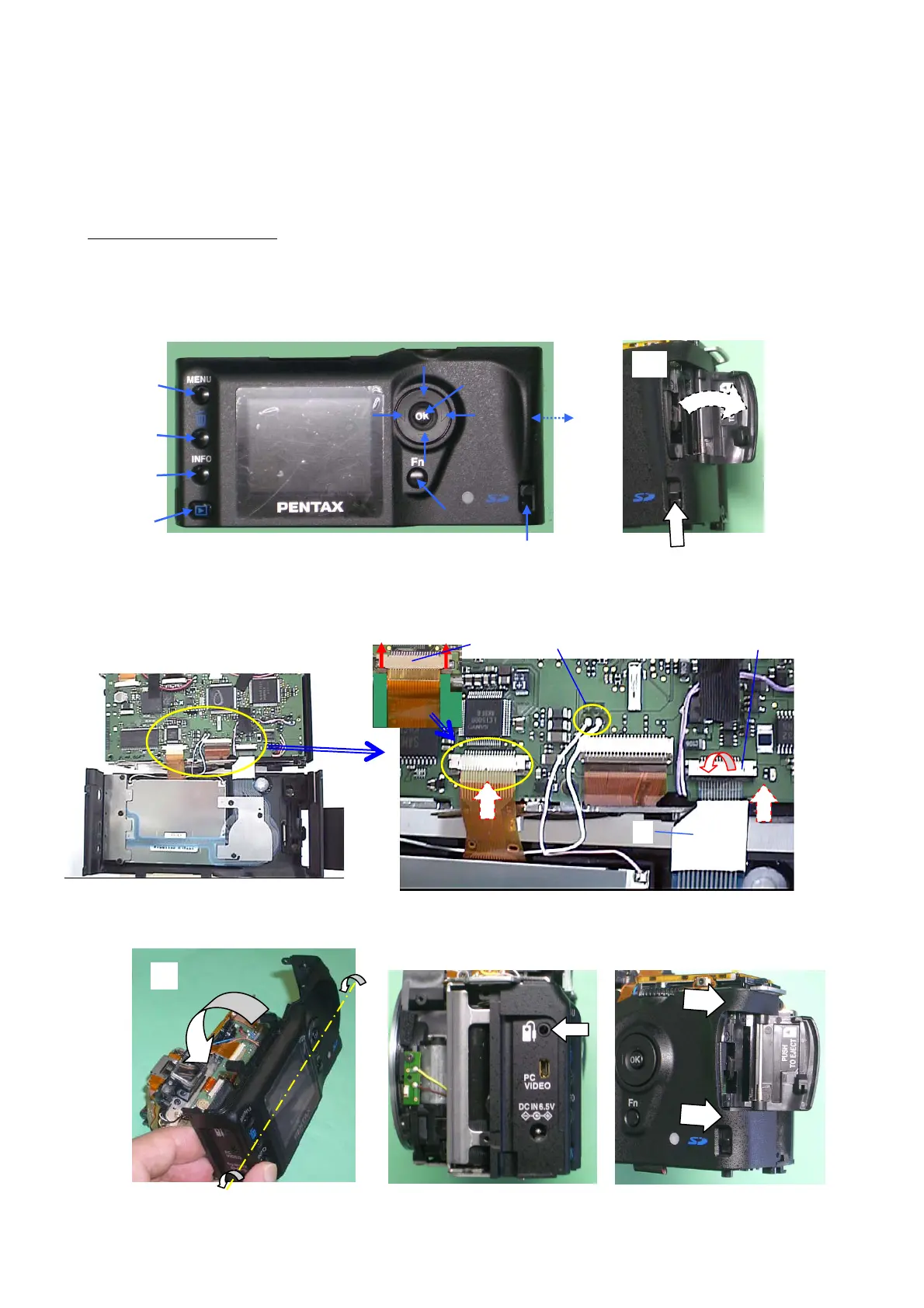

15. A201 ( Rear cover)
*Confirm the installation of parts before installing A201.
(1) Check the function of SD card cover (opening and closing) and each switch on the rear cover
(2) Keep open the SD card cover before installing, otherwise card cover SW(T100) will be broken
(3) Connect A231(Flexible) to the connector. (Flip lock)
(4) Connect O301(Flexible) to the connector. (Slide lock)
(5) Solder 2 lead wires (Pink, White)
(6) Attach A233.
(7) Attach rear cover to the body.
(8) Fix rear cover from (A) side, then fix (B) side
(2)
(1)
(7)
(8)-A
(8)-B
⑥
⑤
③
④
To Next Page
