76570EM 18

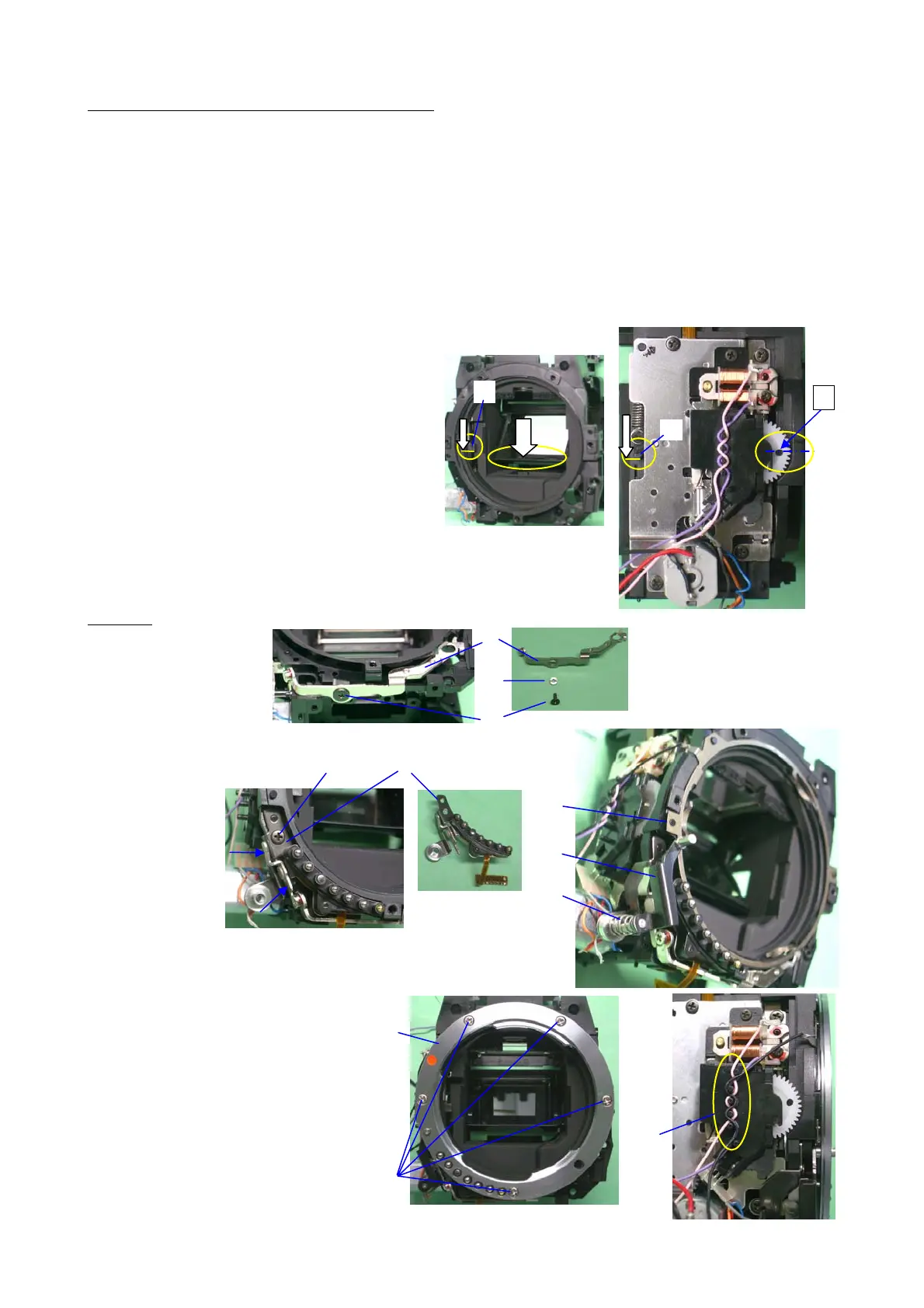

4. [CONF] Checking the mirror function
[Required equipment] Power supply
(1) Confirm the following items while applying DC3V to the mirror motor. (Red wire: Positive)
1) The mirror seat must be moved smoothly without noise.
2）The shutter charge lever (b) and sliding plate (a) must be moved smoothly and surely go up
and down.
(2) Set the mirror seat to the down position while applying DC1.5V.
(Fine adjustment is possible when turn white gear at behind of G100)
Mirror down: mirror, sliding lever, shutter charge lever at down position.
White gear must be positioned as shown in figure. ---*
(3) Both mirror seats 1
st
and 2
nd
must be
returned smoothly to the original
position when both mirror seats are
pressed inward about 3mm by finger
pressure.
5. A104
(1) A133
(2) 0-A121
(3) TY-CNL-F1.4x4.0
(4) 0-A126 and related parts.
(5) TY-CNL-D1.7x3.0
(6) A105
(7) A110
(8) 0-A108
(9) A104
(10) TY-CNS2.0x4.5Ni
Tighten 5 screws diagonally.
(11) Arrange lead wires on G100.
(1)
(2)
(3)
(7)
(8)
(6)
(9)
(10)
(11)
(4)
(5)
*
b
a
To Next Page
