Pentax ist DL User Manual

76570EM 37

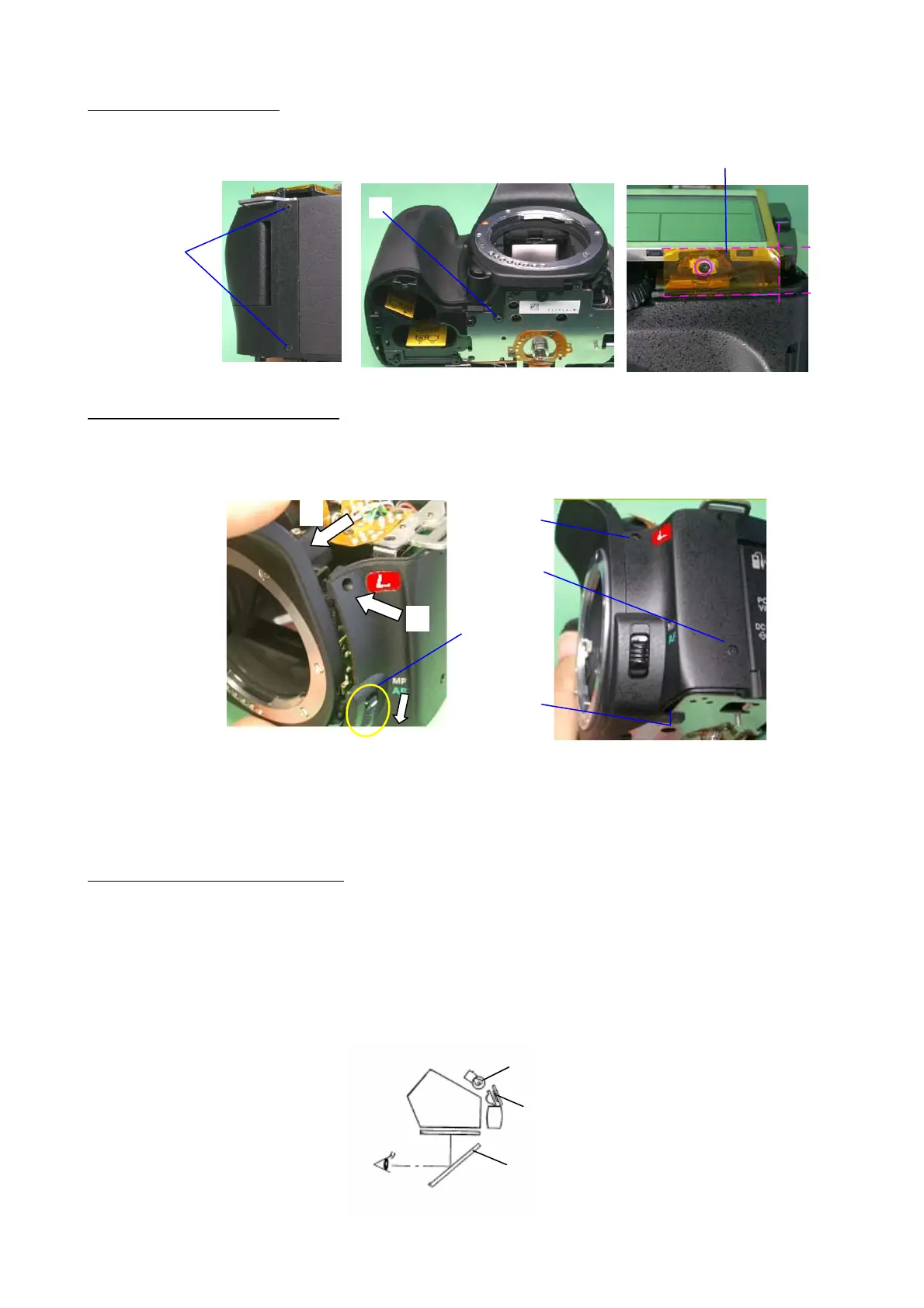

16. A150 (Front cover)
(1) A73（TY screws 4.5mm x 2）
(2) CNL-D1.7x2.5
(3) T63
17. A161 Side cover ( Front）
(1) Set the AF_SW to AF (down position) and the attach to the body.
(2) Install A161 as shown figure below.
(3) A74（TY screw 5.5mm）
(4) A62（Screw3.5ｍｍ）
(5) CNL-D1.7x2.5
18．[ADJ] Positioning 0-J100
[Required equipment] Penlight or equivalent
(1) Cover the eyepiece with a black tape
(2) Strike light by a penlight to the photo sensor as shown in the figure right, and search the
position where the pattern of the photo sensor can be seen on the 1
st
mirror from the mount ring
side.
[Ref.] Attaching brighter lens is advisable to assist better visibility. (Ex.: FA 50mm f/1.4 Lens)
(1)
(
2
)
(3)
①
②
②
④
③
⑤
Penlight
J100
1
st
mirror
