76570EM 27

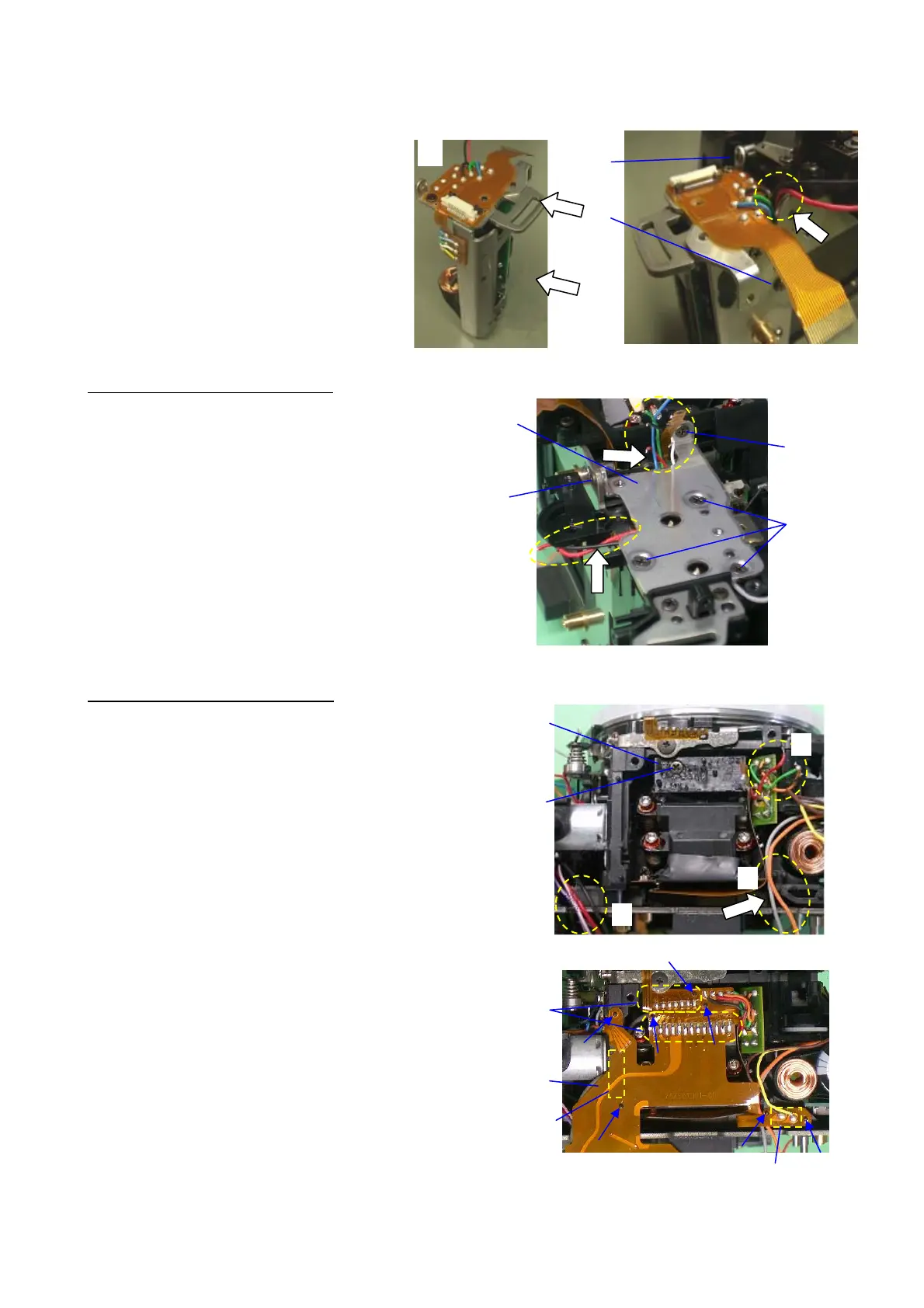

4. 0-Q200 (Flash PCB)/A5/A15
(1) 0-Q200/A5/A15
* Arrange the lead wire as shown figure
right.
(2) TY-CNL-D1.7x4.0
(3) CNL-D1.7x2.5
5. A6（Left shoulder plate）
(1) A6 --- Pay attention the position of lead wires.
(2) TY-CSM1.7x4.0 x 3
(3) TY-CNL-D1.7x4.0
(4) CNL-D1.7x2.5
6. T901（Lower flex board）
(1) A141
(2) TY-CNL-D1.7x3.5
(3) Arrange the lead wires, see picture.
(4) Install T901（DT(4x6), DT(3x10)）
(5) Positioning the flexible board of 0-M100 and
T301 to T901.
(3)
(2)
(4)
(1)
②
③
①
①
②
③
③
③
④
⑤
DT(4x6)
DT(3x10)
