76570EM 17

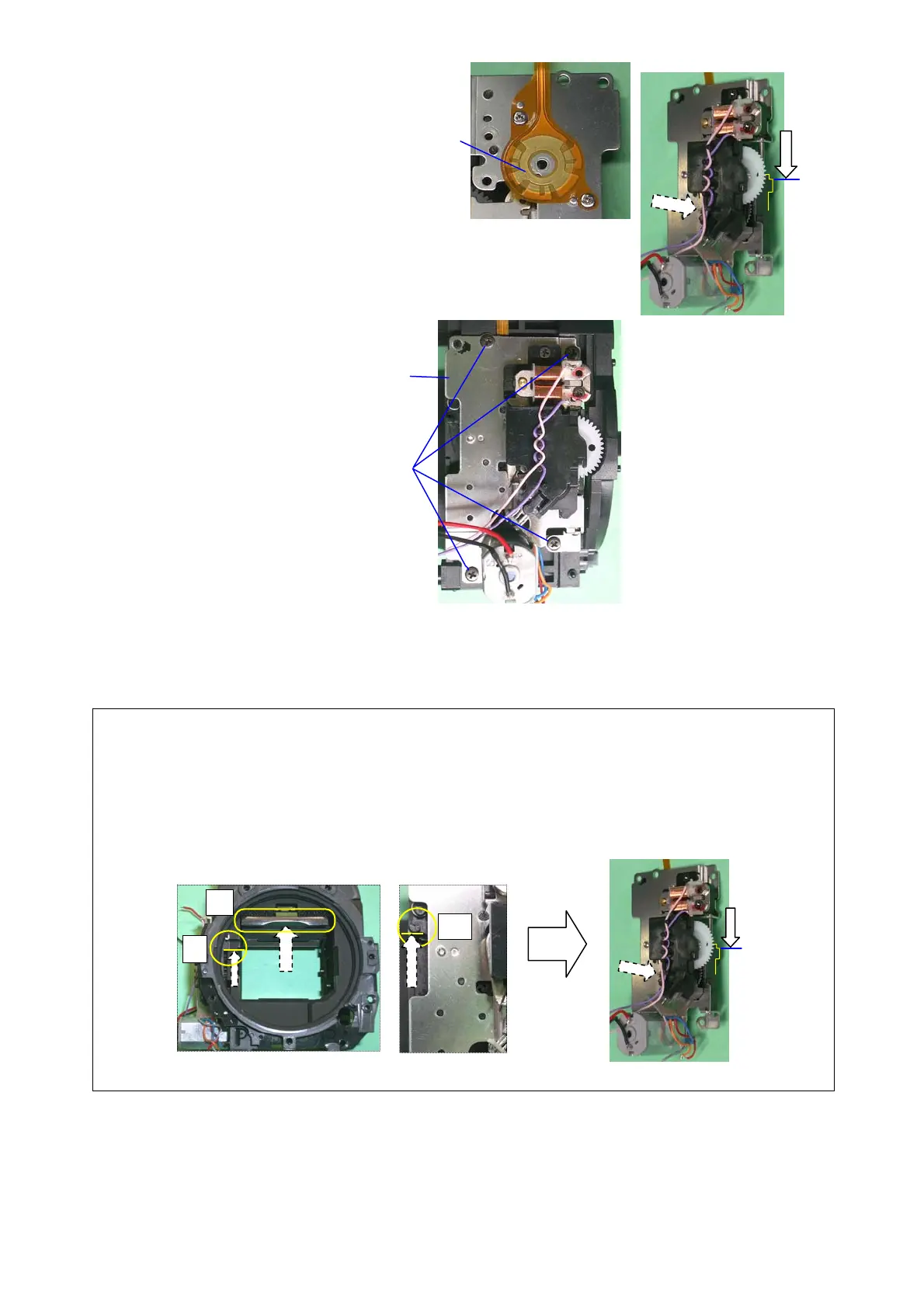

(17) Clean code plate by solvent and apply G151.
(18) Latch the lever of G100 while pushing
down the sliding plate.
(19) G100 --- Surely install G100 without
any gap between plate.
(20) TY-CNL-D1.7x3.0 x4
(17)
(18)
(20)
(19)
[Notice for Disassembly] Set the mirror seat at top end position before removing 0-G100.
1. Supply DC1~2V to 0-S250 (Red lead wire: Positive) and set the mirror seat at top end
position. (Mirror seat (1) and Sliding plate (2) must be top end position, Shutter charge lever
must be top end position (3))
2. Latch the lever of G100 while pushing down the sliding plate.
(1)
(2)
(3)
To Next Page
