76570EM 33

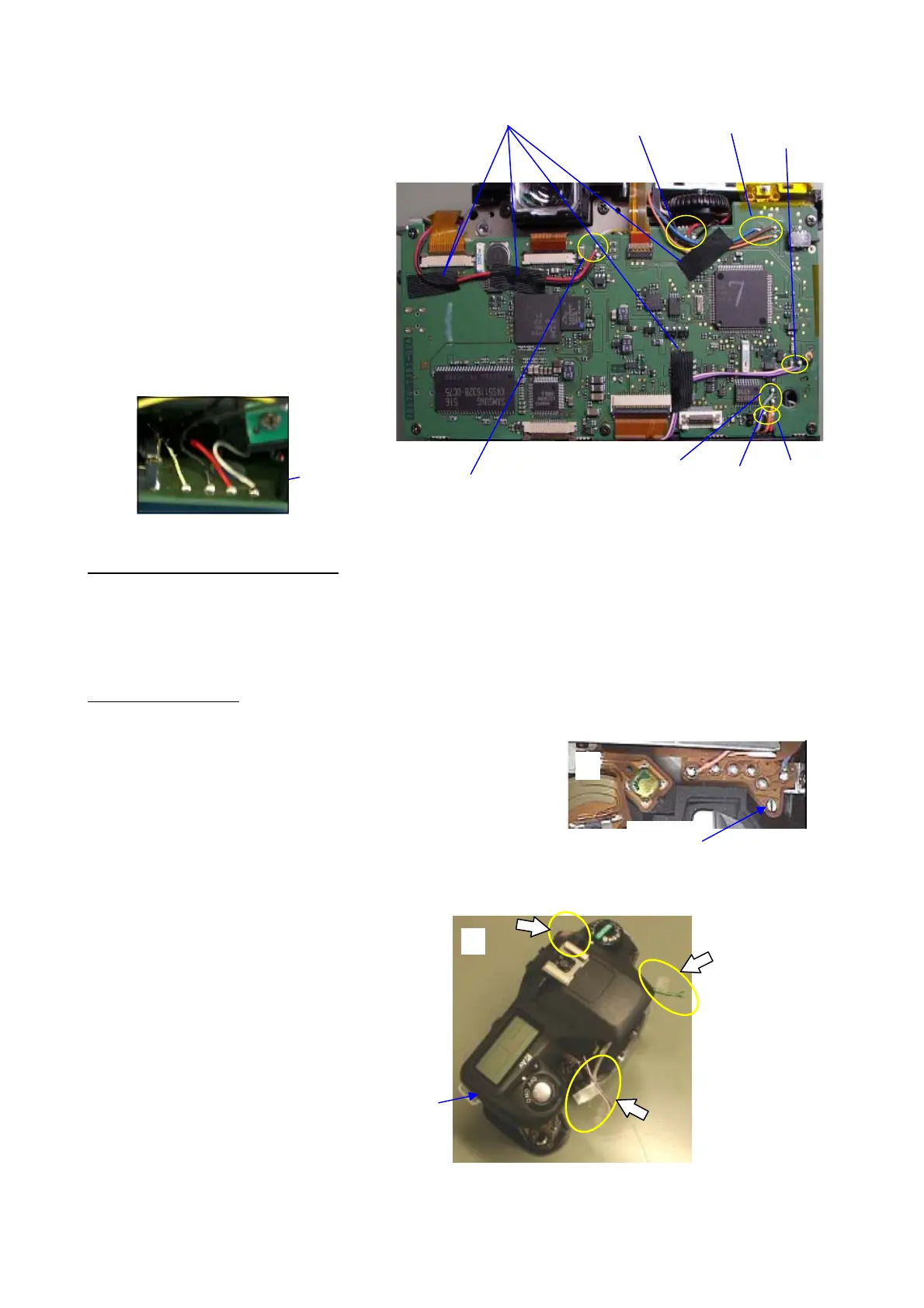

Solder lead wires
(8) Red, black -- Q200
(9) Red, Black -- A14
(10) Pink, purple – G100
(11) Blue,Brown,Orange –T200
(12) Gray, Orange – S300
(13) Red, Black -- S250
(14) Arrange lead wires with BT
(15) Yellow,Black (T10)
Red, White (N300)
↓
14. [CONF] Function check 1
Preparation: SD card x 3 (FW for service, Test mode ON, Test mode OF)
Regulated DC power supply (8V・3A), Circuit tester, DC code, TV color monitor, Video cable,
AC adaptor, Lens (FA 50mm F1.4), Top cover (0-A301), Bottom cover (A401), Battery cover (A412)
14-1. Preparation
* Prepare the following procedure for function check
(1) Connect video cable to the TV monitor
(2) Solder the Main SW land as shown figure right.
(3) Arrange the lead wires on the Top cover as shown figure below.
(4) Install top cover to the body
(Do not pinch the lead wires)
Black
⑭
⑧
⑨
⑬
⑪
⑩
⑫
⑮
Main SW
Land
②
③
A69
(TY 3.5mm)
To Next Page
