76570EM 2
PREPARATION
The following preparations are required before disassembling and assembling the camera.
1. Prepare the Jigs, tools and testers. (Refer to the Table of Jigs, tools and testers.)
2. Make the preparation for the digital adjustment. (Refer to the Preparation of digital adj.)
Preparation of Digital Adjustment
[Required equipment]
Programmed software 76570 (For Digital adjustment, contained CD-R)
Computer (for Digital adjustment)
SD card 6 pieces (8MB or above)
SD card reader or USB cable (I-USB17) … For connecting with PC
1. Prepare SD card (6 pcs) for confirming adjustment
Prepare SD card (6pcs).
(1) For product FW (Firmware) of *istDS (2 pcs) : use for service and updating FW for customer.
(2) For switch test.
(3) For test mode ON.
(4) For test mode OFF.
(5) For Default setting. (Initialize)
2. Installing procedure of the Adjustment Software (Setting of the Computer)

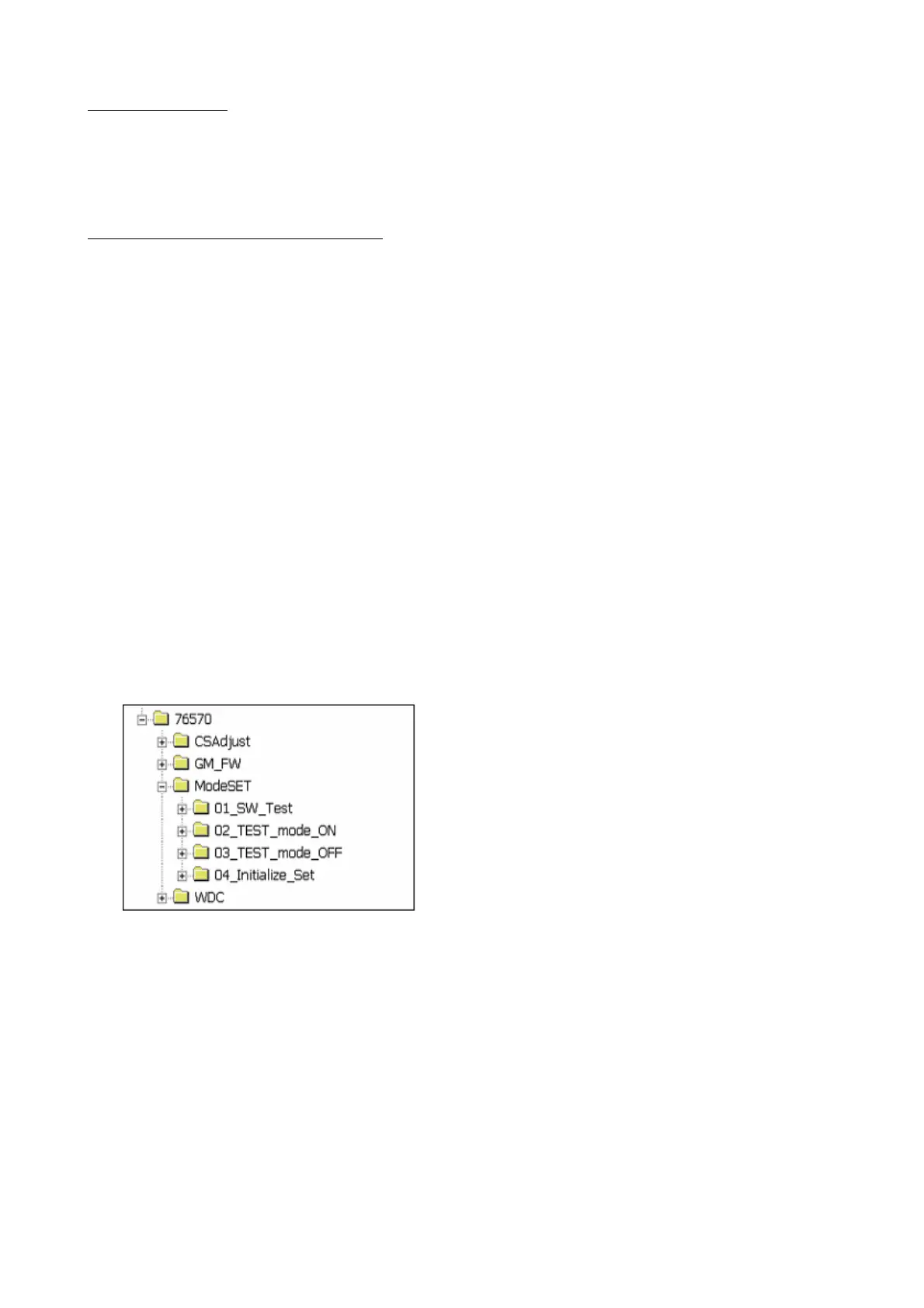

(1) Copy the [76570] folder from the Programmed software contained in the CD-ROM to [C: drive]
as shown in the picture below.
(2) Copy the file from each folder (01~04) of [ModeSET] to each SD card.
[CAUTION] Since the name of all files is same, you should distinguish them by name label etc.
(3) Copy the each file of [kb392b.bin] and [fwdc137b.bin] from [GM_FW] holder to two SD cards
individually.
*[kb392b.bin] should be used for repairing the camera.
*[fwdc137b.bin] should be used for updating FW of customer’s camera.
[CAUTION] You should use latest firmware whenever creating the SD cards for updating.
To Next Page
