76570EM 26

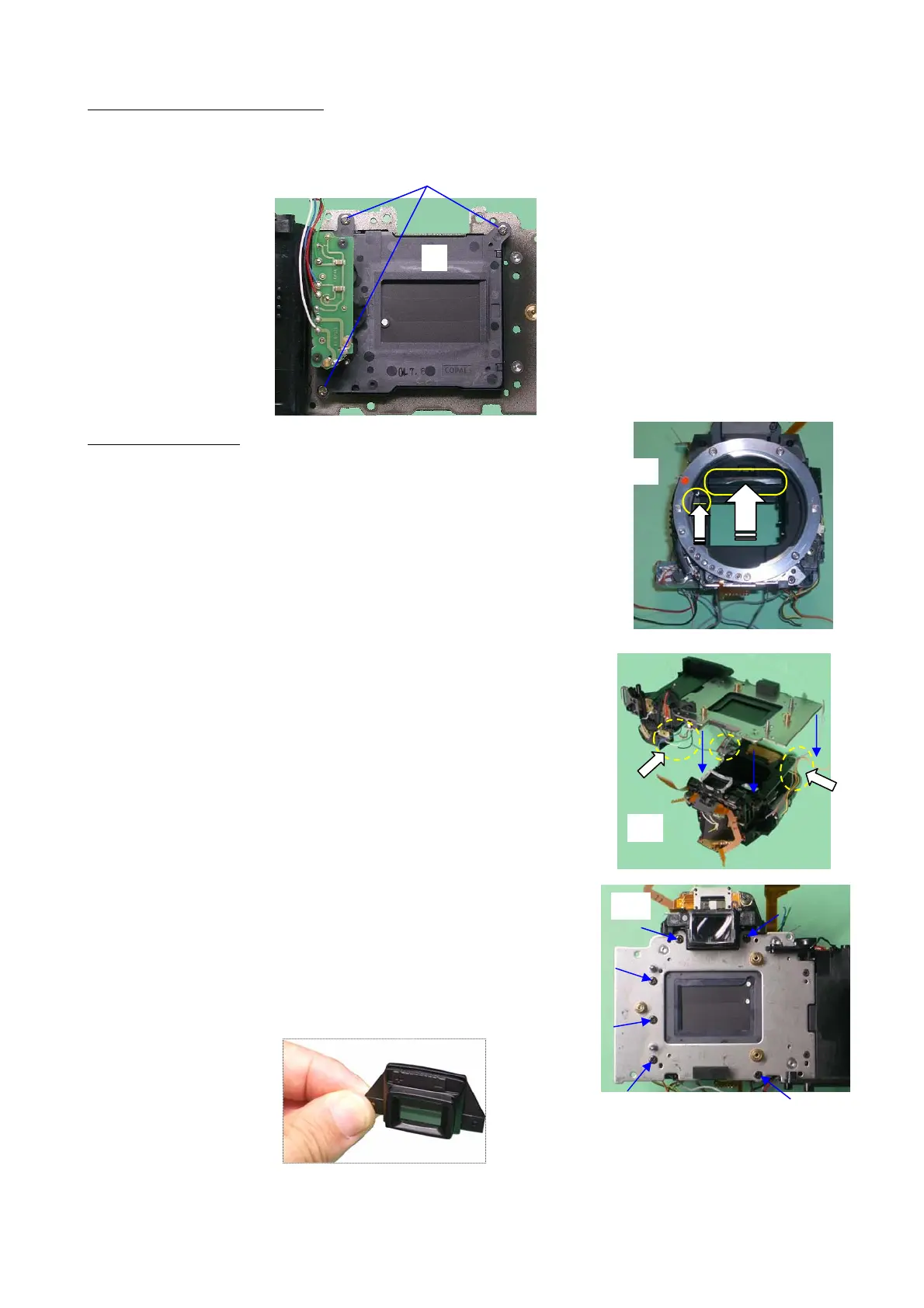

2. 0-E000（Shutter block）

(1) 0-E000--- Check there is no dust, scratch.

(2) A70 – x3

3. Front housing

(1) Apply DC 1~2V to the mirror motor, and set mirror up position.

(Red --- +)

(2) Attach body plate to the mirror housing.

* Pay attention the lead wires.

(3) TY-CNM2.0x4.5 x 6

(4) Apply DC 1~2V to the mirror motor, and set mirror

down position.

*To prevent the scratch of the eyepiece lens, attach M311.

(1)

(3)

(2)

②

①

Table of Contents2
Preparation3
Preparation for Digital Adjustment3
Disassemby and Assenbly4
Outline of Disassembly and Assembly4
Caution4
Chart for Assemble, Adjustment and Confirmation4
Disassembly and Assembly Procedures7
Disassembly Procedure of Main Body7
Front Housing Block15
Assembly and Disassembly Procedure of Front Housing Block16
0-G10018
A10419
M30121
0-O10022
Preparation23
Adjustment24
0-S30025
0-J10025
Assembly Procedure of Main Body26
0-E000 (Shutter Block)27
Front Housing Block27
A6 (Left Shoulder Plate)28
T901 (Lower Flex Board)28
Preparation30
Adjustment31
0-T600 (CCD Block)32
Preparation34
Setting Test Mode36
Shutter Release and Exposure36
Af Function36
A201 (Back Cover)37
A150 (Front Cover)38
A161 (Forward Right Cover)38
[Adjust] Positioning 0-J10038
0-A301 (Top Cover)39
Preparation40
Setting of Computer44
Setting of *Istds45
Procedure of Wdc Adjustment45
A401 (Bottom Cover)49
Confirmation of the Metering Function50
Confirmation of the Exposure Value (for Reference)50
Confirmation of White Balance51
Confirmation of the Battery Exhaustion Warning52
Confirmation of Af Focus Position by Taking Picture52
Default Setting54
Fw Firmware55
Checking Firmware Version55
Updating Firmware Version (1)55
Updating Firmware Version (2)56
Technical Information57
Battery Consumption Current57
Block Diagram58
Table of Error Code (Digital Adjustment)59
AE Program Line and APEX Chart (ISO 200)60
PROGRAM SOFTWARE FLOW CHART (SLR Function)61
Information of Jigs, Tools and Testers for *Istds68
Table of Jigs, Tools and Testers68
Method for Making Temporally Bottom Cover70
Method for Making Flash Pop-Up Tool70
AF Confirmation Chart and Scale71
