76570EM 7
(2)
(1)

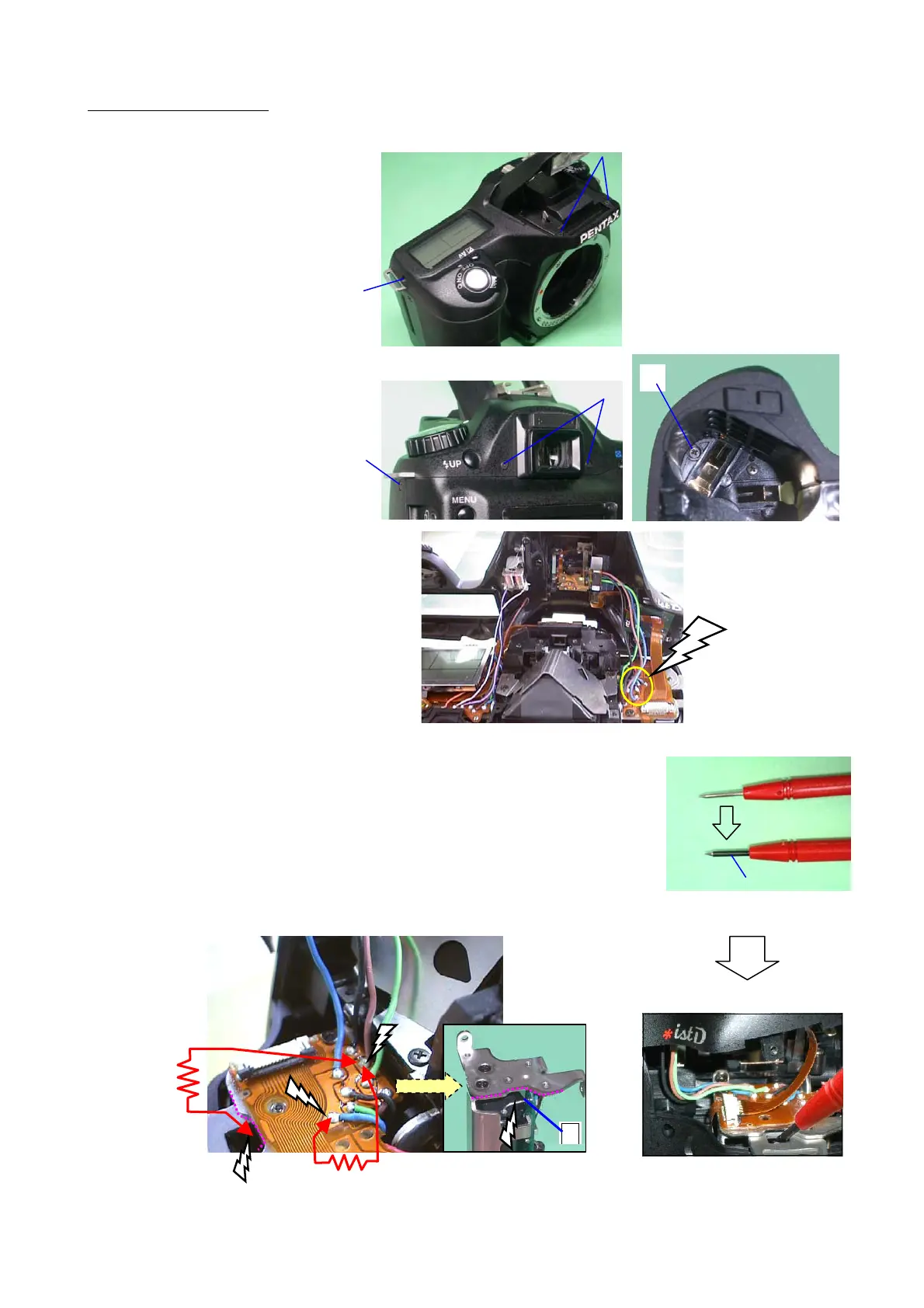

3. 0-A301 (Top cover)
(1) A73 (TY screw x2 4.5mm) --- Removed at section 1.- (2)
(2) A69 (TY screw 3.5mm)
(3) A72 (Screw x2 12mm)
(4) A73 (TY screw)
(5) TY-CNL-D 1.7x6.5
(Inside of Battery chamber)
(6) Lift up top cover
[Caution]
Be careful short and electric shock when
handling the camera
(7) Discharge the main capacitor
[Caution] To prevent short circuit with strap lug, isolate discharger or
resister by insulation tape (except tip) as shown figure right.
Discharge the main capacitor by using 100-1k resistor.(Two position)
(7)-1. Discharge between Blue and Brown lead wire land on T200.
(7)-2, Discharge between Brown lead wire on T200 and (+) terminal
of the main capacitor.
(5)
(4)
(3)
Insulation ta
e
100 ～ 1k
-1
＋
-2
⑥
To Next Page
