UC***-18GS series
Installation
3 Installation
3.1 Safety Information
3.2 Preparation
Unpacking the Device
1. Check the packaging and contents for damage.
In the event of damage, inform the shipping company and notify the supplier.
2. Check the package contents against your order and the shipping documents to ensure that all
items are present and correct.
Should you have any questions, direct them to Pepperl+Fuchs.
3. Retain the original packaging in case the device is to be stored or shipped again at a later date.
3.3 Mounting

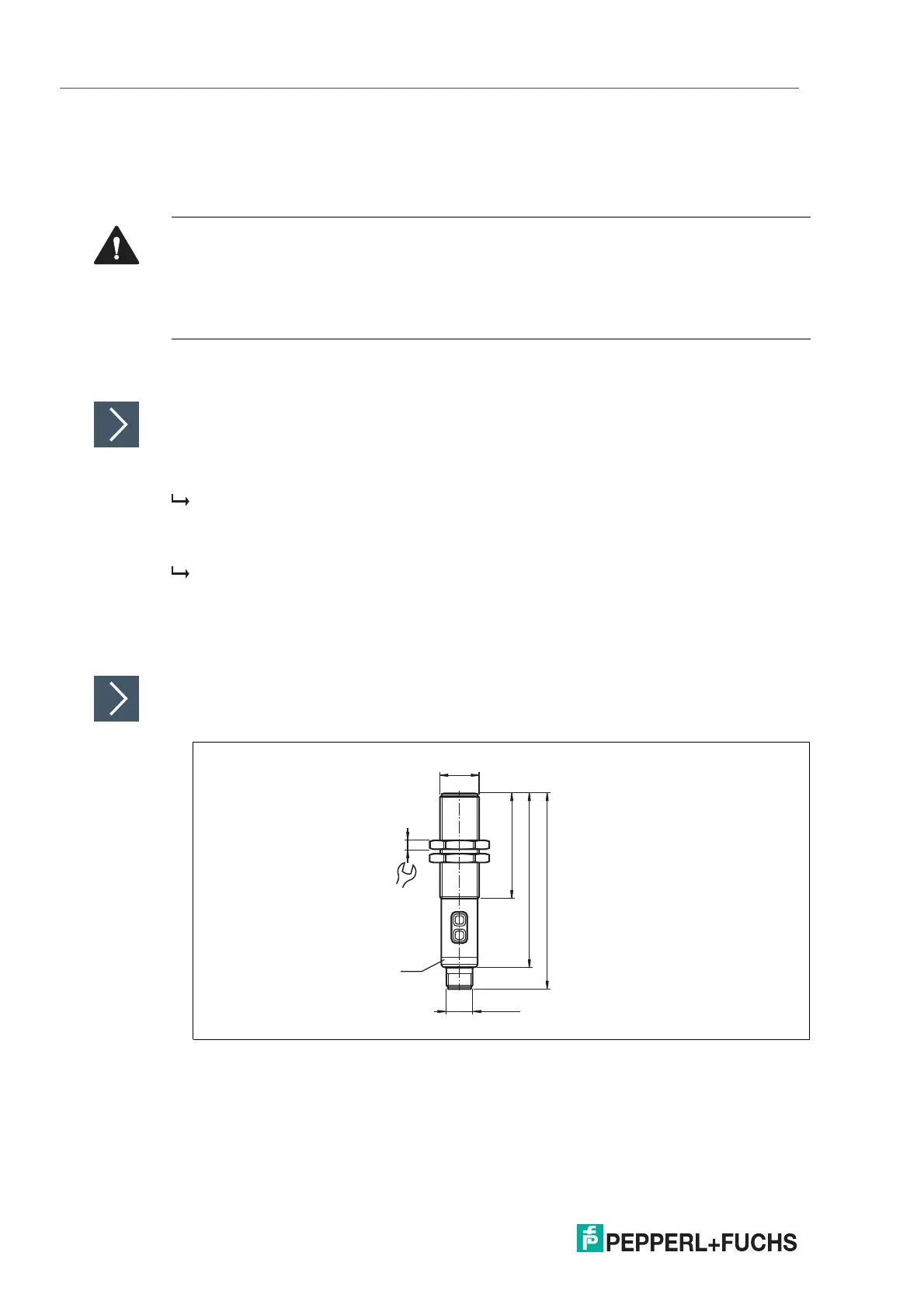

Mounting UC***-18GS Sensors
Use M18 nuts (included as standard) to secure the sensor and tighten to a maximum torque of
30 Nm.
Figure 3.1
Caution!
Risk of short circuit
Carrying out work while the system is energized may result in damage to the device.
• Always disconnect the supply voltage before carrying out work on the device.
• Only connect the device to the supply voltage once all work has been completed.
LED
4
24
48
80
90
M12 x 1
18 x 1
