UC***-18GS series
Configuration and Analysis with DTM via IO-Link
2020-11
29
7.4 Sensor Configuration Menu Option

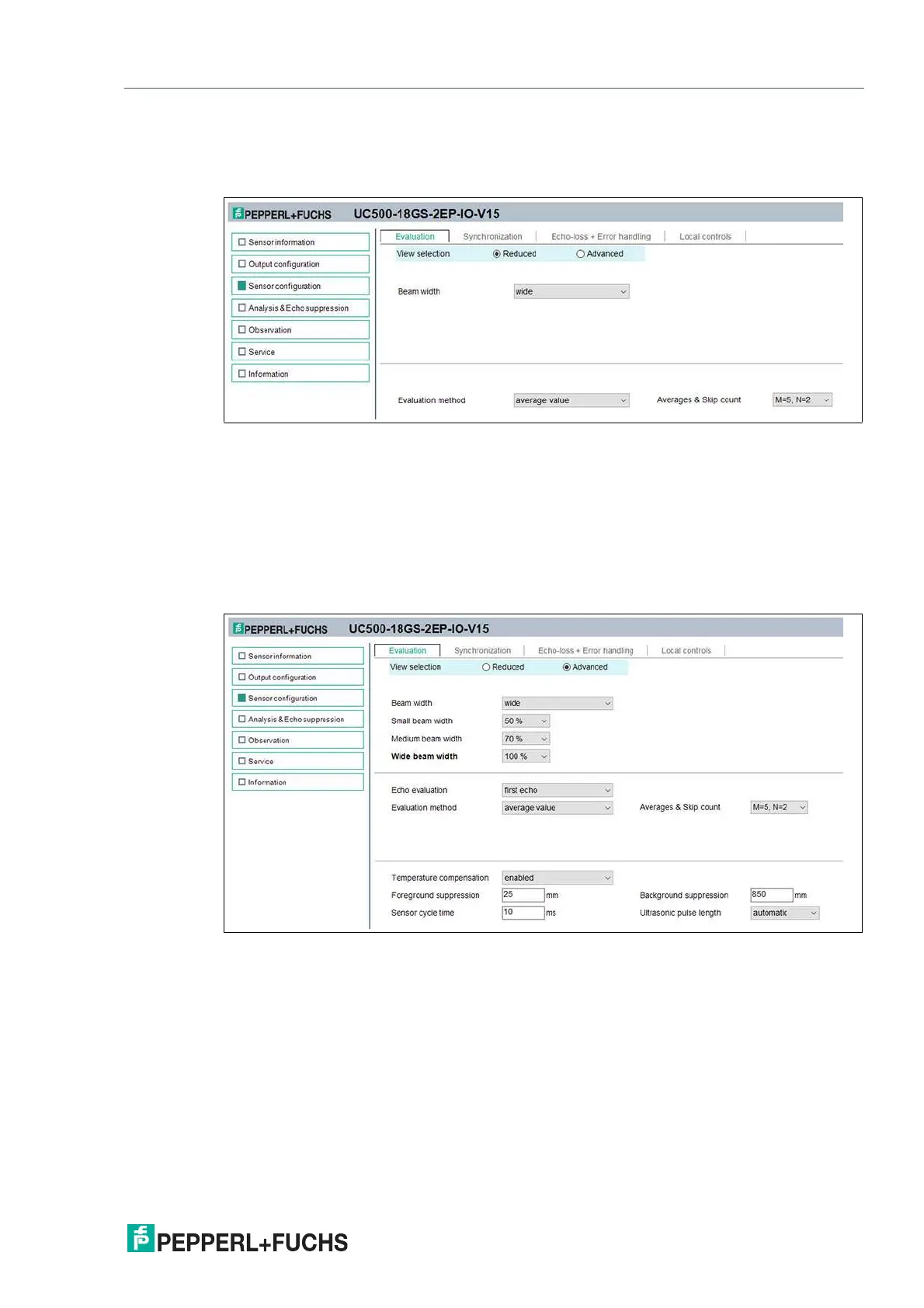

Overview of the Sensor Configuration Menu Option
Figure 7.4
The Sensor configuration menu option consists of 4 tabs
• Evaluation (with reduced and advanced view)
• Synchronization
• Echo loss + Error handling
• Local controls
Evaluation Tab (Advanced View)
Figure 7.5
In the Evaluation tab, you can set the functions which impact evaluation logic with sensor mea-
surement. You can choose between a reduced view for basic settings and an advanced view
for evaluation expert settings.
