UC***-18GS series
Configuration and Analysis with DTM via IO-Link

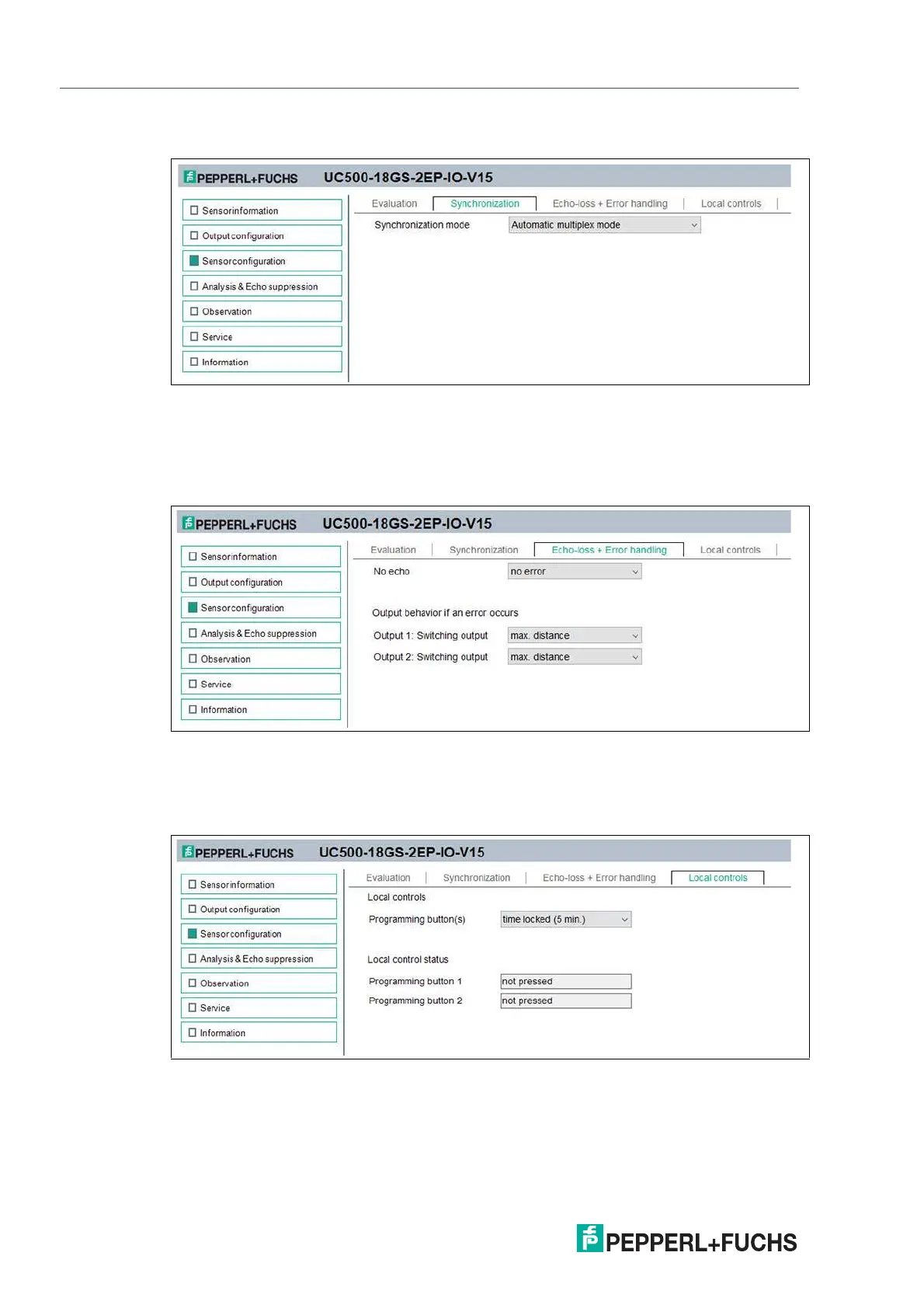

Synchronization Tab
Figure 7.6
In the Synchronization tab, you can set the required synchronization mode if you want to sup-
press cross-talk when operating several UC***-F77-...-IO-.. sensors. Details of the individual
synchronization modes can be found in the chapter "Synchronizing Multiple Sensors."
Echo Loss + Error Handling Tab
Figure 7.7
In the Echo loss + Error handling tab, you can adjust the evaluation of a loss of echo and the
error output behavior of the sensor output.
Local Controls Tab
Figure 7.8
In the Local controls tab, you can lock or activate the programming button, or use a time lock
and display the status of the programming button (pressed / not pressed).
