UC***-18GS series
Sensor Programming via the Programming Button

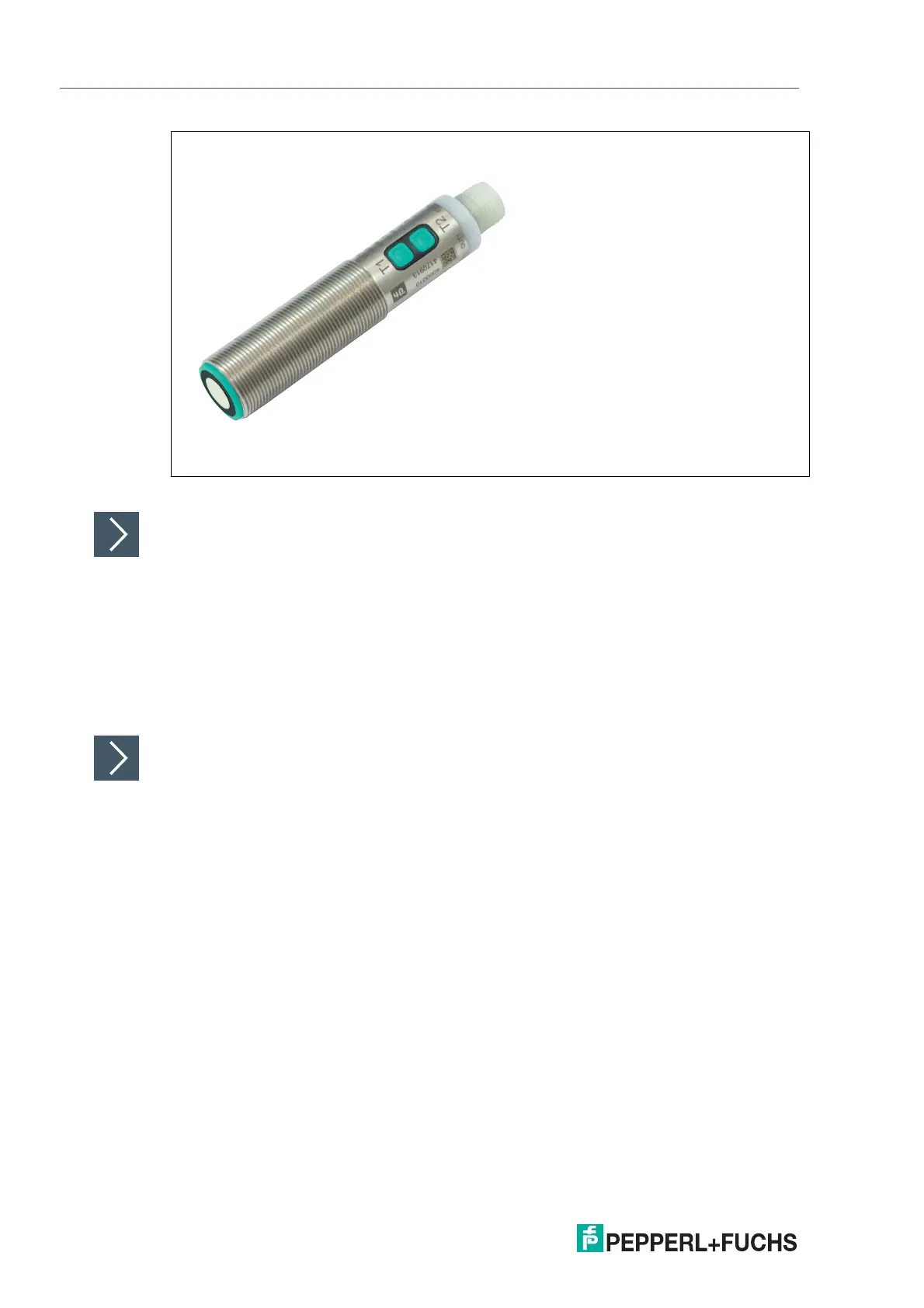

Figure 5.1
Programming Switch Point 1 / Near Limit (SP1)
If the object is detected correctly during the programming process, the yellow LED flashes
slowly. If no object is detected, the yellow LED flashes at a higher frequency. A flashing red LED
during or when completing the programming process indicates unreliable object detection. In
this case, correct the alignment of the object during the programming process until the yellow
LED flashes. Only then will the settings be transferred to the sensor memory.
1. Position the object at the site of the required switch point / the required near limit.
2. Press and hold the T programming button for two seconds (yellow LED flashes)
3. Briefly press the T programming button (green LED flashes 3 times as confirmation). The
sensor returns to normal operation.
Programming Switch Point 2 / Far Limit (SP2)
1. Position the object at the site of the required switch point / required far limit.
2. Press and hold the T programming button for two seconds (yellow LED flashes)
3. Press and hold the T programming button for two seconds (green LED flashes 3 times as
confirmation). The sensor returns to normal operation.
