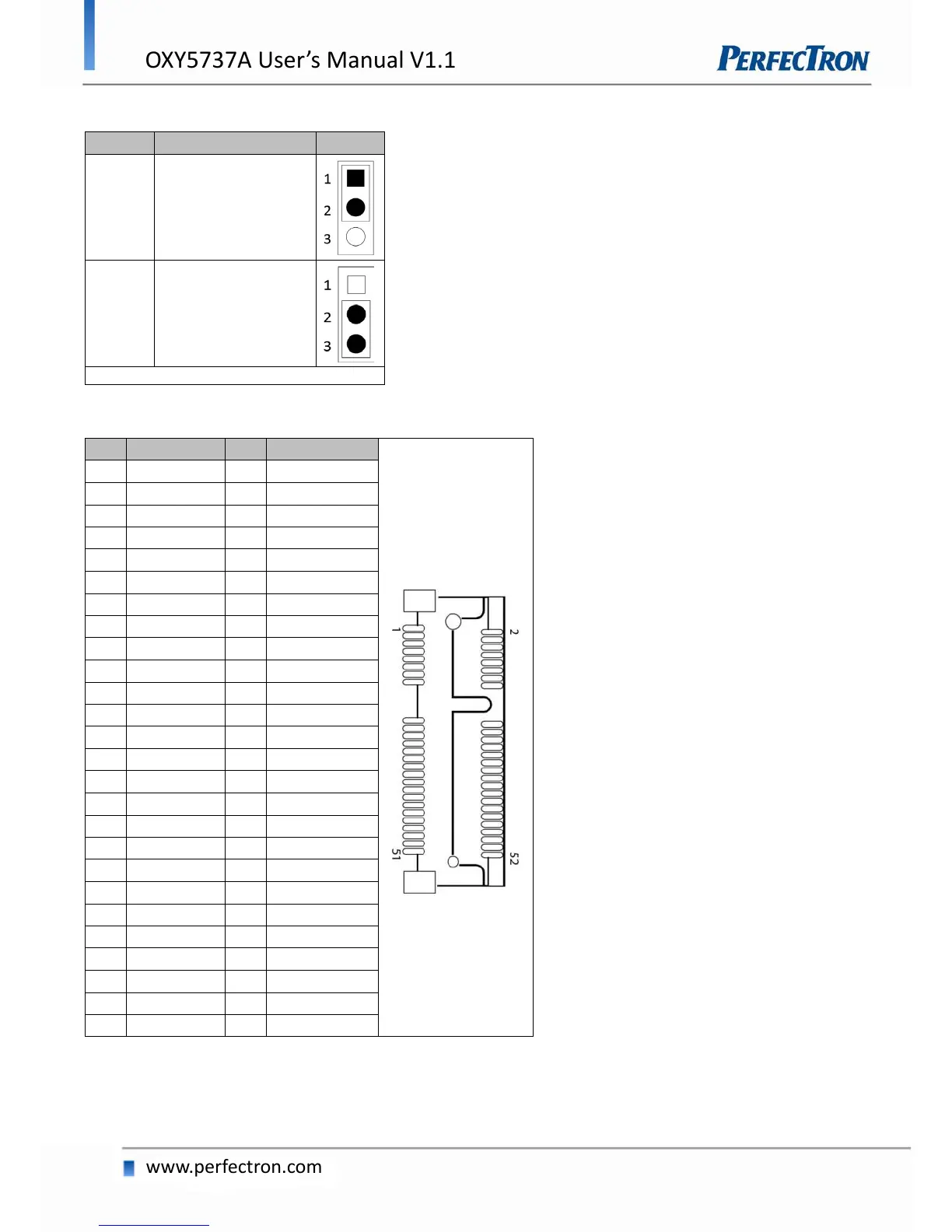

MCARD_SEL1: mSATA and mPCIE selection
Jumper
Function description
Setting
1-2
mPCIE
2-3
mSATA
Default setting: 2-3
MINI MPCIE: Mini PCIE Card Slot
PIN
DEFINITION
PIN
DEFINITION
1
WAKE#
2
3.3V
3
Reserved
4
GND
5
Reserved
6
1.5V
7
CLKREQ#
8
UIM_PWR
9
GND
10
UIM_DATA
11
REFCLK-
12
UIM_CLK
13
REFCLK+
14
UIM_RESET
15
GND
16
UIM_VPP
17
Reserved
18
GND
19
Reserved
20
W_Disable#
21
GND
22
PERST#
23
PERn0
24
3.3Vaux
25
PERp0
26
GND
27
GND
28
1.5V
29
GND
30
SMB_CLK
31
PETn0
32
SMB_DATA
33
PETp0
34
GND
35
GND
36
USB_D-
37
Reserved
38
USB_D+
39
Reserved
40
GND
41
Reserved
42
LED_WWAN#
43
Reserved
44
LED_WLAN#
45
Reserved
46
LED_WPAN#
47
Reserved
48
1.5V
49
Reserved
50
GND
51
Reserved
52
3.3V
