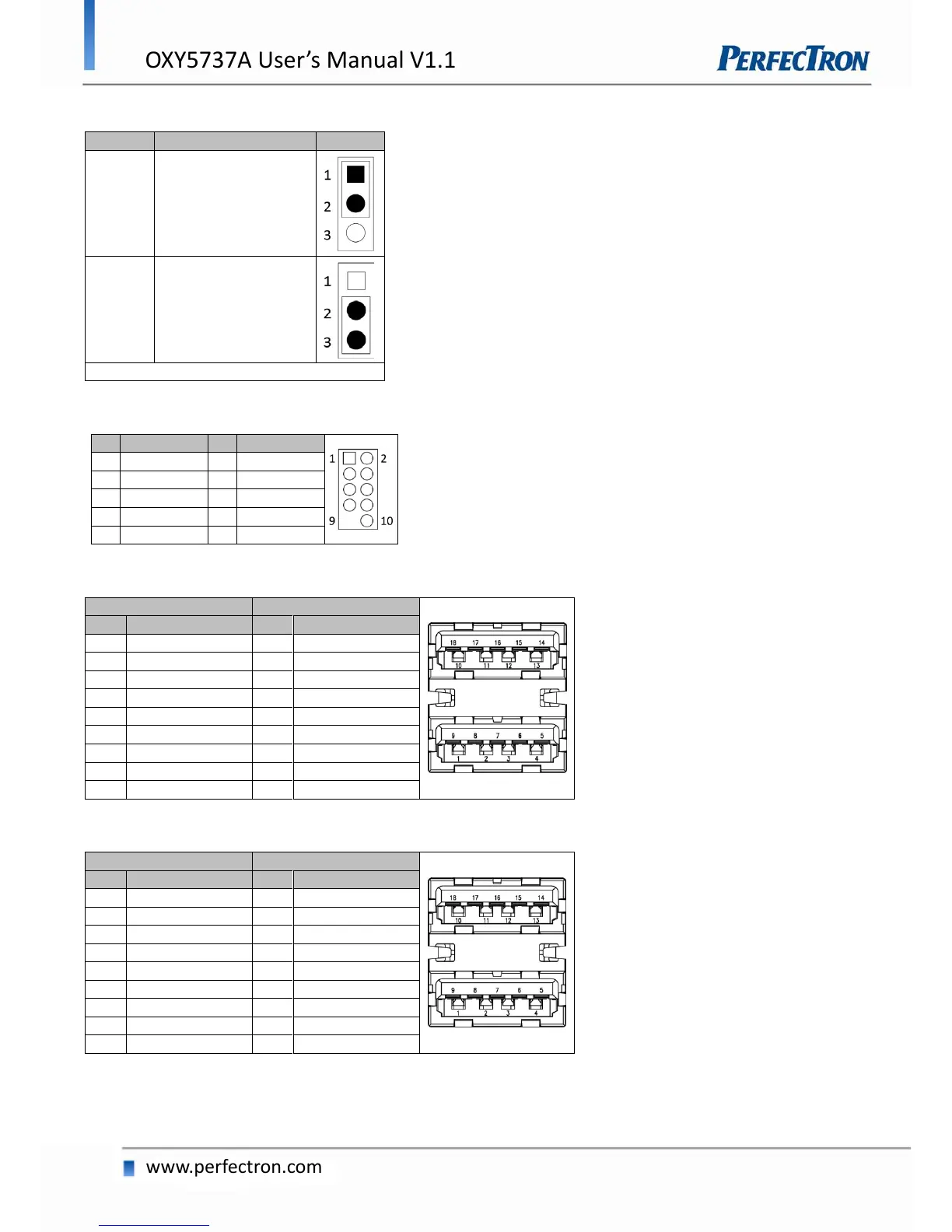

LAN_SEL2: StackPC/I210 selection
Jumper
Function description
Setting
1-2
STACK PC
2-3
I210
Default setting: 2-3
F_USB1: USB
PIN
DEFINITION
PIN
DEFINITION
1
USBV4
2
USBV5
3
USBD4-
4
USBD5-
5
USBD4+
6
USBD5+
7
GND
8
GND
9
NC
10
GND
USB3.0 CN18: USB*2
LOWER USB
UPPER USB
PIN
DEFINITION
PIN
DEFINITION
1
USB_VCC0
10
USB_VCC1
2
USBD2-
11
USBD3-
3
USBD2+
12
USBD3+
4
GND
13
GND
5
USB_SSRX1N_C
14
USB_SSRX2N_C
6
USB_SSRX1P_C
15
USB_SSRX2P_C
7
GND
16
GND
8
USB3TN1
17
USB3TN2
9
USB3TP1
18
USB3TP2
USB3.0 CN19: USB*2
LOWER USB
UPPER USB
PIN
DEFINITION
PIN
DEFINITION
1
USB_VCC2
10
USB_VCC3
2
USBD0-
11
USBD1-
3
USBD0+
12
USBD1+
4
GND
13
GND
5
USB_SSRX3N_C
14
USB_SSRX4N_C
6
USB_SSRX3P_C
15
USB_SSRX4P_C
7
GND
16
GND
8
USB3TN3
17
USB3TN4
9
USB3TP3
18
USB3TP4
