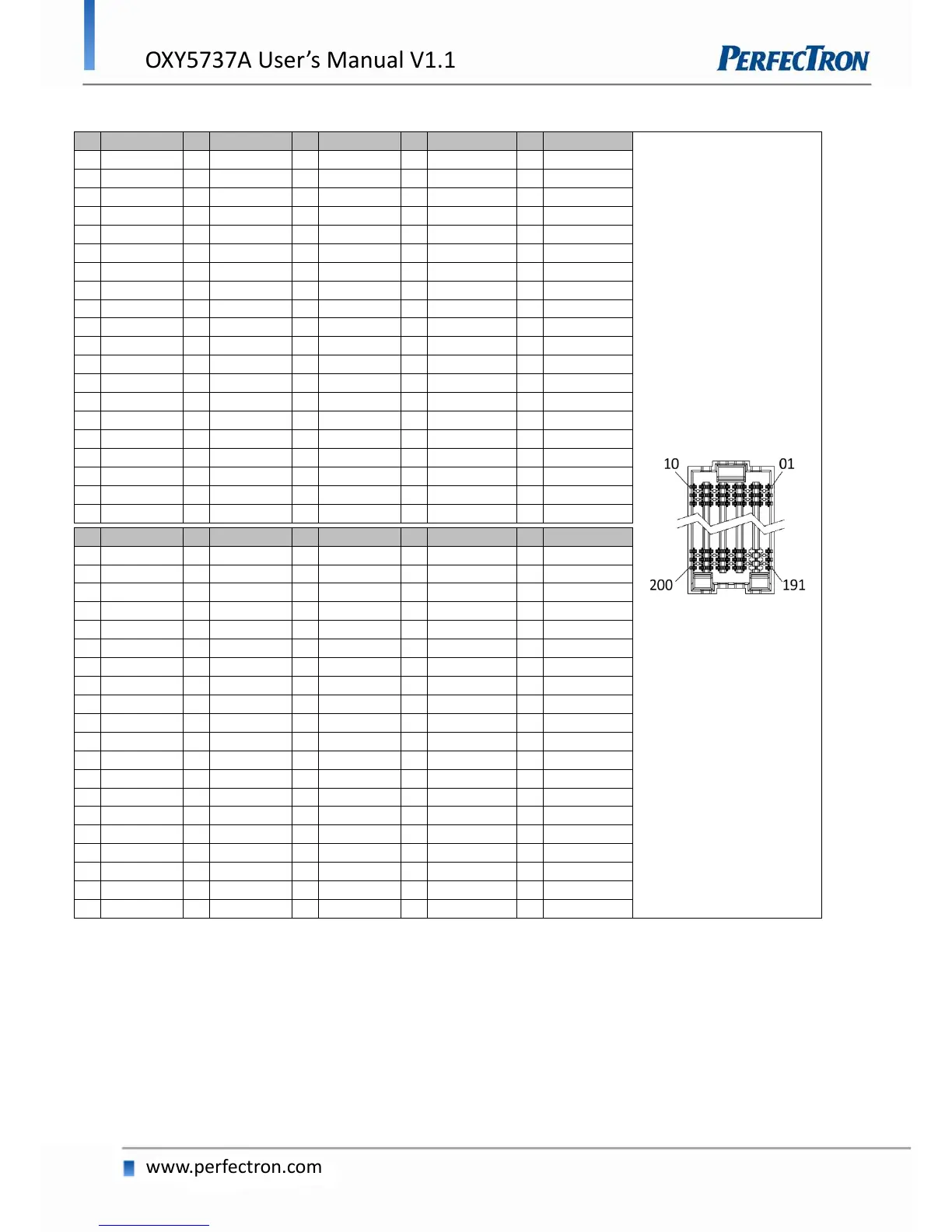

PerfecTron OXY5737A - FPE1: Stackpc FPE Top Connector

OXY5737A User’s Manual V1.1
www.perfectron.com
FPE1: StackPC FPE Top Connector
PIN
DEFINITION
PIN
DEFINITION
PIN
DEFINITION
PIN
DEFINITION
PIN
DEFINITION
1
NC
2
NC
3
NC
4
NC
5
NC
11
GND
12
NC
13
GND
14
NC
15
GND
21
NC
22
NC
23
NC
24
GND
25
NC
31
NC
32
NC
33
NC
34
NC
35
NC
41
GND
42
NC
43
GND
44
NC
45
GND
51
NC
52
GND
53
NC
54
GND
55
NC
61
NC
62
NC
63
NC
64
NC
65
NC
71
GND
72
NC
73
GND
74
NC
75
GND
81
PEG_TXP0
82
NC
83
PEG_TXP2
84
GND
85
PEG_TXP4
91
PEG_TXN0
92
PEG_TXP1
93
PEG_TXN2
94
PEG_TXP3
95
PEG_TXN4
101
GND
102
PEG_TXN1
103
GND
104
PEG_TXN3
105
GND
111
PEG_RXP_0
112
GND
113
PEG_RXP_2
114
GND
115
PEG_RXP_4
121
PEG_RXN_0
122
PEG_RXP_1
123
PEG_RXN_2
124
PEG_RXP_3
125
PEG_RXN_4
131
GND
132
PEG_RXN_1
133
GND
134
PEG_RXN_3
135
GND
141
PEG_TXP8
142
GND
143
PEG_TXP10
144
GND
145
PEG_TXP12
151
PEG_TXN8
152
PEG_TXP9
153
PEG_TXN10
154
PEG_TXP11
155
PEG_TXN12
161
GND
162
PEG_TXN9
163
GND
164
PEG_TXN11
165
GND
171
PEG_RXP_8
172
GND
173
PEG_RXP_10
174
GND
175
PEG_RXP_12
181
PEG_RXN_8
182
PEG_RXP_9
183
PEG_RXN_10
184
PEG_RXP_11
185
PEG_RXN_12
191
GND
192
PEG_RXN_9
193
GND
194
PEG_RXN_11
195
GND
PIN
NAME
PIN
NAME
PIN
NAME
PIN
NAME
PIN
NAME
6
NC
7
NC
8
NC
9
NC
10
NC
16
NC
17
GND
18
NC
19
NC
20
NC
26
GND
27
NC
28
GND
29
NC
30
NC
36
NC
37
NC
38
NC
39
NC
40
NC
46
NC
47
GND
48
NC
49
GND
50
NC
56
GND
57
NC
58
GND
59
NC
60
NC
66
NC
67
NC
68
NC
69
SPKR
70
NC
76
NC
77
GND
78
NC
79
GND
80
NC
86
GND
87
PEG_TXP6
88
GND
89
NC
90
CFG5
96
PEG_TXP5
97
PEG_TXN6
98
PEG_TXP7
99
NC
100
CFG6
106
PEG_TXN5
107
GND
108
PEG_TXN7
109
GND
110
BUF_PLT_RST-
116
GND
117
PEG_RXP_6
118
GND
119
PEG_A_CLK_P
120
GND
126
PEG_RXP_5
127
PEG_RXN_6
128
PEG_RXP_7
129
PEG_A_CLK_N
130
3V3_DU
136
PEG_RXN_5
137
GND
138
PEG_RXN_7
139
GND
140
3V3_DU
146
GND
147
PEG_TXP14
148
GND
149
PEG_B_CLK_P
150
GND
156
PEG_TXP13
157
PEG_TXN14
158
PEG_TXP15
159
PEG_B_CLK_N
160
GND
166
PEG_TXN13
167
GND
168
PEG_TXN15
169
GND
170
NC
176
GND
177
PEG_RXP_14
178
GND
179
NC
180
12V
186
PEG_RXP_13
187
PEG_RXN_14
188
PEG_RXP_15
189
NC
190
12V
196
PEG_RXN_13
197
GND
198
PEG_RXN_15
199
NC
200
12V
