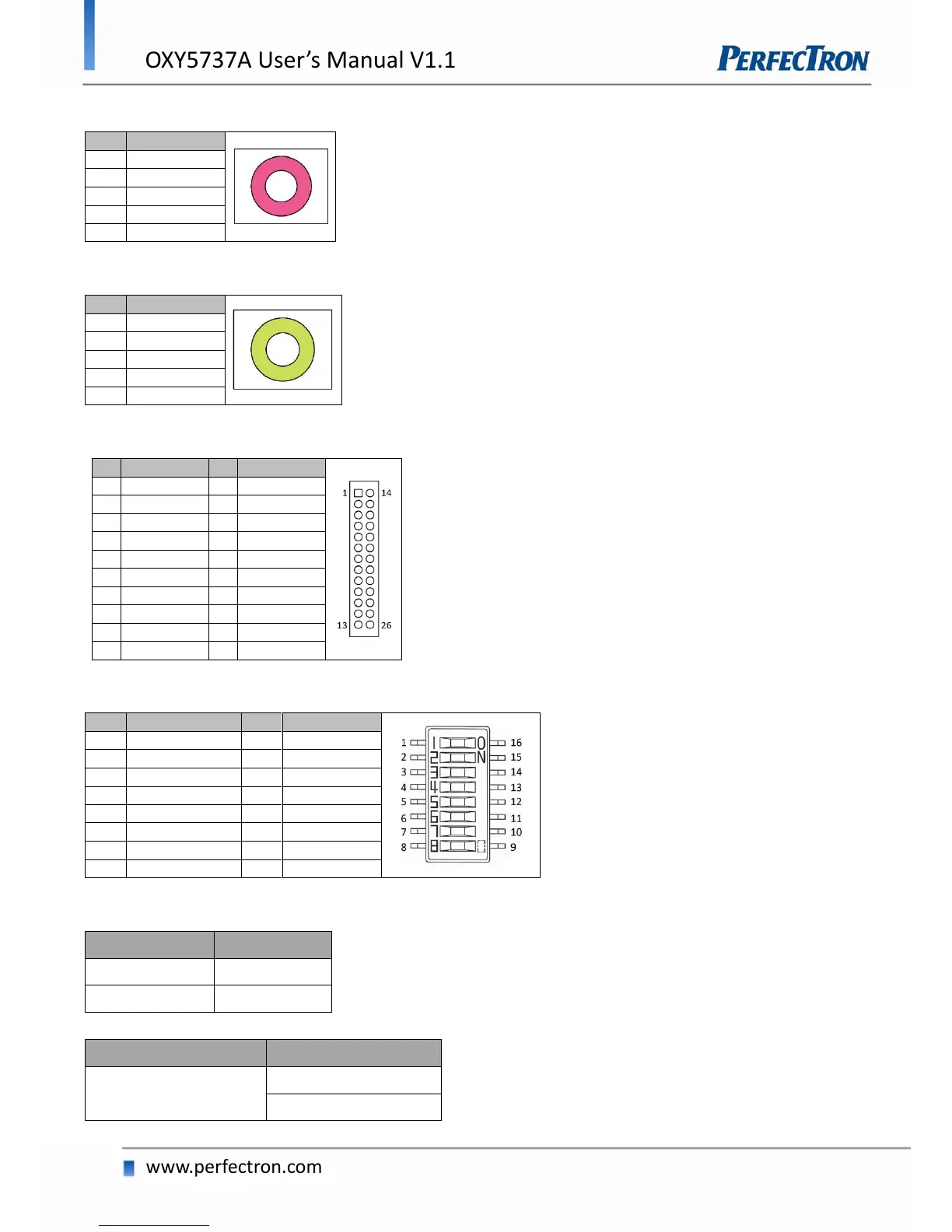

MIC 1: Audio Jacks Connector
PIN
DEFINITION
5
MIC_L
4
GND
3
NC
2
MIC1_R
1
GND
LOUT 1: Audio Jacks Connector
PIN
DEFINITION
5
FRONT_L
4
GND
3
NC
2
FRONT_R
1
GND
DIO1: Digital I/O Box Head
PIN
DEFINITION
PIN
DEFINITION
1
DIO0
2
DIO1
3
DIO2
4
DIO3
5
DIO4
6
DIO5
7
DIO6
8
DIO7
9
DIO8
10
DIO9
11
DIO10
12
DIO11
13
DIO12
14
DIO13
15
DIO14
16
DIO15
17
5VS
18
GND
19
5VS
20
GND
SW2: POWER On/Off Switch
PIN
DEFINITION
PIN
DEFINITION
1
AT/ATX
16
GND
2
DELAY_SETUP
15
GND
3
ON_TIME_0
14
GND
4
ON_TIME_1
13
GND
5
OFF_TIME_0
12
GND
6
OFF_TIME_1
11
GND
7
STACK0
10
GND
8
STACK1
9
GND
SW2: switch setting
Power on mode
PIN1
AT
switch to left
ATX
switch to right
PIN2
Delay on/off (AT mode)
switch to right: enable
switch to left: disable
