OXY5737A User’s Manual V1.1
www.perfectron.com

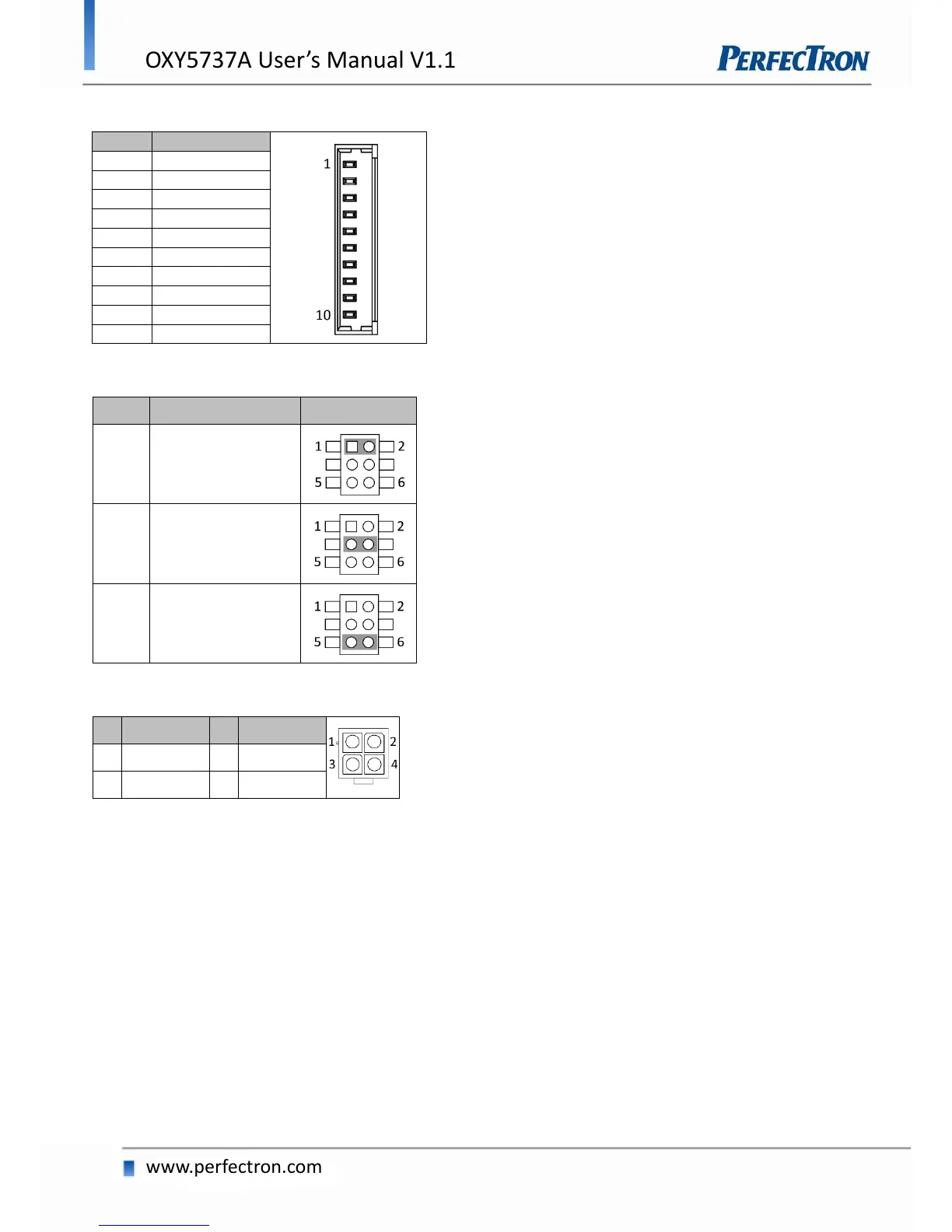

COM6: RS232 with 5V/12V selectable
PIN
DEFINITION
1
5VS
2
GND
3
COM6P9SEL
4
COM6_DTR-
5
COM6_CTS-
6
COM6_TXD
7
COM6_RTS-
8
COM6_RXD
9
COM6_DSR-
10
COM6_DCD-
JP16: COM6 +12V/+5V selection
Jumper
Function description
setting
1-2
COM6_RI-
3-4
5VS
5-6
12V
DC Jack
PIN
DEFINITION
PIN
DEFINITION
1
GND
2
GND
3
+VIN
4
+VIN
26
