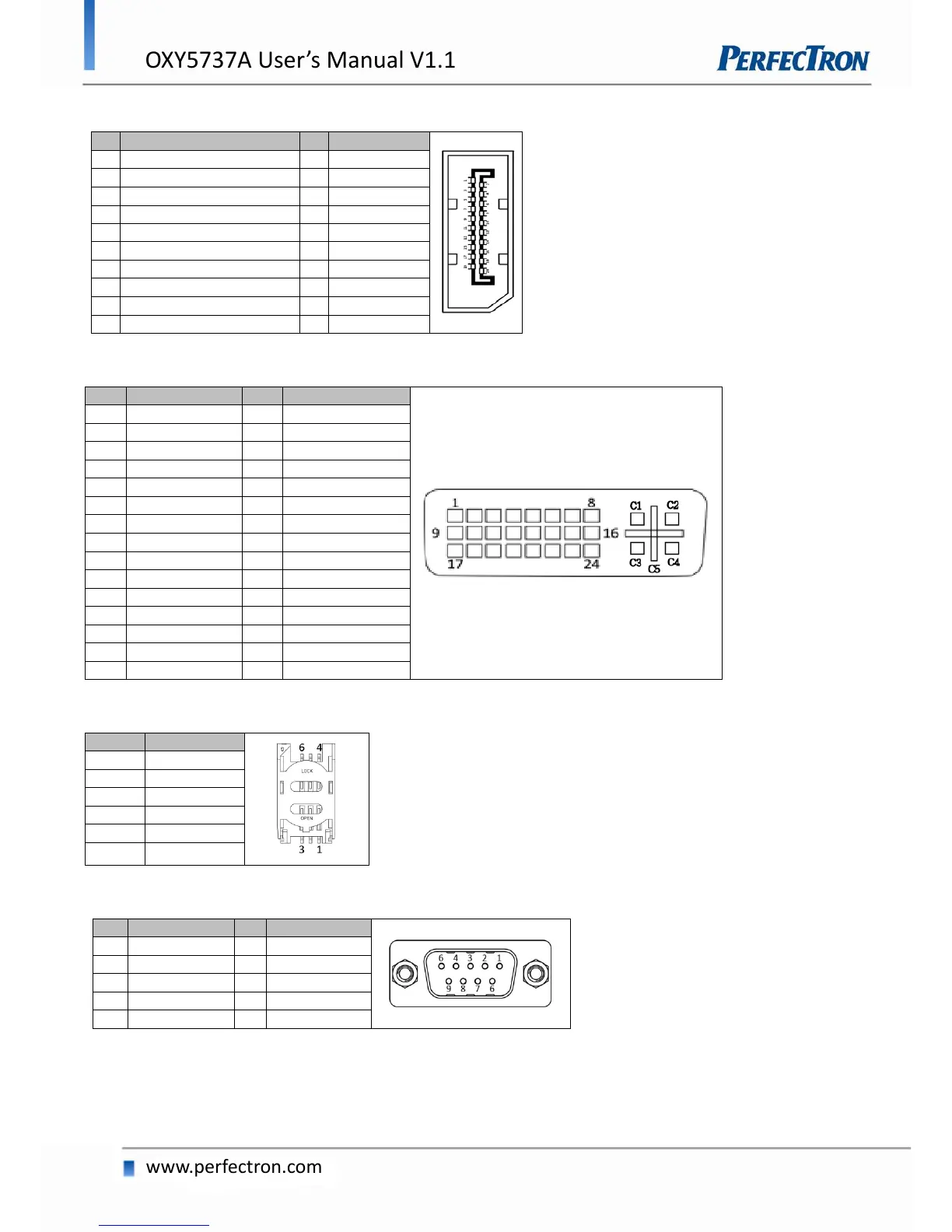

DP2: DISPLAY PORT
PIN
DEFINITION
PIN
DEFINITION
1
DPD_LANEP0
2
GND
3
DPD_LANEN0
4
DPD_LANEP1
5
GND
6
DPD_LANEN1
7
DPD_LANEP2
8
GND
9
DPD_LANEN2
10
DPD_LANEP3
11
GND
12
DPD_LANEN3
13
DDID_DDC_AUX_SEL
14
GND
15
DDID_DDCCLK_AUX_P
16
GND
17
DDID_DDCDATA_AUX_N
18
DPD_DET
19
GND
20
DPD_PWR
DVI: DVI-I
PIN
DEFINITION
PIN
DEFINITION
1
TMDS Data2-
13
NC
2
TMDS Data2+
14
+5V Power
3
GND
15
GND
4
NC
16
Hot Plug Detect
5
NC
17
TMDS Data0-
6
DDC Clock
18
TMDS Data0+
7
DDC Data
19
GND
8
Analog VSYNC
20
NC
9
TMDS Data1-
21
NC
10
TMDS Data1+
22
GND
11
GND
23
TMDS Clock+
12
NC
24
TMDS Clock-
C1
Analog Red
C2
Analog Green
C3
Analog Blue
C4
Analog HYNC
C5
Analog GND0
C6
Analog GND1
SIM_CARD1: SIM card socket
PIN
DEFINITION
1
VCC
2
RESET
3
CLOCK
4
GND
5
VPP
6
DATA
COM1: RS232/422/485 with 5V/12V selectable
PIN
DEFINITION
PIN
DEFINITION
1
DCD1#_OPTO
6
DSR1#_OPTO
2
RXD1_OPTO
7
RTS1#_OPTO
3
TDX1_OPTO
8
CTS1#_OPTO
4
DRT1#_OPTO
9
COM1P9SEL
5
GND
10
GND
