OXY5737A User’s Manual V1.1
www.perfectron.com

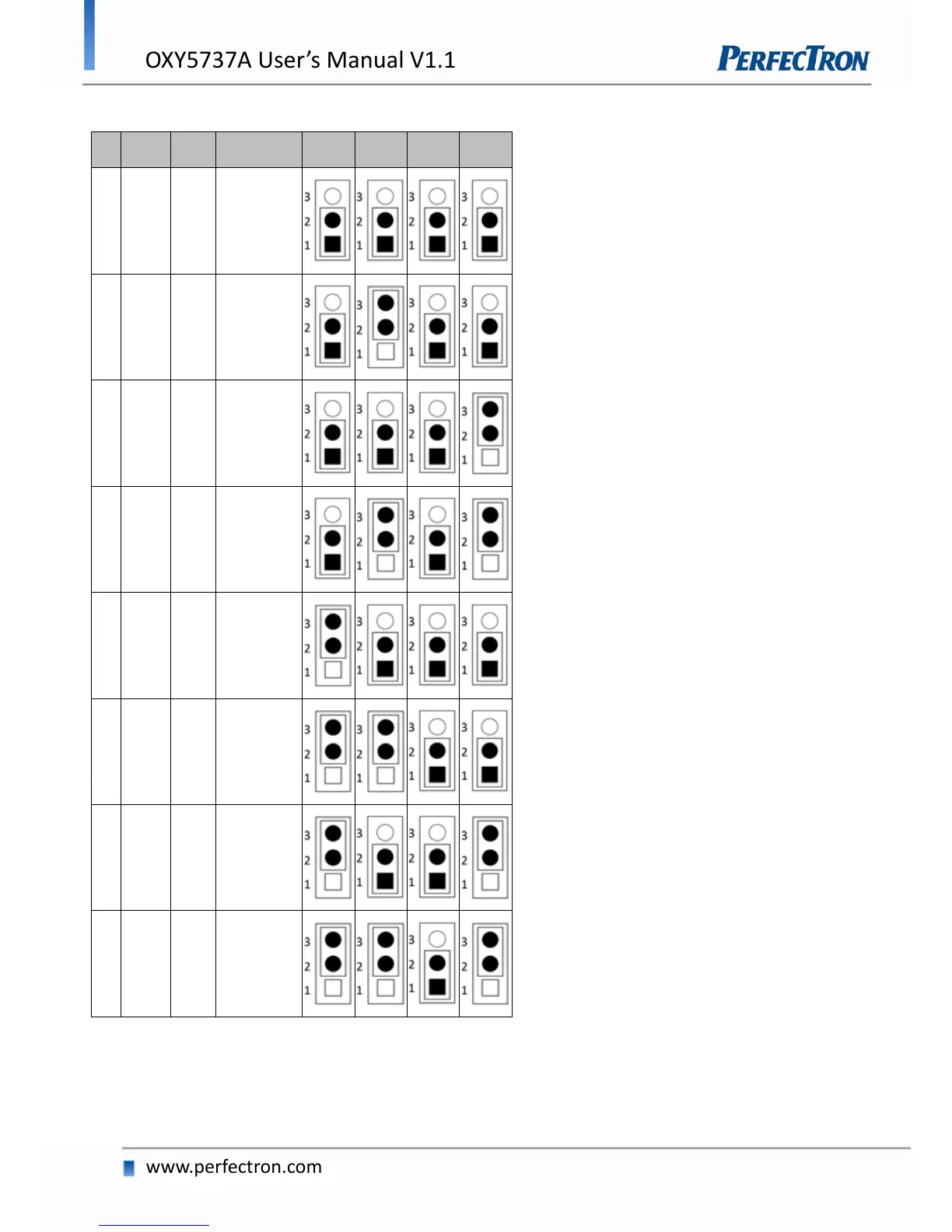

JV8,9,10,11: LVDS Panel selection jumper setting
No.
HA
(Pixel)
VA
(Line)
Color depth
JV10
JV8
JV11
JV9
1
800
600
18-bit
2
1024
768
24-bit
3
1024
768
18-bit
4
1280
800
18-bit
5
1280
1024
24-bit
6
1366
768
24-bit
7
1440
900
24-bit
8
1920
1080
24-bit
28
