OXY5737A User’s Manual V1.1
www.perfectron.com

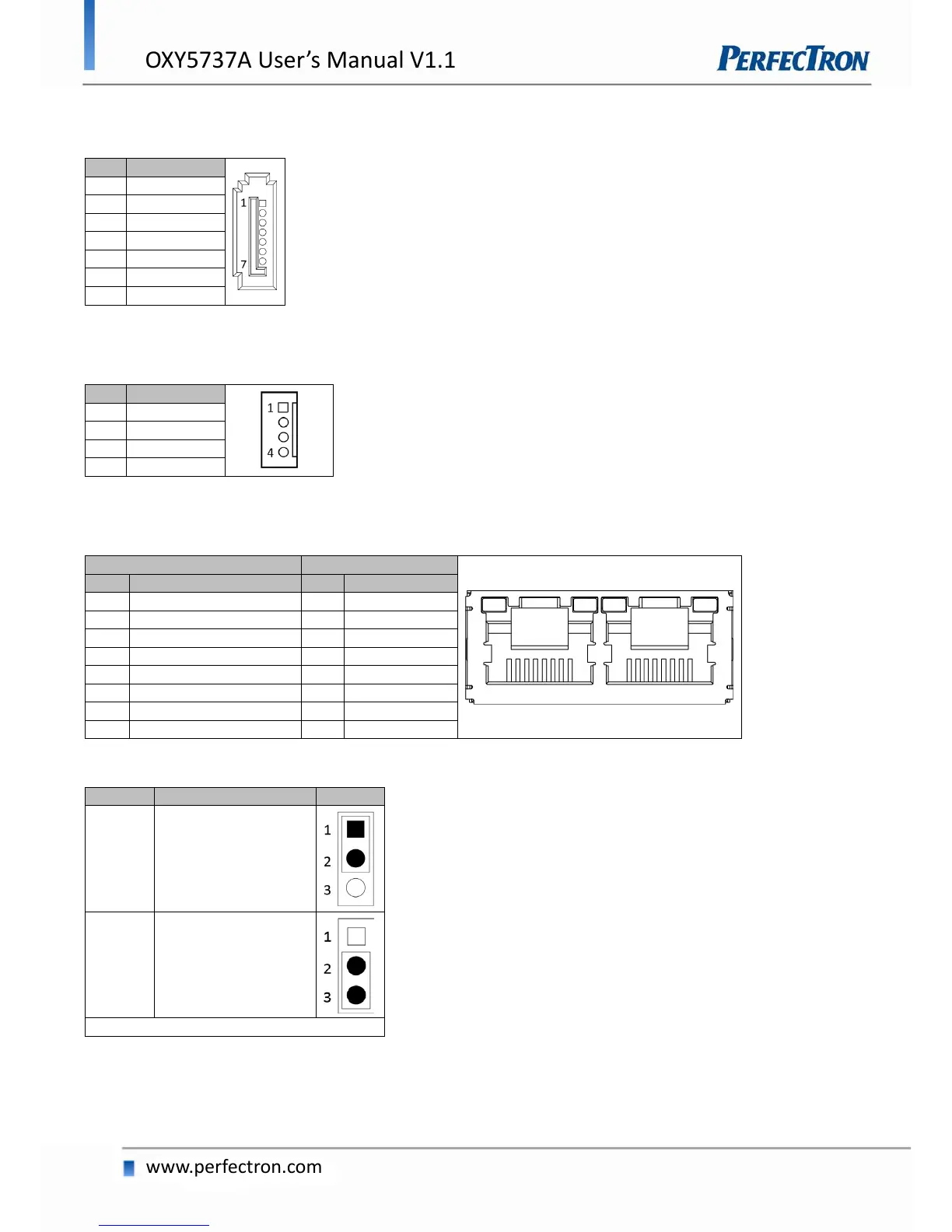

SATA-CON CN3: Serial ATA Connectors
SATA-CON CN5: Serial ATA Connectors
PIN
DEFINITION
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
PWR_S4P_H CN4: SATA POWER
PWR_S4P_H CN6: SATA POWER
PIN
DEFINITION
1
12V
2
GND
3
GND
4
5VS
LAN1: Intel I218LM
LAN2: Intel I210IT
LAN1
LAN2
PIN
DEFINITION
PIN
DEFINITION
A1
I218_LAN1_MDI0_DP
B1
LAN2_MDIP0
A2
I218_LAN1_MDI0_DN
B2
LAN2_MDIN0
A3
I218_LAN1_MDI1_DP
B3
LAN2_MDIP1
A4
I218_LAN1_MDI1_DN
B4
LAN2_MDIN1
A7
I218_LAN1_MDI2_DP
B7
LAN2_MDIP2
A8
I218_LAN1_MDI2_DN
B8
LAN2_MDIN2
A9
I218_LAN1_MDI3_DP
B9
LAN2_MDIP3
A10
I218_LAN1_MDI3_DN
B10
LAN2_MDIN3
LAN_SEL3: StackPC/I218 selection
Jumper
Function description
Setting
1-2
STACK PC
2-3
I218
Default setting: 2-3
