CPU DTS
Disabled: ACPI thermal management uses EC reported temperature value.
Enabled: ACPI thermal management uses DTS SMM mechanism to obtain CPU temperature values.
Out of Spec: ACPI Thermal Management uses EC reported temperature values and DTS SMM is used to
handle Out of spec.
Debug interface
Enable/Disable CPU debug feature.
Debug interface lock
Lock CPU debug interface setting.
IOUT OFFSET Sign
0 positive offset. 1 negative offset.
IOUT OFFSET
VR IOUT OFFSET configuration 0~625.
IOUT SLOPE
VR IOUT SLOPE configuration range 0~1023.

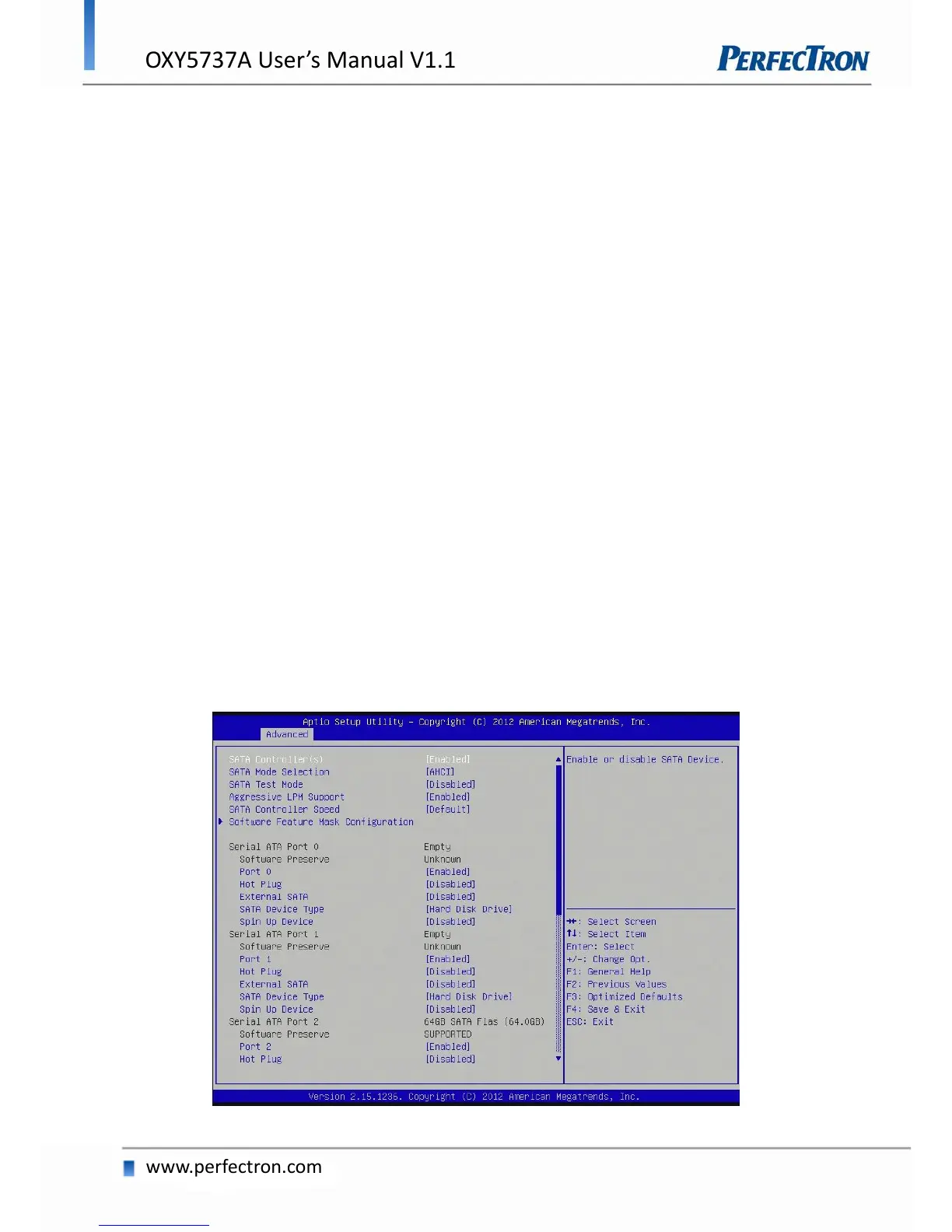

4.4.4 SATA Configuration
This section is used to configure the SATA drives.
