JV5: COM2 RS485 autoflow setting
Jumper
Function description
Setting
1-2
Auto flow control
disable
2-3
Auto flow control
enable
Default setting: 1-2
JP13: COM2 5V/12V selection
PIN
DEFINITION
PIN
DEFINITION
1
RI2#_OPTO
2
COM2P9SEL
3
5V
4
COM2P9SEL
5
12V
6
COM2P9SEL

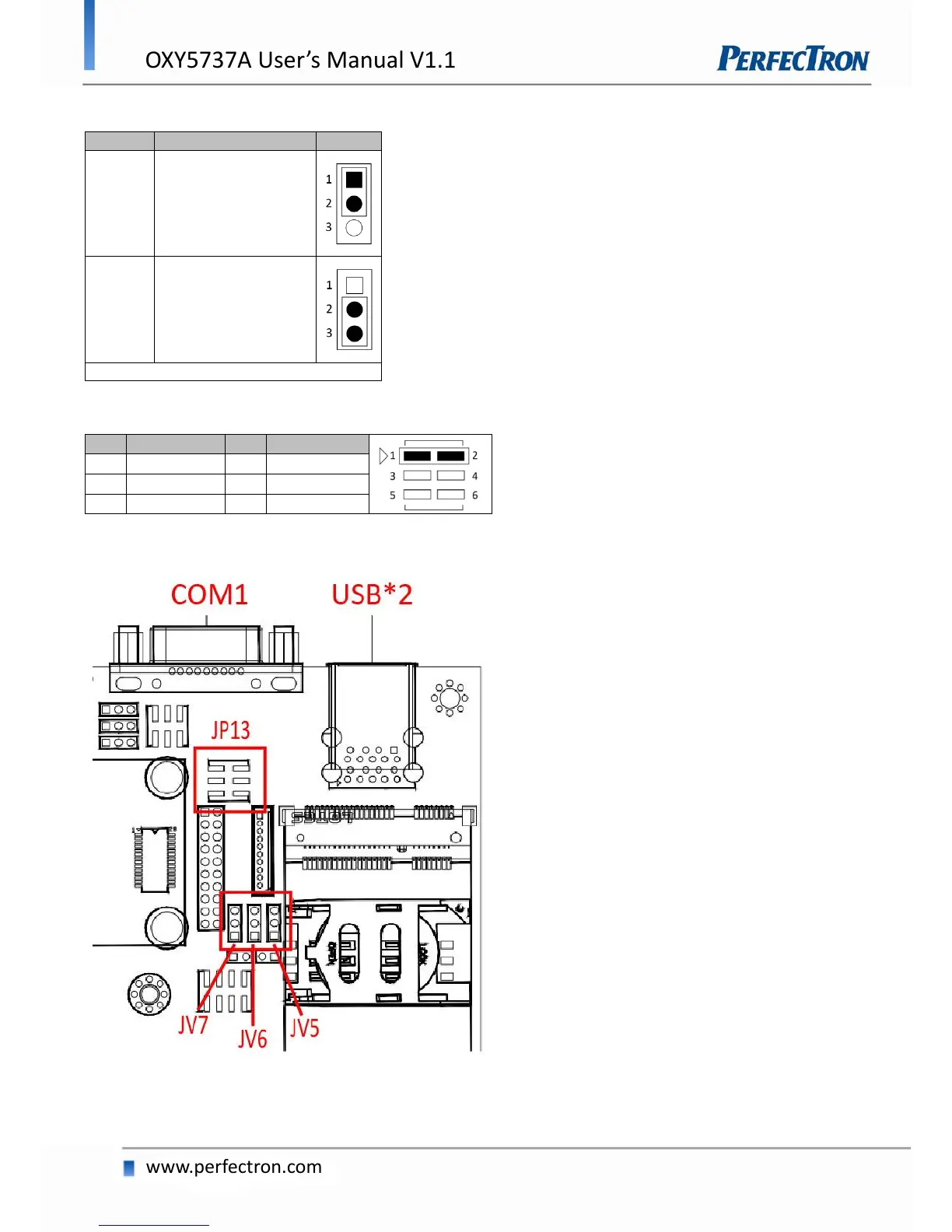

JV5,6,7 and JP13 location
