Peri RCS P - Bracing the Corner Elements; Components; Assembly

47.6
123
24 + 26
2
110
D1 Suspension and Anchoring
Bracing the Corner Elements
Install temporary bracing in the case of
expected wind speeds of more than
100 km/h.
Components
2 Climbing Rail RCS
24 Fitting Pin Ø 21 x 120
26 Cotter Pin 4/1
47.6 Tie Rod DW 15, Special Length
117 Heavy-Duty Dowel Ø 22
118 Heavy-Duty Dowel Ø 30
119 Hex. Nut DW 15 SW 30/50
122 Bracing Shoe RCS DW 15
123 Eye Nut RCS DW 15
125 Articulated Spanner RCS DW 15
Assembly:
1. Turn Tie Rod (47.6) in the eye nut
(123) (Fig. D1.09a)
2. Connect Tie Rod to Articulated Span-
ner (125) by means of nut DW 15
(119).
3. Mount eye nut (123) in the Climbing
Rail RCS (2) using the fitting pin
Ø21 x 120 (24) and cotter pin (26)
whilst standing on the platform.
4. Connect Articulated Spanner (125) to
the Bracing Shoe RCS DW15 (122)
with the fitting pin. (Fig. D1.09b)

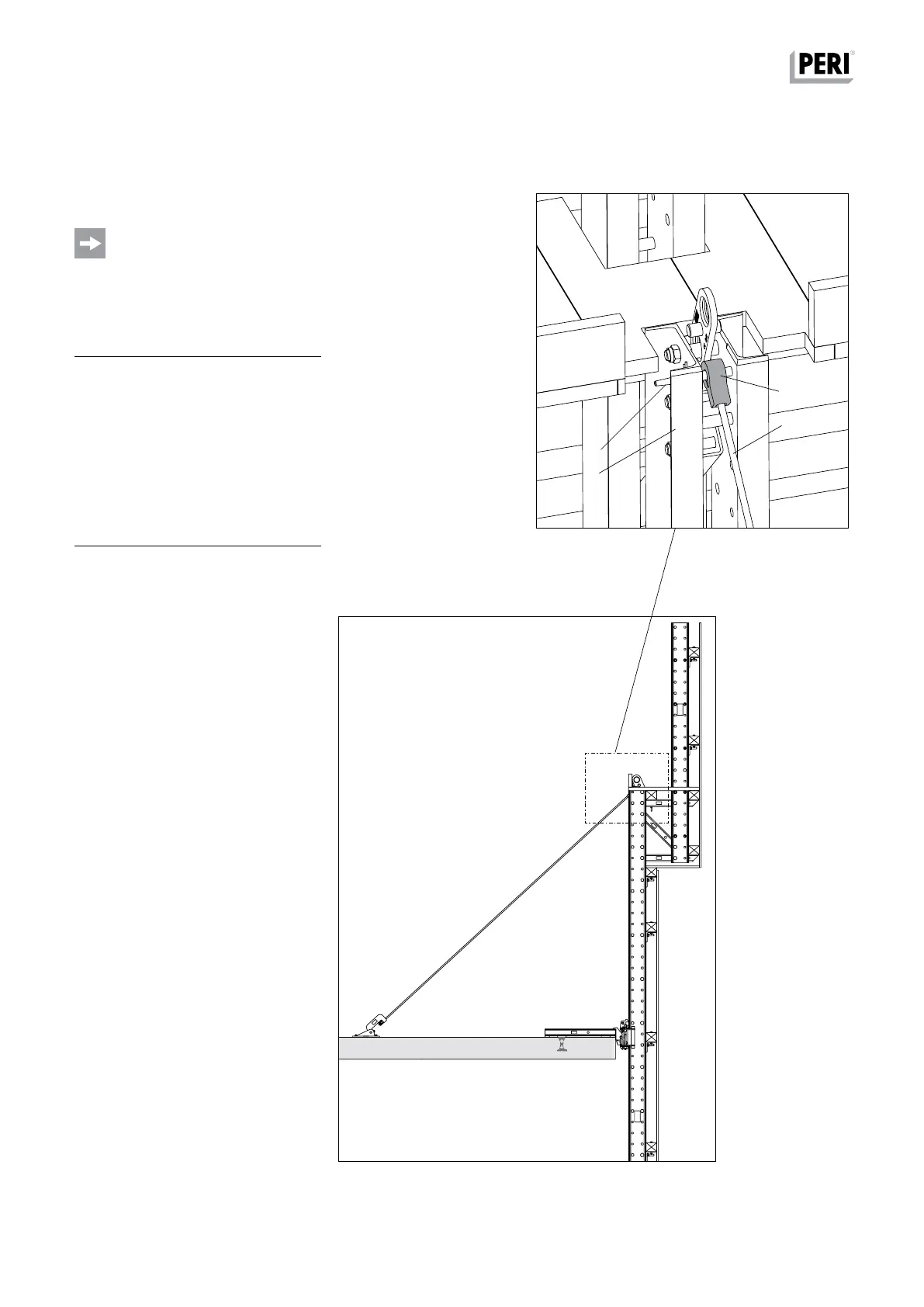

Fig. D1.09
Fig. D1.09a
