Assembly of the Bracket
Framework
– Assembly is explained using Version
2. The assembly of the other ver-
sions is analogous.
– The respective dimensions for the
assembly are specified in the
site-specific assembly drawings.
Mounting the Climbing Rails
Components
2 Climbing Rail RCS
13 Timber Fixation RCS 12/20
14 Enclosure Beam (timber)
Assembly
1. Prepare two Climbing Rails (2), with
Spacers Ø 26 mm above on timbers
and align them according to the
planned dimensions between axes.
2. Mount several Enclosure Beams (14)
with Timber Fixations (13) according
to plan. See Section "C3 Assembly of
the Enclosure" on page 84.
J The axial dimension of the Climb-
ing Rails is fixed.
J The Enclosure Beam also acts si-
multaneously as anti-tilt protection
for bracket units.
(Fig. C1.06 + C1.06a)
C1 Pre-Assembly of Brackets

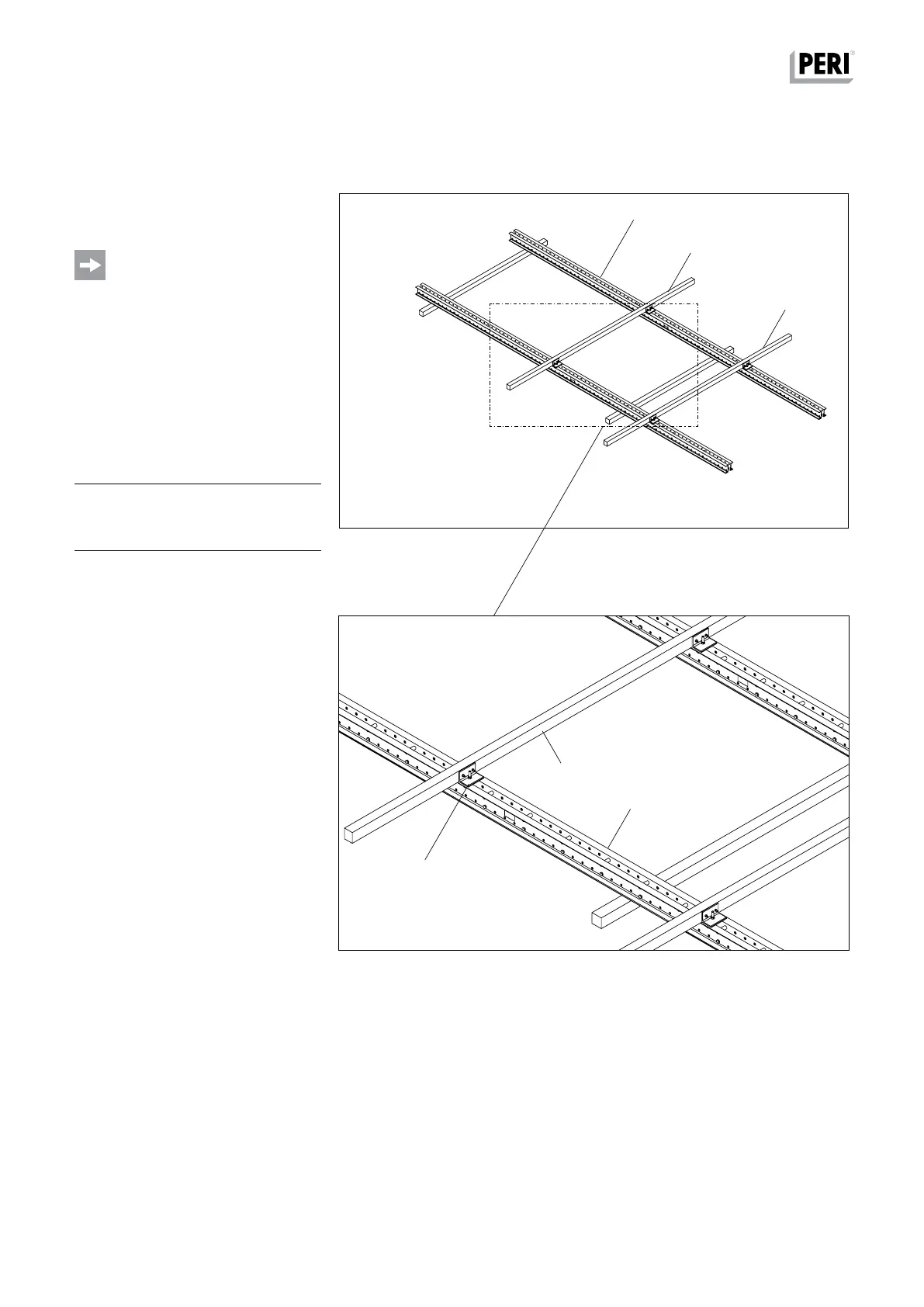

Fig. C1.06
Fig. C1.06a
