B2 Planning the Units

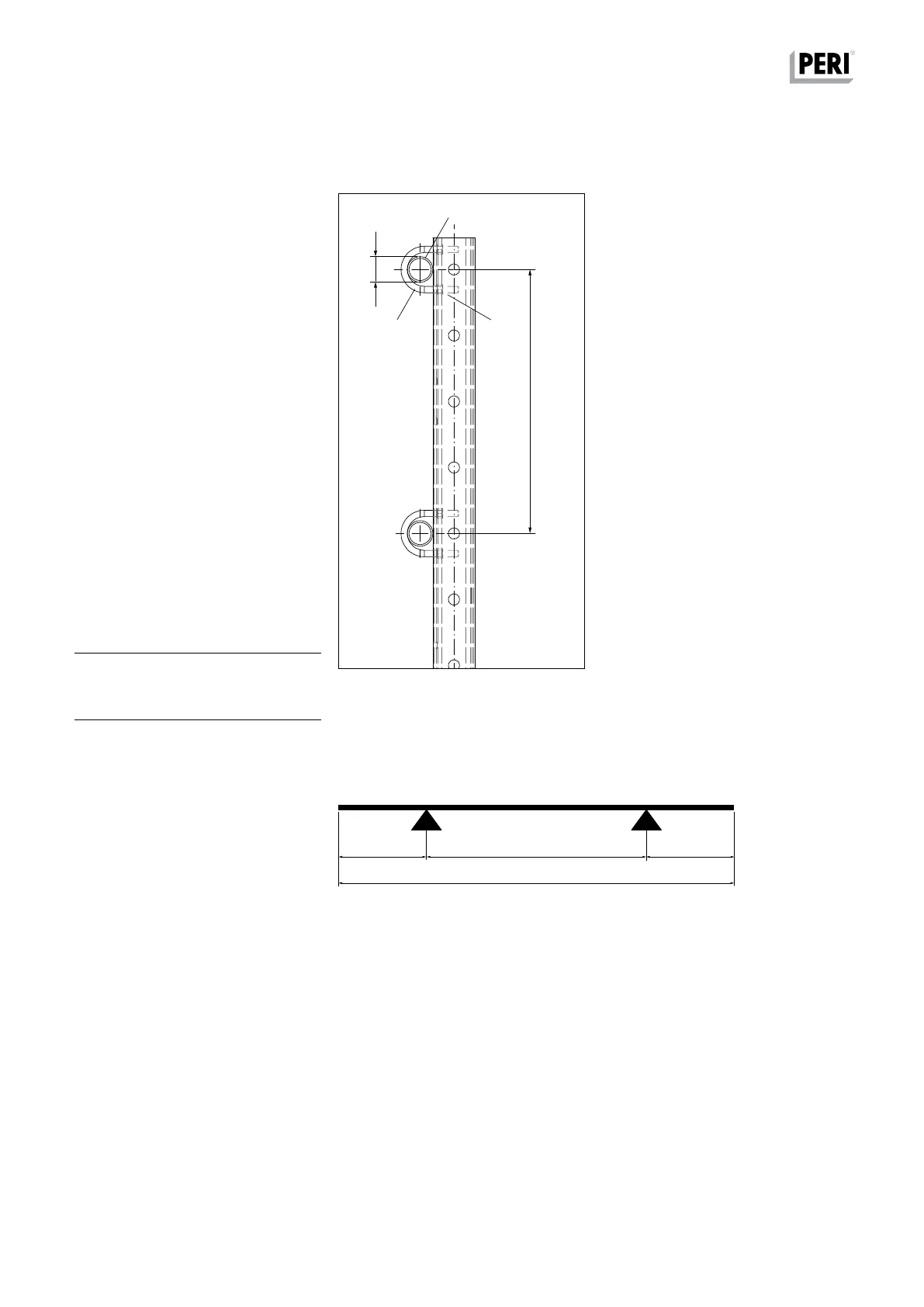

Fig. B2.11
Fig. B2.12
Guardrails with Scaffold Tubes
Requirements:
Steel Scaffold Tubes (80) minimum
quality St37-2.
Dimensions Ø × t = 48.3 × 3.2 or 60.3
× 4.5 mm
Mounting:
Clamp A64 DIN 3570 (81)
Hex. Nut ISO 4032 M12-8 (82) (2x)
Mount Scaffold Tube on inner side,
with netting or tarpaulin also on the
outer side with spacing of a = 50 cm.
Max. cantilever d ≤ 0.5 · c
(Fig. B2.11)
At the ends and in the middle of the
span the Scaffold Tubes are to be
connected to each other using vertical
Scaffold Tubes or supported to prevent
any overloading.
Components
80 Steel Scaffold Tube Ø 48.3 x 3.2
81 Clamp A64 DIN 3570
82 Hex. Nut ISO 4032 M12-8
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
