Peri RCS P - Protection against Falling Objects; Securing the slab edge

14.1
41
14
42
43
139 139139 138 138138
13780
20
20≤120≤120
F
46
B2 Planning the Units
Protection against Falling
Objects
The enclosure and platforms should
completely enclose the working area.
Openings > 20 mm are to be covered
in a non-displaceable manner or filled
with installation foam.
– Setting down and storage of materials
and tools on the coverings is prohib-
ited.
– Foldable covers are not decking
surfaces and are planned as areas
not to be walked on or subjected
toloads.
– Take into account the fibre direction
(F) of the surface layer! (Fig. B2.06a)
Securing the slab edge
In the area of the lower storey slab,
mount multi-layer plywood sheeting
(41) on the Enclosure Beam (14) by
means of hinges (42).
Screw on chamfered timber (14.1) to
support the cover flap.
Alternatively, mount Scaffold Tube (80)
on the Climbing Rail by means of the
Scaffold Tube Connector (137).
Mount Foldable Covers (41) using Flap
Hinges (138) and Flap Safety Plates (139).
Cover any remaining gaps in the area
of the Slab Shoe with Cover RCS
70x70 (43).
Components
14 Enclosure Beam (timber)
41 Foldable Cover (multi-layer ply-
wood sheeting)
42 Hinge DIN 7957-200-ST
43 Cover RCS 70 x 70
80 Steel Scaffold Tube Ø 48.3 x 3.2
137 Scaffold Tube Connector Ø RCS
138 Flap Hinge LPS D48/M10
139 Flap Safety Plate LPS D=48 RCS

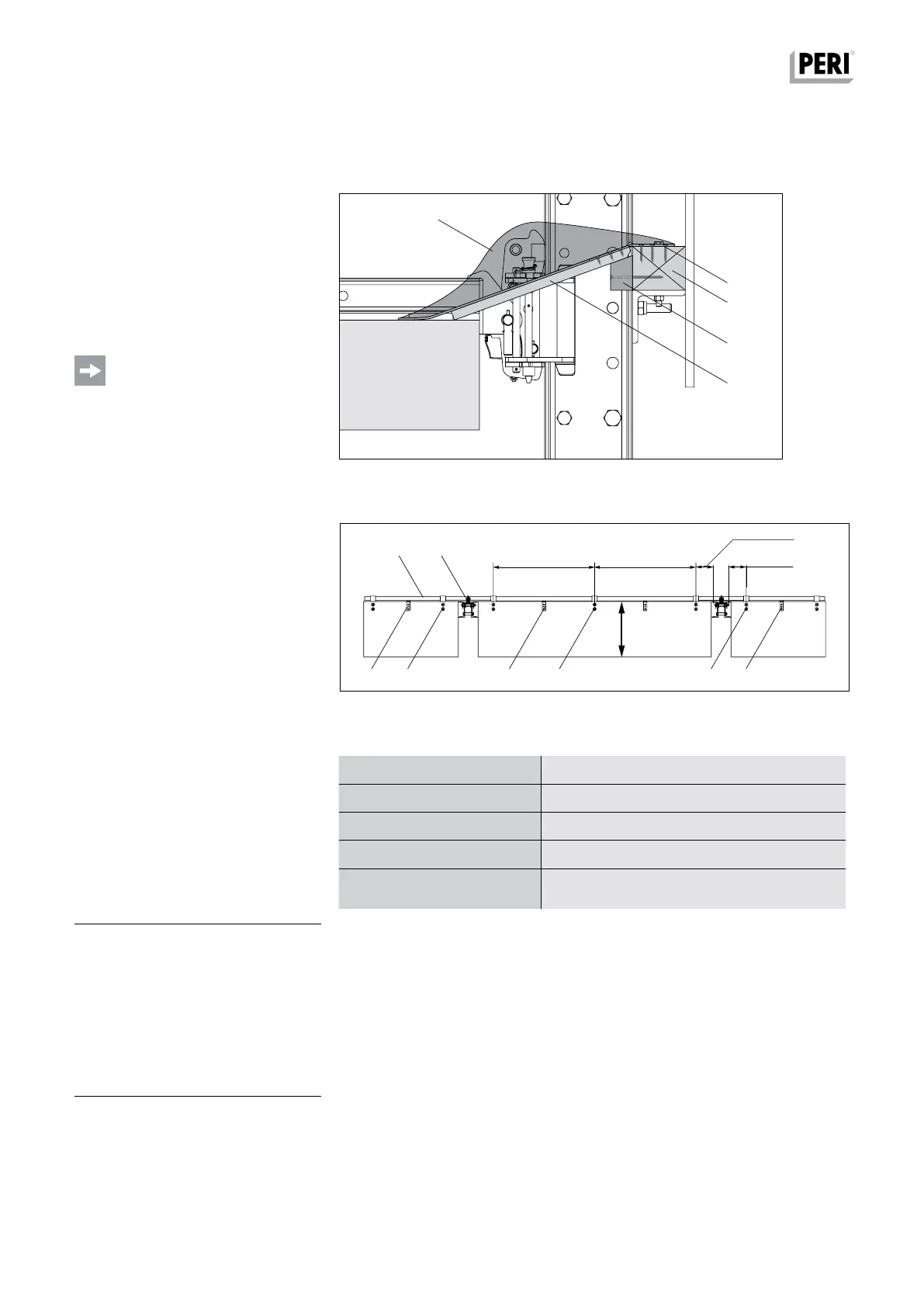

Fig. B2.06
Fig. B2.06a
Flap material:
Untreated plywood ≥ 20 mm
Permissible inclination: 10° – 30°
Permissible depth: ≤ 0.75 m
Hinge spacing: ≤ 1.20 m, minimum 2 hinges per flap
Hinge spacing to
Climbing Rail (2):
≤ 20 cm
Table B2.02
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
