Peri RCS P - Horizontal Support

79
78
121121 120
120
47
41

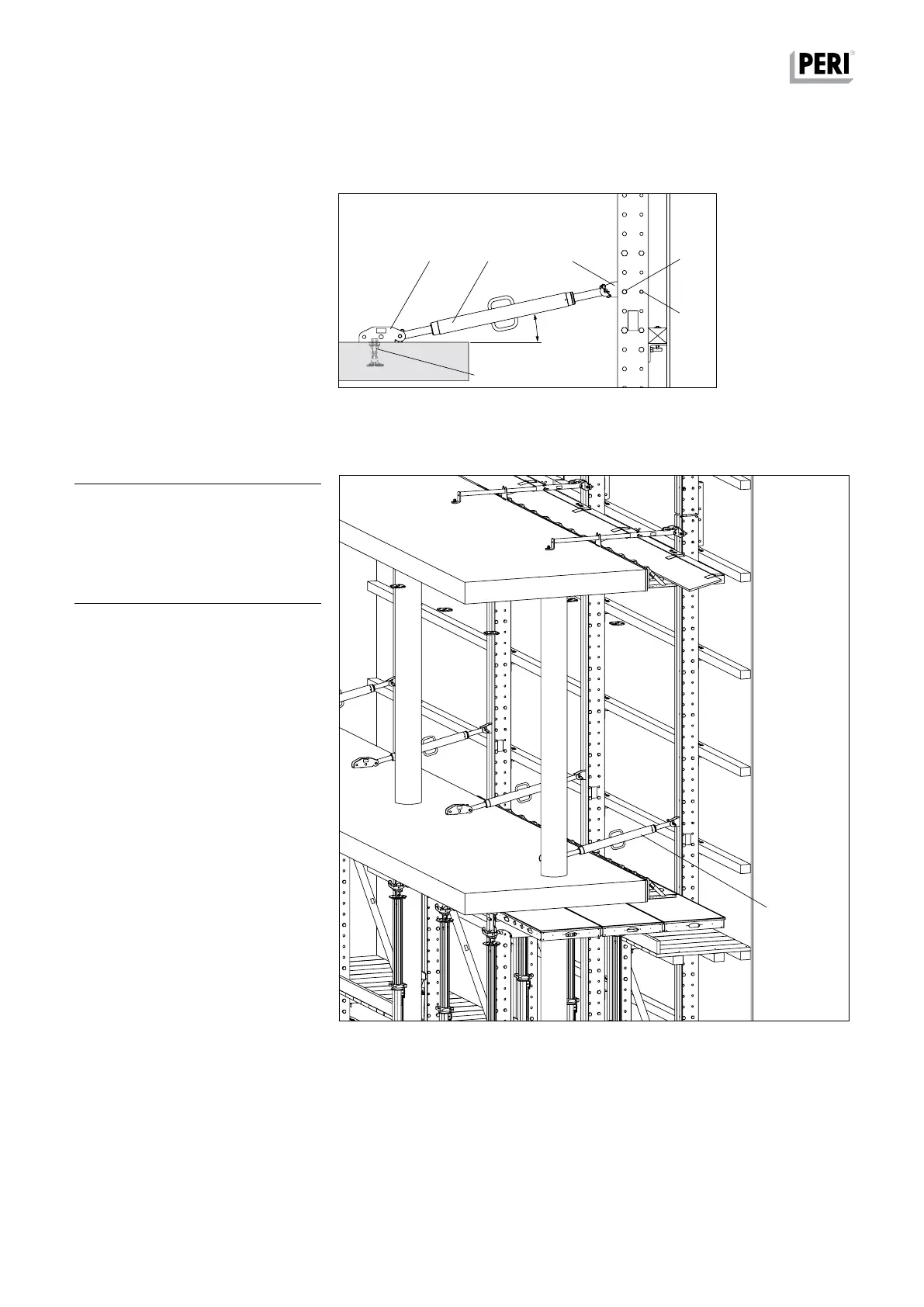

B1 Planning the Supporting Structure
Horizontal Support
The Climbing Protection Panel Version
3 requires additional horizontal support
due to the enclosure spread over 2 sto-
reys.
Mount the Heavy-Duty Spindle on the
Enclosure Post with one Fitting Pin
Ø21 mm and Fitting Pin Ø 26 mm
respectively. Use the anchoring on the
slab which will subsequently carry the
Slab Shoe.
Permissible angle of inclination α = 10 ± 5°
Components
78 Fitting Pin Ø 21 mm
79 Fitting Pin Ø 26 mm
120 Heavy-Duty Spindle SLS 100/180
121 Spindle Shoe SLS/RCS M24
45.2 Bolt ISO 4014 M24 x 70-10.9
47 Anchoring
Fig. B1.21
Fig. B1.22
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
