46
45
53
B3 Corner Platforms

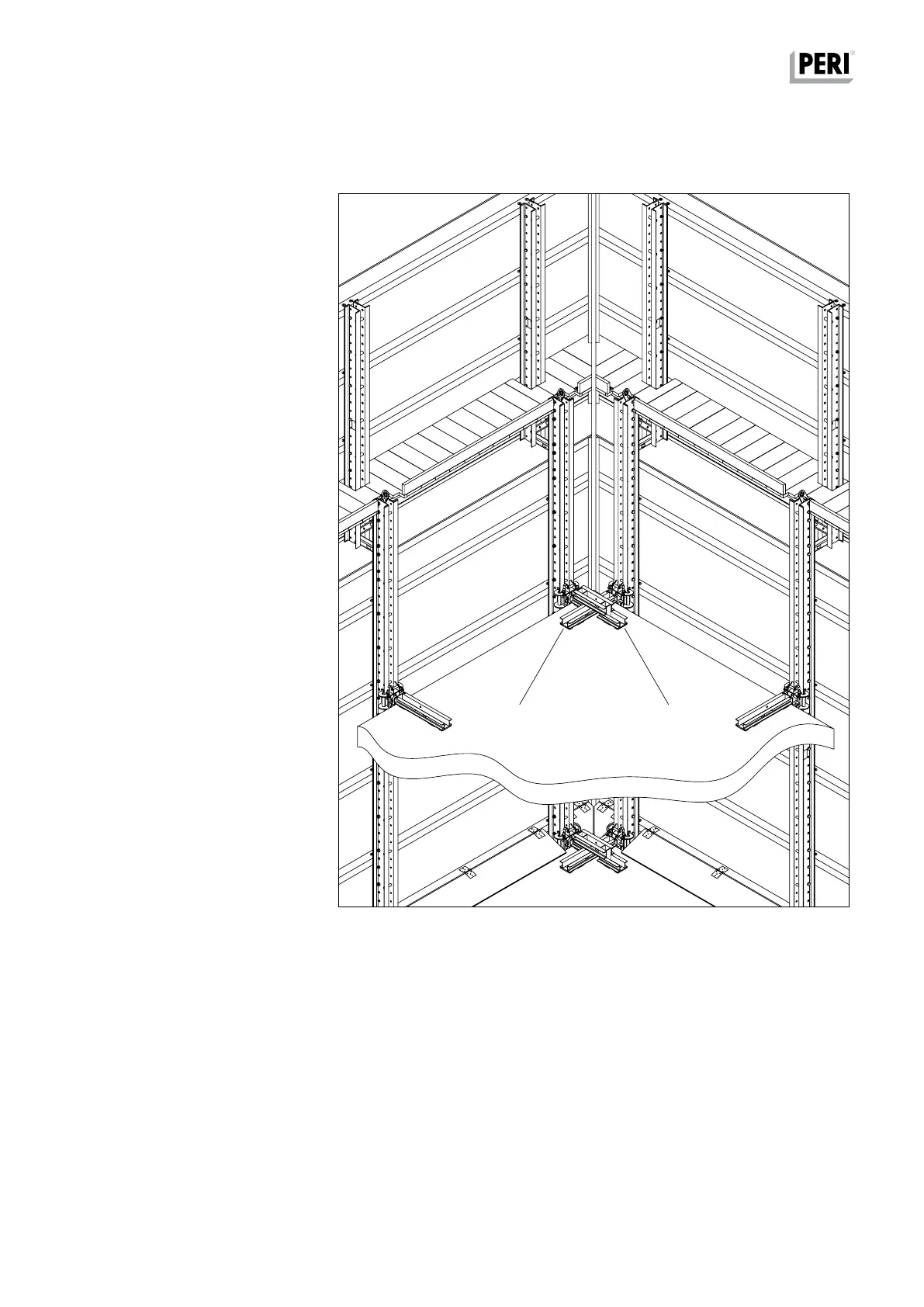

Fig. B3.01
External Corners
Mitred corner element
Standard corner elements e.g. for
internal building columns with an edge
distance of x ≥ 400 mm. (Fig. B3.02)
At the corner of the building: a cross-
wise arrangement of the Slab Shoe
RCS (45) and Slab Shoe Corner RCS
(46). (Fig. B3.01)
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
