C3 Assembly of the Enclosure

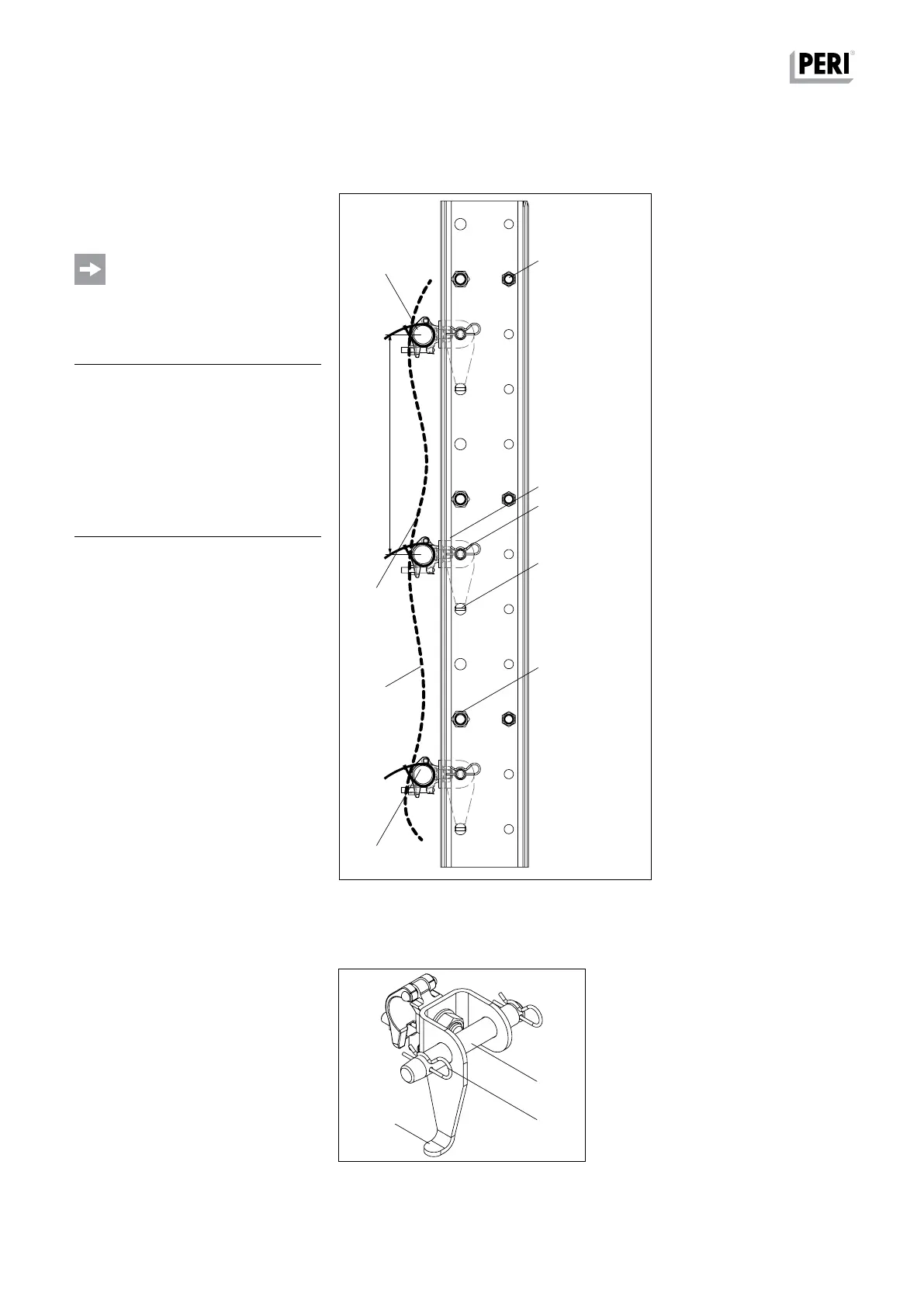

Fig. C3.09
Fig. C3.09a
Scaffold Tubes with Nets or
Tarpaulins
Mesh size for enclosure nets ≤ 20 mm.
Scaffold tube spacing a = 50 cm.
Components
1 Enclosure Post
3 Spacer M20-82
4 Spacer M24-82
80 Steel Scaffold Tube Ø 48.3 x 3.2
80.1 Scaffold Tube Steel Ø 60.3 x 3.2
83.1 Swivel Coupling DK 60/48
88 Safety Net
88.1 Cable Tie, UV-resistant.
137 Scaffold Tube Connector Ø RCS
Mounting Scaffold Tube Ø 48 mm
1. Remove cotter pins and bolts from
Scaffold Tube Connector (137).
2. Insert Scaffold Tube Connector with
retaining lug (137.1) into the drilled
hole of the Enclosure Post (1).
3. Insert bolts (137.2) through the holes
in the Enclosure Post and Scaffold-
ing Tube Connector and secure with
cotter pins (137.3).
4. Mount Scaffold Tube Ø 48 mm (80)
in the tube coupling. Tighten coupling
nut with 50 Nm.
(Fig. C3.09)
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
